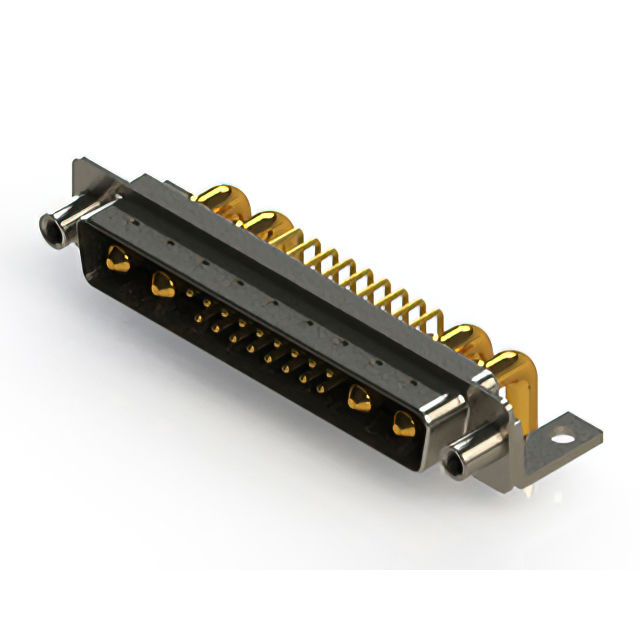

CONN D-SUB PLUG 21POS R/A SLDR

629-21W4240-4NE

Active

EDAC Inc.

CONN D-SUB PLUG 21POS R/A SLDR

Description Specifications Series Pricing CAD Documents

Description

General part information

629-21W Series

21 (17 + 4 Power) Position D-Sub, Combo Plug, Male Pins Connector

Technical Specifications

Parameters and characteristics for this part

Specification	629-21W4240-4NE

Backset Spacing	0.37 in
Color	Black
Connector Layout	21WA4, C, DC
Connector Style	Combo, D-Sub
Connector Type	Male Pins, Plug
Contact Finish	Gold
Contact Finish Thickness	0
Contact Finish Thickness	Flash
Contact Finish Thickness (string set options)	Flash
Contact Material	Copper Alloy
Contact Type	Signal, Power
Current Rating Options	40A, 5A
Dielectric Material	Polyester Thermoplastic
Features	Grounding Indents, Mounting Brackets
Finish	Nickel Plated
Flange Feature	Mating Side (M3)
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole, Right Angle
Number of Positions (Normal)	17
Number of Positions (Power)	4
Number of Positions (Total)	21
Number of Rows	2
Operating Temperature (Max)	125 °C
Operating Temperature (Min)	-55 °C
Shell Material	Steel
Shell Size	4
Termination	Solder
Voltage Rating	125 V

629-21W Series

...

Part	Number of Positions (Power)	Number of Positions (Normal)	Number of Positions (Total)	Number of Rows	Mounting Type	Contact Finish Thickness	Contact Finish Thickness (string set options)	Contact Finish Thickness	Connector Type	Connector Style	Contact Type	Current Rating Options	Backset Spacing	Termination	Contact Finish	Flange Feature	Shell Material	Finish	Shell Size	Connector Layout	Material Flammability Rating	Features	Operating Temperature (Max)	Operating Temperature (Min)	Color	Dielectric Material	Voltage Rating	Contact Material	Position Types	Number of Positions (Standard)	Number of Positions (Special)	Part Code
EDAC Inc. 629-21W4240-4NE	4	17	21	2	Right Angle Through Hole	0	Flash	Flash	Male Pins Plug	Combo D-Sub	Power Signal	40A 5A	0.37 in	Solder	Gold	Mating Side (M3)	Steel	Nickel Plated	4	21WA4 C DC	UL94 V-0	Grounding Indents Mounting Brackets	125 °C	-55 °C	Black	Polyester Thermoplastic	125 V	Copper Alloy
EDAC Inc. 629-21W4240-3N1	4	17	21	2	Right Angle Through Hole	0	Flash	Flash	Male Pins Plug	Combo D-Sub	Power Signal	30A 5A	0.37 in	Solder	Gold	Housing Shell (Unthreaded)	Steel	Nickel Plated	4	21WA4 C DC	UL94 V-0	Grounding Indents Shielded	125 °C	-55 °C	Black	Polyester Thermoplastic	125 V	Copper Alloy
EDAC Inc. 629-21W4650-2NC	4	17	21	2	Right Angle Through Hole	30 µin			Male Pins Plug	Combo D-Sub	Power Signal	20A 5A	0.37 in	Solder	Gold	Housing Shell (M3)	Steel	Nickel Plated	4	21WA4 C DC	UL94 V-0	Grounding Indents Mounting Brackets	125 °C	-55 °C	Black	Polyester Thermoplastic	125 V	Copper Alloy
EDAC Inc. 629-21W1640-7N4			21	2	Right Angle Through Hole	30 µin			Male Pins Plug	Combo D-Sub	Coax Signal		0.37 in	Solder	Gold	Housing Shell (4-40)	Steel	Nickel Plated	3	B DB	UL94 V-0	Grounding Indents Mounting Brackets	125 °C	-55 °C	Black	Polyester Thermoplastic	125 V	Copper Alloy	Coax	20	1	21W1
EDAC Inc. 629-21W4240-3NA	4	17	21	2	Right Angle Through Hole	0	Flash	Flash	Male Pins Plug	Combo D-Sub	Power Signal	30A 5A	0.37 in	Solder	Gold	Board Side (M3)	Steel	Nickel Plated	4	21WA4 C DC	UL94 V-0	Grounding Indents	125 °C	-55 °C	Black	Polyester Thermoplastic	125 V	Copper Alloy
EDAC Inc. 629-21W4650-3TB	4	17	21	2	Right Angle Through Hole	30 µin			Male Pins Plug	Combo D-Sub	Power Signal	30A 5A	0.37 in	Solder	Gold	Housing Shell (M3)	Steel	Tin Plated	4	21WA4 C DC	UL94 V-0	Board Lock Grounding Indents Mounting Brackets	125 °C	-55 °C	Black	Polyester Thermoplastic	125 V	Copper Alloy
EDAC Inc. 629-21W4240-2T5	4	17	21	2	Right Angle Through Hole	0	Flash	Flash	Male Pins Plug	Combo D-Sub	Power Signal	20A 5A	0.37 in	Solder	Gold	Mating Side (4-40)	Steel	Tin Plated	4	21WA4 C DC	UL94 V-0	Board Lock Grounding Indents Mounting Brackets	125 °C	-55 °C	Black	Polyester Thermoplastic	125 V	Copper Alloy
EDAC Inc. 629-21W1650-1N3	1	20	21	2	Right Angle Through Hole	30 µin			Male Pins Plug	Combo D-Sub	Power Signal	10A 5A	0.37 in	Solder	Gold	Housing Shell (4-40)	Steel	Nickel Plated	3	B DB	UL94 V-0	Board Lock Grounding Indents Mounting Brackets	125 °C	-55 °C	Black	Polyester Thermoplastic	125 V	Copper Alloy				21W1
EDAC Inc. 629-21W1650-1N5	1	20	21	2	Right Angle Through Hole	30 µin			Male Pins Plug	Combo D-Sub	Power Signal	10A 5A	0.37 in	Solder	Gold	Mating Side (4-40)	Steel	Nickel Plated	3	B DB	UL94 V-0	Board Lock Grounding Indents Mounting Brackets	125 °C	-55 °C	Black	Polyester Thermoplastic	125 V	Copper Alloy				21W1
EDAC Inc. 629-21W1640-1TB	1	20	21	2	Right Angle Through Hole	30 µin			Male Pins Plug	Combo D-Sub	Power Signal	10A 5A	0.37 in	Solder	Gold	Housing Shell (M3)	Steel	Tin Plated	3	B DB	UL94 V-0	Board Lock Grounding Indents Mounting Brackets	125 °C	-55 °C	Black	Polyester Thermoplastic	125 V	Copper Alloy				21W1
