629-21W4650-2NC

Active

EDAC Inc.

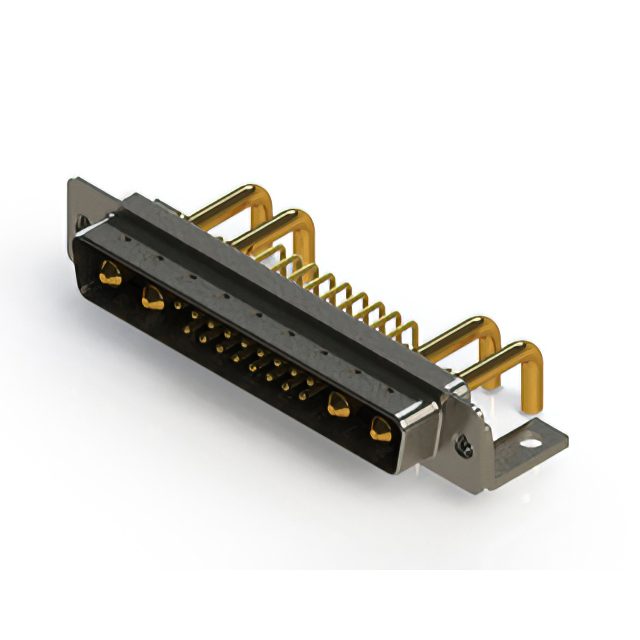

CONN D-SUB PLUG 21POS R/A SLDR

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

629-21W4650-2NC

Active

EDAC Inc.

CONN D-SUB PLUG 21POS R/A SLDR

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	629-21W4650-2NC

Backset Spacing	9.4 mm
Backset Spacing	0.37 in
Color	Black
Connector Style	D-Sub, Combo
Connector Type	Plug, Male Pins
Contact Finish	Gold
Contact Finish Thickness	0.76 Ám
Contact Finish Thickness	30 Áin
Contact Material	Copper Alloy
Contact Type	Signal and Power
Current Rating (Amps)	5 A, 20 A
Dielectric Material	Polyester Thermoplastic
Features	Grounding Indents, Mounting Brackets
Flange Feature	Housing/Shell (M3)
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole, Right Angle
Number of Positions [custom]	17
Number of Positions [custom]	4
Number of Rows	2
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Shell Material, Finish	Nickel Plated, Steel
Shell Size, Connector Layout	21WA4, 4 (DC, C)
Termination	Solder
Voltage Rating	125 VDC

629-21W Series

...

Part	Contact Finish	Current Rating (Amps)	Flange Feature	Number of Rows	Features	Shell Size, Connector Layout	Color	Contact Type	Shell Material, Finish	Dielectric Material	Number of Positions [custom]	Number of Positions [custom]	Material Flammability Rating	Voltage Rating	Mounting Type	Termination	Contact Finish Thickness	Connector Type	Connector Style	Operating Temperature [Min]	Operating Temperature [Max]	Contact Material	Backset Spacing	Backset Spacing	Contact Finish Thickness	Contact Finish Thickness	Number of Positions	Number of Positions [custom]	Number of Positions [custom]	Current Rating (Amps)
EDAC Inc. 629-21W4240-4NE	Gold	5 A 40 A	M3	2	Grounding Indents Mounting Brackets	21WA4 4 (DC C)	Black	Signal and Power	Nickel Plated Steel	Polyester Thermoplastic	17	4	UL94 V-0	125 VDC	Through Hole Right Angle	Solder	Flash	Male Pins Plug	Combo D-Sub	-55 °C	125 °C	Copper Alloy	9.4 mm	0.37 in
EDAC Inc. 629-21W4650-2NC	Gold	5 A 20 A	Housing/Shell (M3)	2	Grounding Indents Mounting Brackets	21WA4 4 (DC C)	Black	Signal and Power	Nickel Plated Steel	Polyester Thermoplastic	17	4	UL94 V-0	125 VDC	Through Hole Right Angle	Solder		Male Pins Plug	Combo D-Sub	-55 °C	125 °C	Copper Alloy	9.4 mm	0.37 in	0.76 Ám	30 Áin
EDAC Inc. 629-21W1640-7N4	Gold		Housing/Shell (4-40)	2	Grounding Indents Mounting Brackets	3 (DB B) - 21W1	Black	Coax Signal	Nickel Plated Steel	Polyester Thermoplastic			UL94 V-0	125 VDC	Through Hole Right Angle	Solder		Male Pins Plug	Combo D-Sub	-55 °C	125 °C	Copper Alloy	9.4 mm	0.37 in	0.76 Ám	30 Áin	21
EDAC Inc. 629-21W4240-3NA	Gold	5 A 30 A	Board Side (M3)	2	Grounding Indents	21WA4 4 (DC C)	Black	Signal and Power	Nickel Plated Steel	Polyester Thermoplastic	17	4	UL94 V-0	125 VDC	Through Hole Right Angle	Solder	Flash	Male Pins Plug	Combo D-Sub	-55 °C	125 °C	Copper Alloy	9.4 mm	0.37 in
EDAC Inc. 629-21W4650-3TB	Gold	5 A 30 A	Housing/Shell (M3)	2	Board Lock Grounding Indents Mounting Brackets	21WA4 4 (DC C)	Black	Signal and Power		Polyester Thermoplastic	17	4	UL94 V-0	125 VDC	Through Hole Right Angle	Solder		Male Pins Plug	Combo D-Sub	-55 °C	125 °C	Copper Alloy	9.4 mm	0.37 in	0.76 Ám	30 Áin
EDAC Inc. 629-21W4240-2T5	Gold	5 A 20 A	4-40	2	Board Lock Grounding Indents Mounting Brackets	21WA4 4 (DC C)	Black	Signal and Power		Polyester Thermoplastic	17	4	UL94 V-0	125 VDC	Through Hole Right Angle	Solder	Flash	Male Pins Plug	Combo D-Sub	-55 °C	125 °C	Copper Alloy	9.4 mm	0.37 in
EDAC Inc. 629-21W1650-1N3	Gold		Housing/Shell (4-40)	2	Board Lock Grounding Indents Mounting Brackets	3 (DB B) - 21W1	Black	Signal and Power	Nickel Plated Steel	Polyester Thermoplastic		1	UL94 V-0	125 VDC	Through Hole Right Angle	Solder		Male Pins Plug	Combo D-Sub	-55 °C	125 °C	Copper Alloy	9.4 mm	0.37 in	0.76 Ám	30 Áin		20	21	10A 5A
EDAC Inc. 629-21W1650-1N5	Gold		4-40	2	Board Lock Grounding Indents Mounting Brackets	3 (DB B) - 21W1	Black	Signal and Power	Nickel Plated Steel	Polyester Thermoplastic		1	UL94 V-0	125 VDC	Through Hole Right Angle	Solder		Male Pins Plug	Combo D-Sub	-55 °C	125 °C	Copper Alloy	9.4 mm	0.37 in	0.76 Ám	30 Áin		20	21	10A 5A
EDAC Inc. 629-21W1640-1TB	Gold		Housing/Shell (M3)	2	Board Lock Grounding Indents Mounting Brackets	3 (DB B) - 21W1	Black	Signal and Power		Polyester Thermoplastic		1	UL94 V-0	125 VDC	Through Hole Right Angle	Solder		Male Pins Plug	Combo D-Sub	-55 °C	125 °C	Copper Alloy	9.4 mm	0.37 in	0.76 Ám	30 Áin		20	21	10A 5A
EDAC Inc. 629-21W4240-3NE	Gold	5 A 30 A	M3	2	Grounding Indents Mounting Brackets	21WA4 4 (DC C)	Black	Signal and Power	Nickel Plated Steel	Polyester Thermoplastic	17	4	UL94 V-0	125 VDC	Through Hole Right Angle	Solder	Flash	Male Pins Plug	Combo D-Sub	-55 °C	125 °C	Copper Alloy	9.4 mm	0.37 in

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	250	$ 27.70

Description

General part information

629-21W Series

21 (17 + 4 Power) Position D-Sub, Combo Plug, Male Pins Connector
