627-11W1624-1TC
ActiveEDAC Inc.

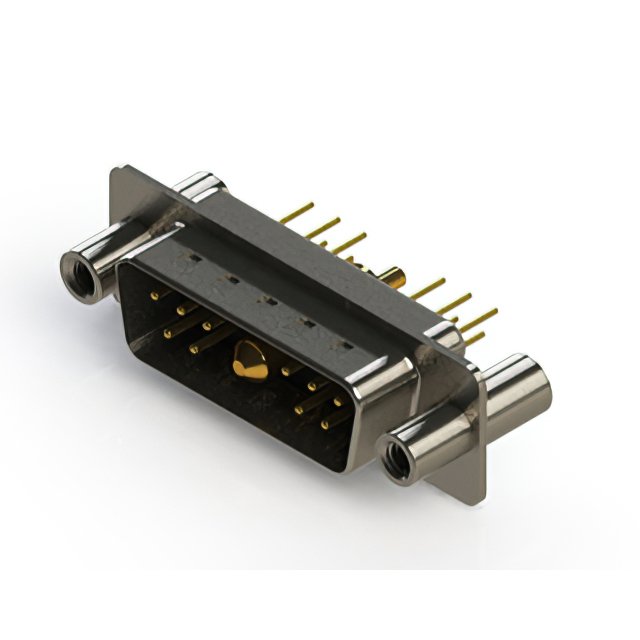

CONN D-SUB PLUG 11P PNL MNT SLDR
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
627-11W1624-1TC
ActiveEDAC Inc.
CONN D-SUB PLUG 11P PNL MNT SLDR
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 627-11W1624-1TC |
|---|---|
| Color | Black |
| Connector Style | D-Sub, Combo |
| Connector Type | Plug, Male Pins |
| Contact Finish | Gold |
| Contact Finish Thickness | 0.76 Ám |
| Contact Finish Thickness | 30 Áin |
| Contact Material | Copper Alloy |
| Contact Type | Signal and Power |
| Current Rating (Amps) | 5A, 10A |
| Dielectric Material | Polyester Thermoplastic |
| Features | Grounding Indents, Shielded |
| Flange Feature [custom] | M3 |
| Flange Feature [custom] | M3 |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Through Hole, Panel Mount |
| Number of Positions | 11 |
| Number of Positions [custom] | 10 |
| Number of Positions [custom] | 1 |
| Number of Rows | 2 |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -55 °C |
| Shell Size, Connector Layout | 11C1, 11W1 |
| Shell Size, Connector Layout | 2 |
| Termination | Solder |
| Voltage Rating | 125 VDC |
627-11W Series
...
| Part | Contact Finish Thickness | Contact Finish Thickness | Contact Material | Contact Finish | Color | Contact Type | Operating Temperature [Min] | Operating Temperature [Max] | Voltage Rating | Connector Style | Shell Size, Connector Layout | Shell Size, Connector Layout | Features | Connector Type | Number of Positions [custom] | Number of Positions [custom] | Number of Positions | Material Flammability Rating | Mounting Type | Current Rating (Amps) | Termination | Flange Feature [custom] | Flange Feature [custom] | Number of Rows | Dielectric Material | Contact Finish Thickness | Flange Feature | Shell Material, Finish | Number of Positions [custom] | Number of Positions [custom] | Current Rating (Amps) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
EDAC Inc. | 0.76 Ám | 30 Áin | Copper Alloy | Gold | Black | Signal and Power | -55 °C | 125 °C | 125 VDC | Combo D-Sub | 11C1 11W1 | 2 | Grounding Indents Shielded | Male Pins Plug | 10 | 1 | 11 | UL94 V-0 | Panel Mount Through Hole | 5 A 30 A | Solder | M3 | M3 | 2 | Polyester Thermoplastic | ||||||
EDAC Inc. | Copper Alloy | Gold | Black | Signal and Power | -55 °C | 125 °C | 125 VDC | Combo D-Sub | 11C1 11W1 | 2 | Grounding Indents Shielded | Male Pins Plug | 10 | 1 | 11 | UL94 V-0 | 5 A 40 A | 2 | Polyester Thermoplastic | Flash | Board Side (M3) | Nickel Plated Steel | |||||||||
EDAC Inc. | 0.76 Ám | 30 Áin | Copper Alloy | Gold | Black | Signal and Power | -55 °C | 125 °C | 125 VDC | Combo D-Sub | 11C1 11W1 | 2 | Board Lock Grounding Indents Shielded | Male Pins Plug | 10 | 1 | 11 | UL94 V-0 | Through Hole | 5 A 30 A | Solder | 2 | Polyester Thermoplastic | 4-40 Board Side | Nickel Plated Steel | ||||||
EDAC Inc. | Copper Alloy | Gold | Black | Coax Signal | -55 °C | 125 °C | 125 VDC | Combo D-Sub | 11C1 11W1 | 2 | Grounding Indents Shielded | Male Pins Plug | 10 | UL94 V-0 | 2 | Polyester Thermoplastic | Flash | Board Side (M3) | Nickel Plated Steel | 11 | 1 | ||||||||||
EDAC Inc. | 0.76 Ám | 30 Áin | Copper Alloy | Gold | Black | Signal and Power | -55 °C | 125 °C | 125 VDC | Combo D-Sub | 11C1 11W1 | 2 | Grounding Indents Shielded | Male Pins Plug | 10 | 1 | 11 | UL94 V-0 | Panel Mount Through Hole | Solder | M3 | M3 | 2 | Polyester Thermoplastic | 10A 5A | ||||||
EDAC Inc. | 0.76 Ám | 30 Áin | Copper Alloy | Gold | Black | Signal and Power | -55 °C | 125 °C | 125 VDC | Combo D-Sub | 11C1 11W1 | 2 | Board Lock Grounding Indents Shielded | Male Pins Plug | 10 | 1 | 11 | UL94 V-0 | Panel Mount Through Hole | 5 A 40 A | Solder | 2 | Polyester Thermoplastic | M3 | Nickel Plated Steel | ||||||
EDAC Inc. | Copper Alloy | Gold | Black | Coax Signal | -55 °C | 125 °C | 125 VDC | Combo D-Sub | 11C1 11W1 | 2 | Grounding Indents Shielded | Male Pins Plug | 10 | UL94 V-0 | Panel Mount Through Hole | Solder | 2 | Polyester Thermoplastic | Flash | 4-40 Board Side | Nickel Plated Steel | 11 | 1 | ||||||||
EDAC Inc. | 0.76 Ám | 30 Áin | Copper Alloy | Gold | Black | Coax Signal | -55 °C | 125 °C | 125 VDC | Combo D-Sub | 11C1 11W1 | 2 | Grounding Indents Shielded | Male Pins Plug | 10 | UL94 V-0 | Panel Mount Through Hole | Solder | 2 | Polyester Thermoplastic | Board Side (M3) | Nickel Plated Steel | 11 | 1 | |||||||
EDAC Inc. | 0.76 Ám | 30 Áin | Copper Alloy | Gold | Black | Signal and Power | -55 °C | 125 °C | 125 VDC | Combo D-Sub | 11C1 11W1 | 2 | Grounding Indents Shielded | Male Pins Plug | 10 | 1 | 11 | UL94 V-0 | Panel Mount Through Hole | 5 A 40 A | Solder | 2 | Polyester Thermoplastic | Board Side (M3) | Nickel Plated Steel | ||||||
EDAC Inc. | Copper Alloy | Gold | Black | Signal and Power | -55 °C | 125 °C | 125 VDC | Combo D-Sub | 11C1 11W1 | 2 | Grounding Indents Shielded | Male Pins Plug | 10 | 1 | 11 | UL94 V-0 | Free Hanging (In-Line) | 2 | Polyester Thermoplastic | Flash | 4-40 Board Side | Nickel Plated Steel | 10A 5A |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 400 | $ 11.71 | |
Description
General part information
627-11W Series
11 (10 + 1 Power) Position D-Sub, Combo Plug, Male Pins Connector
