627-11W1222-4NA

Active

EDAC Inc.

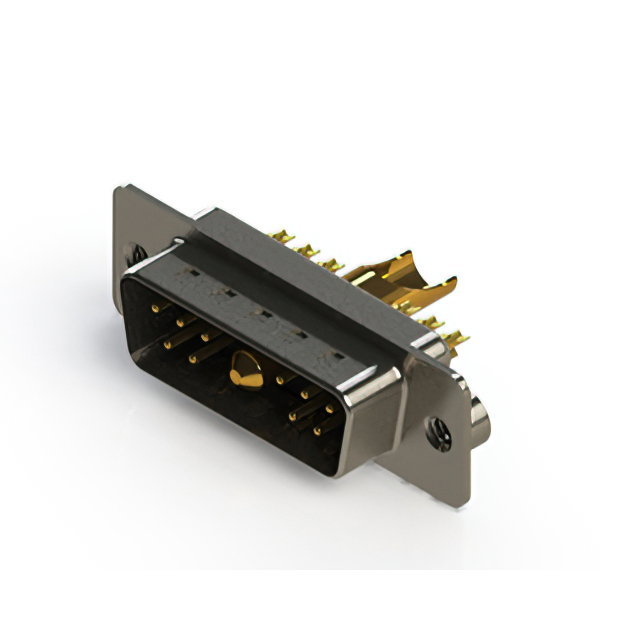

CONN D-SUB PLUG 11P PNL MNT

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

627-11W1222-4NA

Active

EDAC Inc.

CONN D-SUB PLUG 11P PNL MNT

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	627-11W1222-4NA

Color	Black
Connector Style	D-Sub, Combo
Connector Type	Plug, Male Pins
Contact Finish	Gold
Contact Finish Thickness	Flash
Contact Material	Copper Alloy
Contact Type	Signal and Power
Current Rating (Amps)	40 A, 5 A
Dielectric Material	Polyester Thermoplastic
Features	Grounding Indents, Shielded
Flange Feature	Board Side (M3)
Material Flammability Rating	UL94 V-0
Number of Positions	11
Number of Positions [custom]	10
Number of Positions [custom]	1
Number of Rows	2
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Shell Material, Finish	Nickel Plated, Steel
Shell Size, Connector Layout	11C1, 11W1
Shell Size, Connector Layout	2
Voltage Rating	125 VDC

627-11W Series

...

Part	Contact Finish Thickness	Contact Finish Thickness	Contact Material	Contact Finish	Color	Contact Type	Operating Temperature [Min]	Operating Temperature [Max]	Voltage Rating	Connector Style	Shell Size, Connector Layout	Shell Size, Connector Layout	Features	Connector Type	Number of Positions [custom]	Number of Positions [custom]	Number of Positions	Material Flammability Rating	Mounting Type	Current Rating (Amps)	Termination	Flange Feature [custom]	Flange Feature [custom]	Number of Rows	Dielectric Material	Contact Finish Thickness	Flange Feature	Shell Material, Finish	Number of Positions [custom]	Number of Positions [custom]	Current Rating (Amps)
EDAC Inc. 627-11W1624-3TC	0.76 Ám	30 Áin	Copper Alloy	Gold	Black	Signal and Power	-55 °C	125 °C	125 VDC	Combo D-Sub	11C1 11W1	2	Grounding Indents Shielded	Male Pins Plug	10	1	11	UL94 V-0	Panel Mount Through Hole	5 A 30 A	Solder	M3	M3	2	Polyester Thermoplastic
EDAC Inc. 627-11W1222-4NA			Copper Alloy	Gold	Black	Signal and Power	-55 °C	125 °C	125 VDC	Combo D-Sub	11C1 11W1	2	Grounding Indents Shielded	Male Pins Plug	10	1	11	UL94 V-0		5 A 40 A				2	Polyester Thermoplastic	Flash	Board Side (M3)	Nickel Plated Steel
EDAC Inc. 627-11W1624-3N5	0.76 Ám	30 Áin	Copper Alloy	Gold	Black	Signal and Power	-55 °C	125 °C	125 VDC	Combo D-Sub	11C1 11W1	2	Board Lock Grounding Indents Shielded	Male Pins Plug	10	1	11	UL94 V-0	Through Hole	5 A 30 A	Solder			2	Polyester Thermoplastic		4-40 Board Side	Nickel Plated Steel
EDAC Inc. 627-11W1222-5NA			Copper Alloy	Gold	Black	Coax Signal	-55 °C	125 °C	125 VDC	Combo D-Sub	11C1 11W1	2	Grounding Indents Shielded	Male Pins Plug	10			UL94 V-0						2	Polyester Thermoplastic	Flash	Board Side (M3)	Nickel Plated Steel	11	1
EDAC Inc. 627-11W1624-1TC	0.76 Ám	30 Áin	Copper Alloy	Gold	Black	Signal and Power	-55 °C	125 °C	125 VDC	Combo D-Sub	11C1 11W1	2	Grounding Indents Shielded	Male Pins Plug	10	1	11	UL94 V-0	Panel Mount Through Hole		Solder	M3	M3	2	Polyester Thermoplastic						10A 5A
EDAC Inc. 627-11W1624-4NE	0.76 Ám	30 Áin	Copper Alloy	Gold	Black	Signal and Power	-55 °C	125 °C	125 VDC	Combo D-Sub	11C1 11W1	2	Board Lock Grounding Indents Shielded	Male Pins Plug	10	1	11	UL94 V-0	Panel Mount Through Hole	5 A 40 A	Solder			2	Polyester Thermoplastic		M3	Nickel Plated Steel
EDAC Inc. 627-11W1224-5N3			Copper Alloy	Gold	Black	Coax Signal	-55 °C	125 °C	125 VDC	Combo D-Sub	11C1 11W1	2	Grounding Indents Shielded	Male Pins Plug	10			UL94 V-0	Panel Mount Through Hole		Solder			2	Polyester Thermoplastic	Flash	4-40 Board Side	Nickel Plated Steel	11	1
EDAC Inc. 627-11W1624-7NB	0.76 Ám	30 Áin	Copper Alloy	Gold	Black	Coax Signal	-55 °C	125 °C	125 VDC	Combo D-Sub	11C1 11W1	2	Grounding Indents Shielded	Male Pins Plug	10			UL94 V-0	Panel Mount Through Hole		Solder			2	Polyester Thermoplastic		Board Side (M3)	Nickel Plated Steel	11	1
EDAC Inc. 627-11W1624-4NB	0.76 Ám	30 Áin	Copper Alloy	Gold	Black	Signal and Power	-55 °C	125 °C	125 VDC	Combo D-Sub	11C1 11W1	2	Grounding Indents Shielded	Male Pins Plug	10	1	11	UL94 V-0	Panel Mount Through Hole	5 A 40 A	Solder			2	Polyester Thermoplastic		Board Side (M3)	Nickel Plated Steel
EDAC Inc. 627-11W1222-1N2			Copper Alloy	Gold	Black	Signal and Power	-55 °C	125 °C	125 VDC	Combo D-Sub	11C1 11W1	2	Grounding Indents Shielded	Male Pins Plug	10	1	11	UL94 V-0	Free Hanging (In-Line)					2	Polyester Thermoplastic	Flash	4-40 Board Side	Nickel Plated Steel			10A 5A

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	100	$ 6.24

Description

General part information

627-11W Series

11 (10 + 1 Power) Position D-Sub, Combo Plug, Male Pins Connector
