627-11W1222-1N2

Active

EDAC Inc.

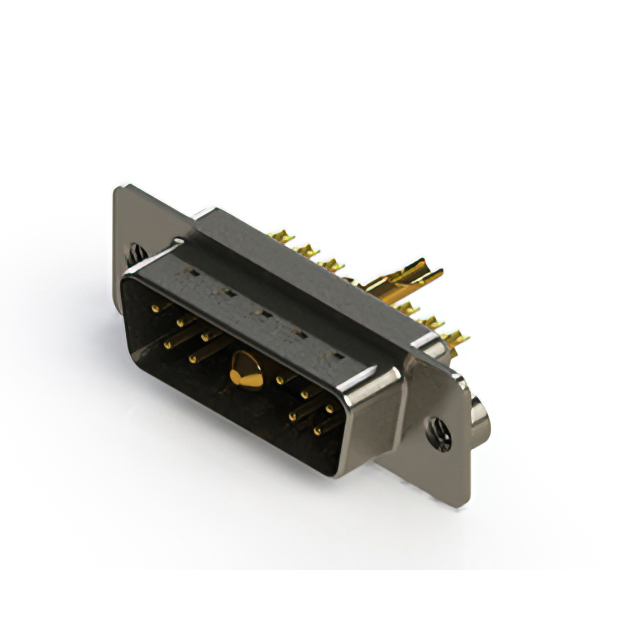

COMBINATION LAYOUT D SUB CONNECTOR, 627C SERIES, DA-11W1, PLUG, 11 CONTACTS, 10 SIGNAL, 1 POWER

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Technical Data Sheet EN

627-11W1222-1N2

Active

EDAC Inc.

COMBINATION LAYOUT D SUB CONNECTOR, 627C SERIES, DA-11W1, PLUG, 11 CONTACTS, 10 SIGNAL, 1 POWER

Deep-Dive with AI

DocumentsDatasheet Technical Data Sheet EN

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	627-11W1222-1N2

Color	Black
Connector Style	D-Sub, Combo
Connector Type	Plug, Male Pins
Contact Finish	Gold
Contact Finish Thickness	Flash
Contact Material	Copper Alloy
Contact Type	Signal and Power
Current Rating (Amps)	5A, 10A
Dielectric Material	Polyester Thermoplastic
Features	Grounding Indents, Shielded
Flange Feature	Board Side, 4-40
Material Flammability Rating	UL94 V-0
Mounting Type	Free Hanging (In-Line)
Number of Positions	11
Number of Positions [custom]	10
Number of Positions [custom]	1
Number of Rows	2
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Shell Material, Finish	Nickel Plated, Steel
Shell Size, Connector Layout	11C1, 11W1
Shell Size, Connector Layout	2
Voltage Rating	125 VDC

627-11W Series

...

Part	Contact Finish Thickness	Contact Finish Thickness	Contact Material	Contact Finish	Color	Contact Type	Operating Temperature [Min]	Operating Temperature [Max]	Voltage Rating	Connector Style	Shell Size, Connector Layout	Shell Size, Connector Layout	Features	Connector Type	Number of Positions [custom]	Number of Positions [custom]	Number of Positions	Material Flammability Rating	Mounting Type	Current Rating (Amps)	Termination	Flange Feature [custom]	Flange Feature [custom]	Number of Rows	Dielectric Material	Contact Finish Thickness	Flange Feature	Shell Material, Finish	Number of Positions [custom]	Number of Positions [custom]	Current Rating (Amps)
EDAC Inc. 627-11W1624-3TC	0.76 Ám	30 Áin	Copper Alloy	Gold	Black	Signal and Power	-55 °C	125 °C	125 VDC	Combo D-Sub	11C1 11W1	2	Grounding Indents Shielded	Male Pins Plug	10	1	11	UL94 V-0	Panel Mount Through Hole	5 A 30 A	Solder	M3	M3	2	Polyester Thermoplastic
EDAC Inc. 627-11W1222-4NA			Copper Alloy	Gold	Black	Signal and Power	-55 °C	125 °C	125 VDC	Combo D-Sub	11C1 11W1	2	Grounding Indents Shielded	Male Pins Plug	10	1	11	UL94 V-0		5 A 40 A				2	Polyester Thermoplastic	Flash	Board Side (M3)	Nickel Plated Steel
EDAC Inc. 627-11W1624-3N5	0.76 Ám	30 Áin	Copper Alloy	Gold	Black	Signal and Power	-55 °C	125 °C	125 VDC	Combo D-Sub	11C1 11W1	2	Board Lock Grounding Indents Shielded	Male Pins Plug	10	1	11	UL94 V-0	Through Hole	5 A 30 A	Solder			2	Polyester Thermoplastic		4-40 Board Side	Nickel Plated Steel
EDAC Inc. 627-11W1222-5NA			Copper Alloy	Gold	Black	Coax Signal	-55 °C	125 °C	125 VDC	Combo D-Sub	11C1 11W1	2	Grounding Indents Shielded	Male Pins Plug	10			UL94 V-0						2	Polyester Thermoplastic	Flash	Board Side (M3)	Nickel Plated Steel	11	1
EDAC Inc. 627-11W1624-1TC	0.76 Ám	30 Áin	Copper Alloy	Gold	Black	Signal and Power	-55 °C	125 °C	125 VDC	Combo D-Sub	11C1 11W1	2	Grounding Indents Shielded	Male Pins Plug	10	1	11	UL94 V-0	Panel Mount Through Hole		Solder	M3	M3	2	Polyester Thermoplastic						10A 5A
EDAC Inc. 627-11W1624-4NE	0.76 Ám	30 Áin	Copper Alloy	Gold	Black	Signal and Power	-55 °C	125 °C	125 VDC	Combo D-Sub	11C1 11W1	2	Board Lock Grounding Indents Shielded	Male Pins Plug	10	1	11	UL94 V-0	Panel Mount Through Hole	5 A 40 A	Solder			2	Polyester Thermoplastic		M3	Nickel Plated Steel
EDAC Inc. 627-11W1224-5N3			Copper Alloy	Gold	Black	Coax Signal	-55 °C	125 °C	125 VDC	Combo D-Sub	11C1 11W1	2	Grounding Indents Shielded	Male Pins Plug	10			UL94 V-0	Panel Mount Through Hole		Solder			2	Polyester Thermoplastic	Flash	4-40 Board Side	Nickel Plated Steel	11	1
EDAC Inc. 627-11W1624-7NB	0.76 Ám	30 Áin	Copper Alloy	Gold	Black	Coax Signal	-55 °C	125 °C	125 VDC	Combo D-Sub	11C1 11W1	2	Grounding Indents Shielded	Male Pins Plug	10			UL94 V-0	Panel Mount Through Hole		Solder			2	Polyester Thermoplastic		Board Side (M3)	Nickel Plated Steel	11	1
EDAC Inc. 627-11W1624-4NB	0.76 Ám	30 Áin	Copper Alloy	Gold	Black	Signal and Power	-55 °C	125 °C	125 VDC	Combo D-Sub	11C1 11W1	2	Grounding Indents Shielded	Male Pins Plug	10	1	11	UL94 V-0	Panel Mount Through Hole	5 A 40 A	Solder			2	Polyester Thermoplastic		Board Side (M3)	Nickel Plated Steel
EDAC Inc. 627-11W1222-1N2			Copper Alloy	Gold	Black	Signal and Power	-55 °C	125 °C	125 VDC	Combo D-Sub	11C1 11W1	2	Grounding Indents Shielded	Male Pins Plug	10	1	11	UL94 V-0	Free Hanging (In-Line)					2	Polyester Thermoplastic	Flash	4-40 Board Side	Nickel Plated Steel			10A 5A

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	100	$ 6.24
Newark	Each	100	$ 6.50
		250	$ 6.34
		500	$ 6.11

Description

General part information

627-11W Series

11 (10 + 1 Power) Position D-Sub, Combo Plug, Male Pins Connector
