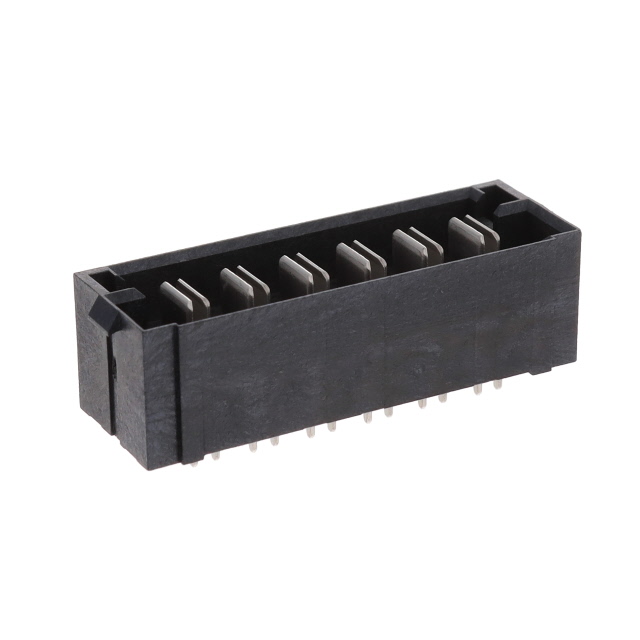

MPT-06-6.30-01-T-V
ActiveSamtec Inc.
CONN HDR 6POS 5.00MM PCB SLDR
Deep-Dive with AI
Search across all available documentation for this part.
MPT-06-6.30-01-T-V
ActiveSamtec Inc.
CONN HDR 6POS 5.00MM PCB SLDR
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | MPT-06-6.30-01-T-V |
|---|---|
| Color | Black |
| Connector Type | Male Blades, Header |
| Contact Finish | Tin |
| Contact Material | Copper Alloy |
| Current Rating (Amps) | 30 A |
| Fastening Type | Locking Ramp |
| Features | Board Guide |
| Material - Insulation | Liquid Crystal Polymer (LCP) |
| Mounting Type | Through Hole |
| Number of Positions | 6 |
| Number of Rows | 1 |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -55 °C |
| Pitch [x] | 5 mm |
| Pitch [x] | 0.197 in |
| Termination | Solder |
| Voltage Rating | 812 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 1 | $ 4.30 | |
| 25 | $ 3.89 | |||
| 50 | $ 3.61 | |||
| 100 | $ 3.60 | |||
Description
General part information
MPT-06 Series
6 Position Header, Male Blades Connector Solder 0.197" (5.00mm) Through Hole
