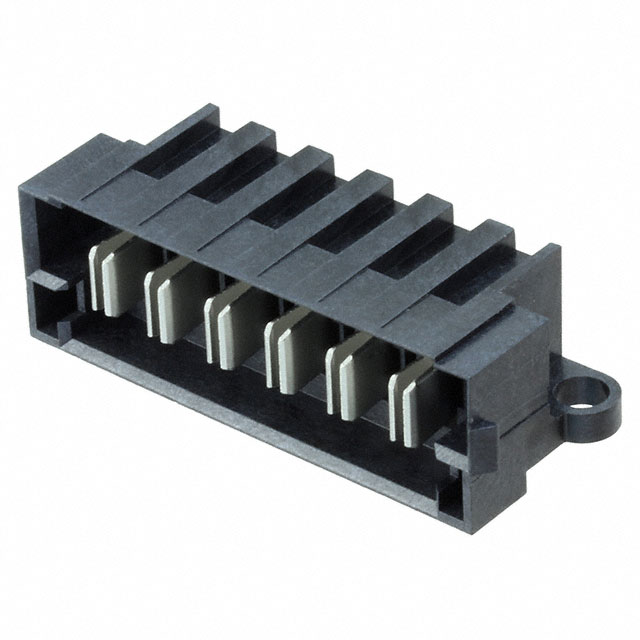

CONN HDR 6POS 5.00MM R/A SLDR
Deep-Dive with AI
Search across all available documentation for this part.
MPT-06-01-01-T-RA-SD
ActiveSamtec Inc.
CONN HDR 6POS 5.00MM R/A SLDR
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | MPT-06-01-01-T-RA-SD |
|---|---|
| Color | Black |
| Connector Type | Male Blades, Header |
| Contact Finish | Tin |
| Contact Material | Copper Alloy |
| Current Rating (Amps) | 30 A |
| Fastening Type | Locking Ramp |
| Features | Latch Lock, Board Guide |
| Material - Insulation | Liquid Crystal Polymer (LCP) |
| Mounting Type | Through Hole, Right Angle |
| Number of Positions | 6 |
| Number of Rows | 1 |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -55 °C |
| Pitch [x] | 5 mm |
| Pitch [x] | 0.197 in |
| Termination | Solder |
| Voltage Rating | 812 V |
MPT-06 Series
| Part | Number of Positions | Termination | Material - Insulation | Contact Finish Thickness | Contact Finish Thickness | Number of Rows | Current Rating (Amps) | Color | Connector Type | Operating Temperature [Min] | Operating Temperature [Max] | Contact Finish | Pitch [x] | Pitch [x] | Features | Fastening Type | Mounting Type | Contact Material | Voltage Rating |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Samtec Inc. | 6 | Solder | Liquid Crystal Polymer (LCP) | 10 Áin | 0.25 Ám | 1 | 30 A | Black | Header Male Blades | -55 °C | 125 °C | Gold | 5 mm | 0.197 in | Board Guide Latch Lock | Locking Ramp | Through Hole Right Angle | Copper Alloy | 812 V |
Samtec Inc. | 6 | Solder | Liquid Crystal Polymer (LCP) | 1 | 30 A | Black | Header Male Blades | -55 °C | 105 ░C | Tin | 5 mm | 0.197 in | Board Guide Latch Lock | Locking Ramp | Through Hole Right Angle | Copper Alloy | 812 V | ||
Samtec Inc. | 6 | Solder | Liquid Crystal Polymer (LCP) | 1 | 30 A | Black | Header Male Blades | -55 °C | 105 ░C | Tin | 5 mm | 0.197 in | Board Guide | Locking Ramp | Through Hole | Copper Alloy | 812 V | ||
Samtec Inc. | 6 | Solder | Liquid Crystal Polymer (LCP) | 10 Áin | 0.25 Ám | 1 | 30 A | Black | Header Male Blades | -55 °C | 125 °C | Gold | 5 mm | 0.197 in | Board Guide Latch Lock | Locking Ramp | Through Hole | Copper Alloy | 812 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 1 | $ 4.73 | |
| 25 | $ 4.27 | |||
| 50 | $ 3.97 | |||
| 100 | $ 3.95 | |||
Description
General part information
MPT-06 Series
6 Position Header, Male Blades Connector Solder 0.197" (5.00mm) Through Hole, Right Angle
