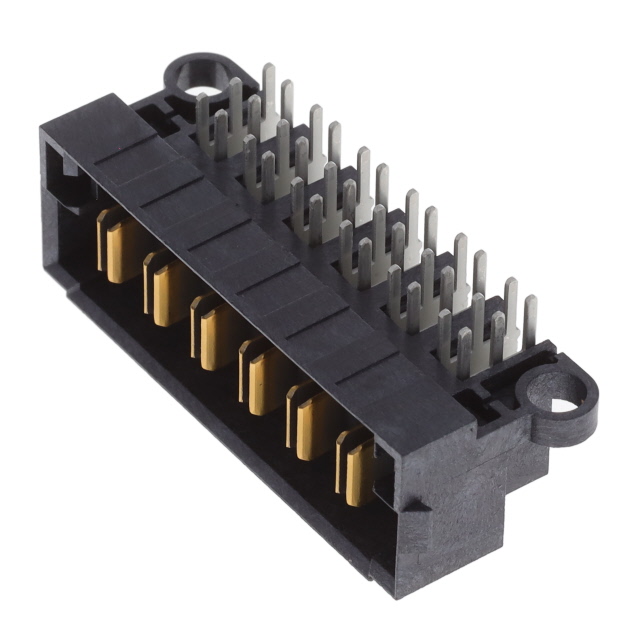

MPT-06-01-03-L-RA-SD

Active

Samtec Inc.

CONN HDR 6POS 5.00MM R/A SLDR

Search across all available documentation for this part.

Active

Samtec Inc.

CONN HDR 6POS 5.00MM R/A SLDR

Technical Specifications

Parameters and characteristics for this part

Part	Number of Positions	Termination	Material - Insulation	Contact Finish Thickness	Contact Finish Thickness	Number of Rows	Current Rating (Amps)	Color	Connector Type	Operating Temperature [Min]	Operating Temperature [Max]	Contact Finish	Pitch [x]	Pitch [x]	Features	Fastening Type	Mounting Type	Contact Material	Voltage Rating
Samtec Inc. MPT-06-01-03-L-RA-SD	6	Solder	Liquid Crystal Polymer (LCP)	10 Áin	0.25 Ám	1	30 A	Black	Header Male Blades	-55 °C	125 °C	Gold	5 mm	0.197 in	Board Guide Latch Lock	Locking Ramp	Through Hole Right Angle	Copper Alloy	812 V
Samtec Inc. MPT-06-01-01-T-RA-SD	6	Solder	Liquid Crystal Polymer (LCP)			1	30 A	Black	Header Male Blades	-55 °C	105 ░C	Tin	5 mm	0.197 in	Board Guide Latch Lock	Locking Ramp	Through Hole Right Angle	Copper Alloy	812 V
Samtec Inc. MPT-06-6.30-01-T-V	6	Solder	Liquid Crystal Polymer (LCP)			1	30 A	Black	Header Male Blades	-55 °C	105 ░C	Tin	5 mm	0.197 in	Board Guide	Locking Ramp	Through Hole	Copper Alloy	812 V
Samtec Inc. MPT-06-6.30-03-L-V	6	Solder	Liquid Crystal Polymer (LCP)	10 Áin	0.25 Ám	1	30 A	Black	Header Male Blades	-55 °C	125 °C	Gold	5 mm	0.197 in	Board Guide Latch Lock	Locking Ramp	Through Hole	Copper Alloy	812 V

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

6 Position Header, Male Blades Connector Solder 0.197" (5.00mm) Through Hole, Right Angle
