AFB0724LB

Active

Delta Electronics

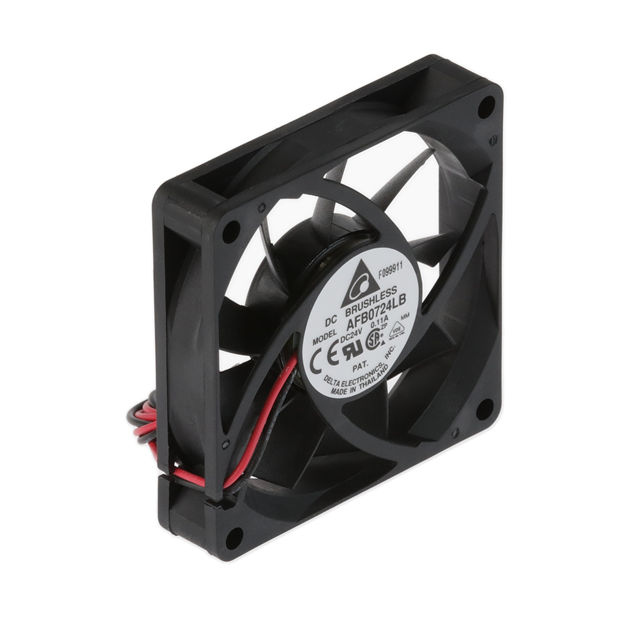

FAN AXIAL 70X15MM 24VDC WIRE

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

AFB0724LB

Active

Delta Electronics

FAN AXIAL 70X15MM 24VDC WIRE

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 14.98
		10	$ 14.30
		25	$ 12.93
		50	$ 11.91
		224	$ 10.69
		448	$ 9.87
		672	$ 9.19

Description

General part information

AFB0724 Series

Fan Tubeaxial 24VDC Square - 70mm L x 70mm H Ball 23.4 CFM (0.655m³/min) 2 Wire Leads

Documents

Technical documentation and resources

Datasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	AFB0724LB	AFB0724 Series

Air Flow	23.4 CFM	23.4 - 52 CFM
Air Flow	0.655 m³/min	0.655 - 1.46 m³/min
Approval Agency	UL, CE, VDE, CSA	UL, CE, VDE, CSA
Bearing Type	Ball	Ball
Current Rating (Amps)	60 mA	0.09 - 270 mA
Fan Type	Tubeaxial	Tubeaxial
Features	-	Speed Sensor (Tach), Locked Rotor Protection, Locked Rotor Sensor
Lifetime @ Temp.	-	70000 Hrs
Material - Blade	Plastic	Plastic
Material - Frame	Plastic	Plastic
Noise	26.5 dB	26.5 - 47.5 dB(A)
Operating Temperature	-	70 °C
Operating Temperature	-	70 °C
Operating Temperature	-	-10 °C
Operating Temperature	-	-10 °C
Power (Watts)	1.44 W	1.2 - 6.48 W
RPM	2800 RPM	2800 - 5500 RPM
Size / Dimension [x]	70 mm	70 mm
Size / Dimension [y]	70 mm	70 mm
Static Pressure	-	0.123 - 0.433 in H2O
Static Pressure	-	30.6 - 107.9 Pa
Termination	2 Wire Leads	2 Wire Leads, 3 Wire Leads
Voltage - Rated	24 VDC	24 VDC
Voltage Range [Max]	27.6 VDC	26.4 - 27.6 VDC
Voltage Range [Min]	14 VDC	14 VDC
Weight	47.17 g	47.17 - 90.26 g
Weight	0.104 lb	0.104 - 0.199 lb
Width	-	25.4 mm
Width [x]	15 mm	15 mm

AFB0724 Series

DC FAN AXIAL BALL BEARING 24V 14V TO 26.4V 36.3CFM 37.5DB 70 X 70 X 25.4MM

Part	Width [y]	Weight	Weight	Voltage - Rated	Size / Dimension [y]	Size / Dimension [x]	Power (Watts)	Static Pressure	Static Pressure	Voltage Range [Max]	Voltage Range [Min]	Noise	RPM	Material - Blade	Air Flow	Air Flow	Material - Frame	Bearing Type	Lifetime @ Temp.	Approval Agency	Fan Type	Termination	Operating Temperature [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Operating Temperature [Min]	Current Rating (Amps)	Features	Width [x]
Delta Electronics AFB0724H-A	25.4 mm	90.26 g	0.199 lb	24 VDC	70 mm	70 mm	3.12 W	0.217 in H2O	54.1 Pa	26.4 VDC	14 VDC	37.5 dB(A)	3900 RPM	Plastic	36.3 CFM	1.02 m³/min	Plastic	Ball	70000 Hrs	CE, CSA, UL, VDE	Tubeaxial	2 Wire Leads	70 °C	70 °C	-10 °C	-10 °C
Delta Electronics AFB0724VH-AF00	25.4 mm	90.26 g	0.199 lb	24 VDC	70 mm	70 mm	6.48 W	0.433 in H2O	107.9 Pa	26.4 VDC	14 VDC	47.5 dB	5500 RPM	Plastic	52 CFM	1.46 mł/min	Plastic	Ball	70000 Hrs	CE, CSA, UL, VDE	Tubeaxial	3 Wire Leads	70 °C	70 °C	-10 °C	-10 °C	270 mA	Locked Rotor Protection, Speed Sensor (Tach)
Delta Electronics AFB0724HHB-F00		47.17 g	0.104 lb	24 VDC	70 mm	70 mm	3.6 W	0.21 in H2O	52.3 Pa	27.6 VDC	14 VDC	38.5 dB	4300 RPM	Plastic	37.5 CFM	1.05 m³/min	Plastic	Ball	70000 Hrs	CE, CSA, UL, VDE	Tubeaxial	3 Wire Leads	70 °C	70 °C	-10 °C	-10 °C	150 mA	Locked Rotor Protection, Speed Sensor (Tach)	15 mm
Delta Electronics AFB0724HH-AR00	25.4 mm	90.26 g	0.199 lb	24 VDC	70 mm	70 mm	4.32 W	0.311 in H2O	77.5 Pa	26.4 VDC	14 VDC	44 dB		Plastic	44 CFM	1.23 m³/min	Plastic	Ball	70000 Hrs	CE, CSA, UL, VDE	Tubeaxial	3 Wire Leads	70 °C	70 °C	-10 °C	-10 °C	0.18 A	Locked Rotor Sensor
Delta Electronics AFB0724M-A	25.4 mm	90.26 g	0.199 lb	24 VDC	70 mm	70 mm	2.16 W	0.14 in H2O	34.9 Pa	27.6 VDC	14 VDC	31.5 dB	3100 RPM	Plastic	28.9 CFM	0.809 mł/min	Plastic	Ball		CE, CSA, UL, VDE	Tubeaxial	2 Wire Leads					0.09 A
Delta Electronics AFB0724MB		47.17 g	0.104 lb	24 VDC	70 mm	70 mm	2.16 W	0.123 in H2O	30.6 Pa	27.6 VDC	14 VDC	31 dB(A)	3300 RPM	Plastic	28.2 CFM	0.79 mł/min	Plastic	Ball			Tubeaxial	2 Wire Leads					0.09 A		15 mm
Delta Electronics AFB0724M	25.4 mm			24 VDC	70 mm	70 mm	1.2 W					28 dB		Plastic			Plastic	Ball			Tubeaxial	2 Wire Leads
Delta Electronics AFB0724LB		47.17 g	0.104 lb	24 VDC	70 mm	70 mm	1.44 W			27.6 VDC	14 VDC	26.5 dB	2800 RPM	Plastic	23.4 CFM	0.655 m³/min	Plastic	Ball		CE, CSA, UL, VDE	Tubeaxial	2 Wire Leads					60 mA		15 mm
