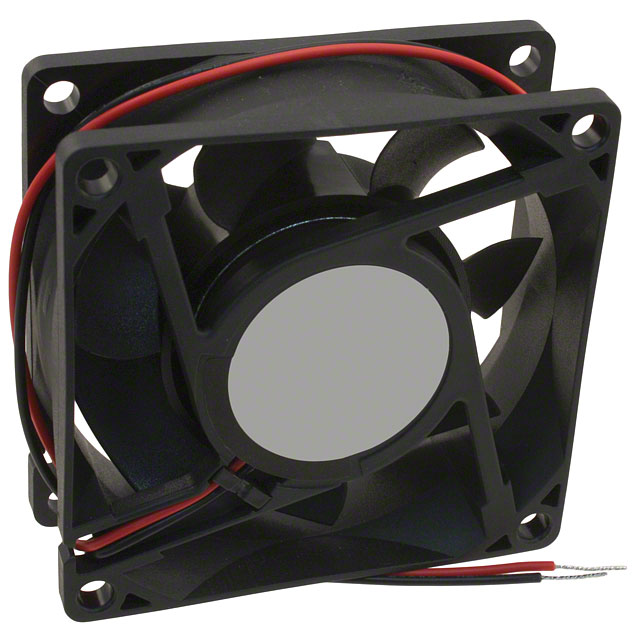

AFB0724M

Obsolete

Delta Electronics

FAN AXIAL 70X25.4MM 24VDC WIRE

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsFans, Electric - Component UL Cert Datasheet +2

AFB0724M

Obsolete

Delta Electronics

FAN AXIAL 70X25.4MM 24VDC WIRE

Deep-Dive with AI

DocumentsFans, Electric - Component UL Cert Datasheet +2

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 12.54
		10	$ 11.73
		25	$ 10.64
		50	$ 9.82

Description

General part information

AFB0724 Series

Fan Tubeaxial 24VDC Square - 70mm L x 70mm H Ball 2 Wire Leads

Documents

Technical documentation and resources

Fans, Electric - Component UL Cert

Datasheet

Fans, Blowers CSA Cert

Fans VDE Cert

Related Document

Specification	AFB0724M	AFB0724 Series

Air Flow	-	23.4 - 52 CFM
Air Flow	-	0.655 - 1.46 m³/min
Approval Agency	-	UL, CE, VDE, CSA
Bearing Type	Ball	Ball
Current Rating (Amps)	-	0.09 - 270 mA
Fan Type	Tubeaxial	Tubeaxial
Features	-	Speed Sensor (Tach), Locked Rotor Protection, Locked Rotor Sensor
Lifetime @ Temp.	-	70000 Hrs
Material - Blade	Plastic	Plastic
Material - Frame	Plastic	Plastic
Noise	28 dB	26.5 - 47.5 dB(A)
Operating Temperature	-	70 °C
Operating Temperature	-	70 °C
Operating Temperature	-	-10 °C
Operating Temperature	-	-10 °C
Power (Watts)	1.2 W	1.2 - 6.48 W
RPM	-	2800 - 5500 RPM
Size / Dimension [x]	70 mm	70 mm
Size / Dimension [y]	70 mm	70 mm
Static Pressure	-	0.123 - 0.433 in H2O
Static Pressure	-	30.6 - 107.9 Pa
Termination	2 Wire Leads	2 Wire Leads, 3 Wire Leads
Voltage - Rated	24 VDC	24 VDC
Voltage Range	-	26.4 - 27.6 VDC
Voltage Range	-	14 VDC
Weight	-	47.17 - 90.26 g
Weight	-	0.104 - 0.199 lb
Width	-	15 mm
Width [y]	25.4 mm	25.4 mm

Part

Width [y]

Weight

Voltage - Rated

Size / Dimension [y]

Size / Dimension [x]

Power (Watts)

Static Pressure

Voltage Range [Max]

Voltage Range [Min]

Noise

RPM

Material - Blade

Air Flow

Material - Frame

Bearing Type

Lifetime @ Temp.

Approval Agency

Fan Type

Termination

Operating Temperature [Max]

Operating Temperature [Min]

Current Rating (Amps)

Features

Width [x]

Delta Electronics

AFB0724H-A

25.4 mm

90.26 g

0.199 lb

24 VDC

70 mm

3.12 W

0.217 in H2O

54.1 Pa

26.4 VDC

14 VDC

37.5 dB(A)

3900 RPM

Plastic

36.3 CFM

1.02 m³/min

Plastic

Ball

70000 Hrs

CE, CSA, UL, VDE

Tubeaxial

2 Wire Leads

70 °C

-10 °C

Delta Electronics

AFB0724VH-AF00

25.4 mm

90.26 g

0.199 lb

24 VDC

70 mm

6.48 W

0.433 in H2O

107.9 Pa

26.4 VDC

14 VDC

47.5 dB

5500 RPM

Plastic

52 CFM

1.46 mł/min

Plastic

Ball

70000 Hrs

CE, CSA, UL, VDE

Tubeaxial

3 Wire Leads

70 °C

-10 °C

270 mA

Locked Rotor Protection, Speed Sensor (Tach)

Delta Electronics

AFB0724HHB-F00

47.17 g

0.104 lb

24 VDC

70 mm

3.6 W

0.21 in H2O

52.3 Pa

27.6 VDC

14 VDC

38.5 dB

4300 RPM

Plastic

37.5 CFM

1.05 m³/min

Plastic

Ball

70000 Hrs

CE, CSA, UL, VDE

Tubeaxial

3 Wire Leads

70 °C

-10 °C

150 mA

Locked Rotor Protection, Speed Sensor (Tach)

15 mm

Delta Electronics

AFB0724HH-AR00

25.4 mm

90.26 g

0.199 lb

24 VDC

70 mm

4.32 W

0.311 in H2O

77.5 Pa

26.4 VDC

14 VDC

44 dB

Plastic

44 CFM

1.23 m³/min

Plastic

Ball

70000 Hrs

CE, CSA, UL, VDE

Tubeaxial

3 Wire Leads

70 °C

-10 °C

0.18 A

Locked Rotor Sensor

Delta Electronics

AFB0724M-A

25.4 mm

90.26 g

0.199 lb

24 VDC

70 mm

2.16 W

0.14 in H2O

34.9 Pa

27.6 VDC

14 VDC

31.5 dB

3100 RPM

Plastic

28.9 CFM

0.809 mł/min

Plastic

Ball

CE, CSA, UL, VDE

Tubeaxial

2 Wire Leads

0.09 A

Delta Electronics

AFB0724MB

47.17 g

0.104 lb

24 VDC

70 mm

2.16 W

0.123 in H2O

30.6 Pa

27.6 VDC

14 VDC

31 dB(A)

3300 RPM

Plastic

28.2 CFM

0.79 mł/min

Plastic

Ball

Tubeaxial

2 Wire Leads

0.09 A

15 mm

Delta Electronics

AFB0724M

25.4 mm

24 VDC

70 mm

1.2 W

28 dB

Plastic

Ball

Tubeaxial

2 Wire Leads

Delta Electronics

AFB0724LB

47.17 g

0.104 lb

24 VDC

70 mm

1.44 W

27.6 VDC

14 VDC

26.5 dB

2800 RPM

Plastic

23.4 CFM

0.655 m³/min

Plastic

Ball

CE, CSA, UL, VDE

Tubeaxial

2 Wire Leads

60 mA

15 mm

Delta Electronics

AFB0724HH-AF00

25.4 mm

90.26 g

0.199 lb

24 VDC

70 mm

4.32 W

0.311 in H2O

77.5 Pa

26.4 VDC

14 VDC

44 dB

Plastic

44 CFM

1.23 m³/min

Plastic

Ball

70000 Hrs

CE, CSA, UL, VDE

Tubeaxial

3 Wire Leads

70 °C

-10 °C

0.18 A

Locked Rotor Protection, Speed Sensor (Tach)

Part	Width [y]	Weight	Weight	Voltage - Rated	Size / Dimension [y]	Size / Dimension [x]	Power (Watts)	Static Pressure	Static Pressure	Voltage Range [Max]	Voltage Range [Min]	Noise	RPM	Material - Blade	Air Flow	Air Flow	Material - Frame	Bearing Type	Lifetime @ Temp.	Approval Agency	Fan Type	Termination	Operating Temperature [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Operating Temperature [Min]	Current Rating (Amps)	Features	Width [x]
Delta Electronics AFB0724H-A	25.4 mm	90.26 g	0.199 lb	24 VDC	70 mm	70 mm	3.12 W	0.217 in H2O	54.1 Pa	26.4 VDC	14 VDC	37.5 dB(A)	3900 RPM	Plastic	36.3 CFM	1.02 m³/min	Plastic	Ball	70000 Hrs	CE, CSA, UL, VDE	Tubeaxial	2 Wire Leads	70 °C	70 °C	-10 °C	-10 °C
Delta Electronics AFB0724VH-AF00	25.4 mm	90.26 g	0.199 lb	24 VDC	70 mm	70 mm	6.48 W	0.433 in H2O	107.9 Pa	26.4 VDC	14 VDC	47.5 dB	5500 RPM	Plastic	52 CFM	1.46 mł/min	Plastic	Ball	70000 Hrs	CE, CSA, UL, VDE	Tubeaxial	3 Wire Leads	70 °C	70 °C	-10 °C	-10 °C	270 mA	Locked Rotor Protection, Speed Sensor (Tach)
Delta Electronics AFB0724HHB-F00		47.17 g	0.104 lb	24 VDC	70 mm	70 mm	3.6 W	0.21 in H2O	52.3 Pa	27.6 VDC	14 VDC	38.5 dB	4300 RPM	Plastic	37.5 CFM	1.05 m³/min	Plastic	Ball	70000 Hrs	CE, CSA, UL, VDE	Tubeaxial	3 Wire Leads	70 °C	70 °C	-10 °C	-10 °C	150 mA	Locked Rotor Protection, Speed Sensor (Tach)	15 mm
Delta Electronics AFB0724HH-AR00	25.4 mm	90.26 g	0.199 lb	24 VDC	70 mm	70 mm	4.32 W	0.311 in H2O	77.5 Pa	26.4 VDC	14 VDC	44 dB		Plastic	44 CFM	1.23 m³/min	Plastic	Ball	70000 Hrs	CE, CSA, UL, VDE	Tubeaxial	3 Wire Leads	70 °C	70 °C	-10 °C	-10 °C	0.18 A	Locked Rotor Sensor
Delta Electronics AFB0724M-A	25.4 mm	90.26 g	0.199 lb	24 VDC	70 mm	70 mm	2.16 W	0.14 in H2O	34.9 Pa	27.6 VDC	14 VDC	31.5 dB	3100 RPM	Plastic	28.9 CFM	0.809 mł/min	Plastic	Ball		CE, CSA, UL, VDE	Tubeaxial	2 Wire Leads					0.09 A
Delta Electronics AFB0724MB		47.17 g	0.104 lb	24 VDC	70 mm	70 mm	2.16 W	0.123 in H2O	30.6 Pa	27.6 VDC	14 VDC	31 dB(A)	3300 RPM	Plastic	28.2 CFM	0.79 mł/min	Plastic	Ball			Tubeaxial	2 Wire Leads					0.09 A		15 mm
Delta Electronics AFB0724M	25.4 mm			24 VDC	70 mm	70 mm	1.2 W					28 dB		Plastic			Plastic	Ball			Tubeaxial	2 Wire Leads
Delta Electronics AFB0724LB		47.17 g	0.104 lb	24 VDC	70 mm	70 mm	1.44 W			27.6 VDC	14 VDC	26.5 dB	2800 RPM	Plastic	23.4 CFM	0.655 m³/min	Plastic	Ball		CE, CSA, UL, VDE	Tubeaxial	2 Wire Leads					60 mA		15 mm
Delta Electronics AFB0724HH-AF00	25.4 mm	90.26 g	0.199 lb	24 VDC	70 mm	70 mm	4.32 W	0.311 in H2O	77.5 Pa	26.4 VDC	14 VDC	44 dB		Plastic	44 CFM	1.23 m³/min	Plastic	Ball	70000 Hrs	CE, CSA, UL, VDE	Tubeaxial	3 Wire Leads	70 °C	70 °C	-10 °C	-10 °C	0.18 A	Locked Rotor Protection, Speed Sensor (Tach)
