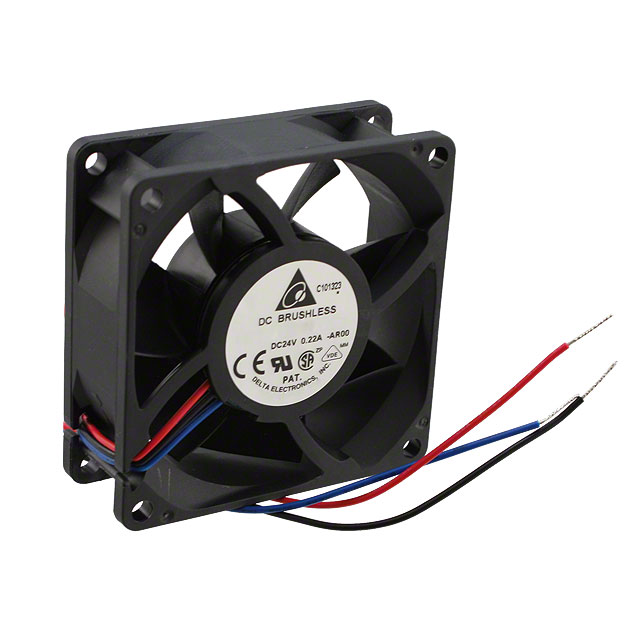

AFB0724HH-AR00

Delta Electronics

FAN AXIAL 70X25.4MM 24VDC WIRE

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsFans, Electric - Component UL Cert Fans VDE Cert +2

AFB0724HH-AR00

Delta Electronics

FAN AXIAL 70X25.4MM 24VDC WIRE

Deep-Dive with AI

DocumentsFans, Electric - Component UL Cert Fans VDE Cert +2

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	162	$ 9.69

Description

General part information

AFB0724 Series

Fan Tubeaxial 24VDC Square - 70mm L x 70mm H Ball 44.0 CFM (1.23m³/min) 3 Wire Leads

Documents

Technical documentation and resources

Fans, Electric - Component UL Cert

Fans VDE Cert

Fans, Blowers CSA Cert

Datasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	AFB0724HH-AR00	AFB0724 Series

Air Flow	44 CFM	23.4 - 52 CFM
Air Flow	1.23 m³/min	0.655 - 1.46 m³/min
Approval Agency	UL, CE, VDE, CSA	UL, CE, VDE, CSA
Bearing Type	Ball	Ball
Current Rating (Amps)	0.18 A	0.09 - 270 mA
Fan Type	Tubeaxial	Tubeaxial
Features	Locked Rotor Sensor	Speed Sensor (Tach), Locked Rotor Protection, Locked Rotor Sensor
Lifetime @ Temp.	70000 Hrs	70000 Hrs
Material - Blade	Plastic	Plastic
Material - Frame	Plastic	Plastic
Noise	44 dB	26.5 - 47.5 dB(A)
Operating Temperature [Max]	70 °C	70 °C
Operating Temperature [Max]	70 °C	70 °C
Operating Temperature [Min]	-10 °C	-10 °C
Operating Temperature [Min]	-10 °C	-10 °C
Power (Watts)	4.32 W	1.2 - 6.48 W
RPM	-	2800 - 5500 RPM
Size / Dimension [x]	70 mm	70 mm
Size / Dimension [y]	70 mm	70 mm
Static Pressure	77.5 Pa	30.6 - 107.9 Pa
Static Pressure	0.311 in H2O	0.123 - 0.433 in H2O
Termination	3 Wire Leads	2 Wire Leads, 3 Wire Leads
Voltage - Rated	24 VDC	24 VDC
Voltage Range [Max]	26.4 VDC	26.4 - 27.6 VDC
Voltage Range [Min]	14 VDC	14 VDC
Weight	90.26 g	47.17 - 90.26 g
Weight	0.199 lb	0.104 - 0.199 lb
Width	-	15 mm
Width [y]	25.4 mm	25.4 mm

AFB0724 Series

DC FAN AXIAL BALL BEARING 24V 14V TO 26.4V 36.3CFM 37.5DB 70 X 70 X 25.4MM

Part	Width [y]	Weight	Weight	Voltage - Rated	Size / Dimension [y]	Size / Dimension [x]	Power (Watts)	Static Pressure	Static Pressure	Voltage Range [Max]	Voltage Range [Min]	Noise	RPM	Material - Blade	Air Flow	Air Flow	Material - Frame	Bearing Type	Lifetime @ Temp.	Approval Agency	Fan Type	Termination	Operating Temperature [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Operating Temperature [Min]	Current Rating (Amps)	Features	Width [x]
Delta Electronics AFB0724H-A	25.4 mm	90.26 g	0.199 lb	24 VDC	70 mm	70 mm	3.12 W	0.217 in H2O	54.1 Pa	26.4 VDC	14 VDC	37.5 dB(A)	3900 RPM	Plastic	36.3 CFM	1.02 m³/min	Plastic	Ball	70000 Hrs	CE, CSA, UL, VDE	Tubeaxial	2 Wire Leads	70 °C	70 °C	-10 °C	-10 °C
Delta Electronics AFB0724VH-AF00	25.4 mm	90.26 g	0.199 lb	24 VDC	70 mm	70 mm	6.48 W	0.433 in H2O	107.9 Pa	26.4 VDC	14 VDC	47.5 dB	5500 RPM	Plastic	52 CFM	1.46 mł/min	Plastic	Ball	70000 Hrs	CE, CSA, UL, VDE	Tubeaxial	3 Wire Leads	70 °C	70 °C	-10 °C	-10 °C	270 mA	Locked Rotor Protection, Speed Sensor (Tach)
Delta Electronics AFB0724HHB-F00		47.17 g	0.104 lb	24 VDC	70 mm	70 mm	3.6 W	0.21 in H2O	52.3 Pa	27.6 VDC	14 VDC	38.5 dB	4300 RPM	Plastic	37.5 CFM	1.05 m³/min	Plastic	Ball	70000 Hrs	CE, CSA, UL, VDE	Tubeaxial	3 Wire Leads	70 °C	70 °C	-10 °C	-10 °C	150 mA	Locked Rotor Protection, Speed Sensor (Tach)	15 mm
Delta Electronics AFB0724HH-AR00	25.4 mm	90.26 g	0.199 lb	24 VDC	70 mm	70 mm	4.32 W	0.311 in H2O	77.5 Pa	26.4 VDC	14 VDC	44 dB		Plastic	44 CFM	1.23 m³/min	Plastic	Ball	70000 Hrs	CE, CSA, UL, VDE	Tubeaxial	3 Wire Leads	70 °C	70 °C	-10 °C	-10 °C	0.18 A	Locked Rotor Sensor
Delta Electronics AFB0724M-A	25.4 mm	90.26 g	0.199 lb	24 VDC	70 mm	70 mm	2.16 W	0.14 in H2O	34.9 Pa	27.6 VDC	14 VDC	31.5 dB	3100 RPM	Plastic	28.9 CFM	0.809 mł/min	Plastic	Ball		CE, CSA, UL, VDE	Tubeaxial	2 Wire Leads					0.09 A
Delta Electronics AFB0724MB		47.17 g	0.104 lb	24 VDC	70 mm	70 mm	2.16 W	0.123 in H2O	30.6 Pa	27.6 VDC	14 VDC	31 dB(A)	3300 RPM	Plastic	28.2 CFM	0.79 mł/min	Plastic	Ball			Tubeaxial	2 Wire Leads					0.09 A		15 mm
Delta Electronics AFB0724M	25.4 mm			24 VDC	70 mm	70 mm	1.2 W					28 dB		Plastic			Plastic	Ball			Tubeaxial	2 Wire Leads
Delta Electronics AFB0724LB		47.17 g	0.104 lb	24 VDC	70 mm	70 mm	1.44 W			27.6 VDC	14 VDC	26.5 dB	2800 RPM	Plastic	23.4 CFM	0.655 m³/min	Plastic	Ball		CE, CSA, UL, VDE	Tubeaxial	2 Wire Leads					60 mA		15 mm
Delta Electronics AFB0724HH-AF00	25.4 mm	90.26 g	0.199 lb	24 VDC	70 mm	70 mm	4.32 W	0.311 in H2O	77.5 Pa	26.4 VDC	14 VDC	44 dB		Plastic	44 CFM	1.23 m³/min	Plastic	Ball	70000 Hrs	CE, CSA, UL, VDE	Tubeaxial	3 Wire Leads	70 °C	70 °C	-10 °C	-10 °C	0.18 A	Locked Rotor Protection, Speed Sensor (Tach)
