CY54FCT841ATDMB

Active

Texas Instruments

10-BIT BUS-INTERFACE D-TYPE LATCHES WITH 3-STATE OUTPUTS

Deep-Dive with AI

Search across all available documentation for this part.

Documents10-Bit Latches With 3-State Outputs datasheet (Rev. A)

CY54FCT841ATDMB

Active

Texas Instruments

10-BIT BUS-INTERFACE D-TYPE LATCHES WITH 3-STATE OUTPUTS

Deep-Dive with AI

Documents10-Bit Latches With 3-State Outputs datasheet (Rev. A)

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	CY54FCT841ATDMB

Circuit	10:10
Current - Output High, Low [custom]	12 mA
Current - Output High, Low [custom]	32 mA
Delay Time - Propagation	13 ns
Independent Circuits	1
Logic Type	D-Type Transparent Latch
Mounting Type	Through Hole
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Output Type	Tri-State, Non-Inverted

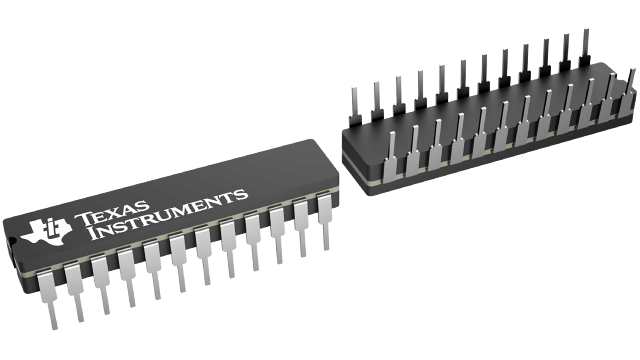

Package / Case	24-CDIP
Supplier Device Package	24-CDIP
Voltage - Supply [Max]	5.5 V
Voltage - Supply [Min]	4.5 V

54FCT841 Series

10-Bit Bus-Interface D-Type Latches with 3-State Outputs

Part	Delay Time - Propagation	Operating Temperature [Min]	Operating Temperature [Max]	Output Type	Package / Case	Circuit	Supplier Device Package	Voltage - Supply [Min]	Voltage - Supply [Max]	Independent Circuits	Logic Type	Mounting Type	Current - Output High, Low [custom]	Current - Output High, Low [custom]
Texas Instruments CY54FCT841ATDMB	13 ns	-55 °C	125 °C	Non-Inverted, Tri-State	24-CDIP	10:10	24-CDIP	4.5 V	5.5 V	1	D-Type Transparent Latch	Through Hole	12 mA	32 mA

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	11	$ 28.79
Texas Instruments	TUBE	1	$ 35.06
		100	$ 31.17
		250	$ 25.62
		1000	$ 22.92

Description

General part information

54FCT841 Series

The \x92FCT841T bus-interface latches are designed to eliminate additional packages required to buffer existing latches and provide additional data width for wider address/data paths or buses carrying parity. The \x92FCT841T devices are buffered 10-bit-wide versions of the FCT373 function.

The \x92FCT841T devices\x92 high-performance interface is designed for high-capacitance-load drive capability, while providing low-capacitance bus loading at both inputs and outputs. Outputs are designed for low-capacitance bus loading in the high-impedance state.

These devices are fully specified for partial-power-down applications using Ioff. The Ioffcircuitry disables the outputs, preventing damaging current backflow through the device when it is powered down.

Documents

Technical documentation and resources

10-Bit Latches With 3-State Outputs datasheet (Rev. A)

Data sheet
