M80-4174898

Active

Harwin Inc.

24+24 POS. FEMALE DIL CABLE HOUSING, GUIDE PIN PANEL MOUNT ROHS COMPLIANT: YES

Deep-Dive with AI

DocumentsManufacturer Catalogue EN Datasheet +3

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	M80-4174898

Color	Black
Connector Type	Receptacle
Contact Termination	Crimp
Contact Type	Female Socket
Fastening Type	Push-Pull
Features	Polarizing Key, Mounting Flange, Mating Flange
Insulation Material	Polyphenylene Sulfide (PPS), Glass Filled
Note	Contacts Not Included
Number of Positions	48
Number of Rows	2
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Pitch [x]	0.079 in
Pitch [x]	2 mm
Row Spacing	2 mm
Row Spacing	0.079 in

M80-417 Series

Part	Features	Contact Type	Fastening Type	Color	Insulation Material	Number of Positions	Contact Termination	Number of Rows	Pitch [x]	Pitch [x]	Connector Type	Note	Operating Temperature [Min]	Operating Temperature [Max]	Row Spacing	Row Spacing	Number of Positions
Harwin Inc. M80-4172098	Mating Flange Mounting Flange Polarizing Key	Female Socket	Push-Pull	Black	Polyphenylene Sulfide (PPS) Glass Filled	20	Crimp	2	0.079 in	2 mm	Receptacle	Contacts Not Included	-55 °C	125 °C	2 mm	0.079 in
Harwin Inc. M80-4170898	Mating Flange Mounting Flange Polarizing Key	Female Socket	Push-Pull	Black	Polyphenylene Sulfide (PPS) Glass Filled	8	Crimp	2	0.079 in	2 mm	Receptacle	Contacts Not Included	-55 °C	125 °C	2 mm	0.079 in
Harwin Inc. M80-4172698	Mating Flange Mounting Flange Polarizing Key	Female Socket	Push-Pull	Black	Polyphenylene Sulfide (PPS) Glass Filled	26	Crimp	2	0.079 in	2 mm	Receptacle	Contacts Not Included	-55 °C	125 °C	2 mm	0.079 in
Harwin Inc. M80-4173298	Mating Flange Mounting Flange Polarizing Key	Female Socket	Push-Pull	Black	Polyphenylene Sulfide (PPS) Glass Filled		Crimp	2	0.079 in	2 mm	Receptacle	Contacts Not Included	-55 °C	125 °C	2 mm	0.079 in
Harwin Inc. M80-4173098	Mating Flange Mounting Flange Polarizing Key	Female Socket	Push-Pull	Black	Polyphenylene Sulfide (PPS) Glass Filled	30	Crimp	2	0.079 in	2 mm	Receptacle	Contacts Not Included	-55 °C	125 °C	2 mm	0.079 in
Harwin Inc. M80-4174898	Mating Flange Mounting Flange Polarizing Key	Female Socket	Push-Pull	Black	Polyphenylene Sulfide (PPS) Glass Filled	48	Crimp	2	0.079 in	2 mm	Receptacle	Contacts Not Included	-55 °C	125 °C	2 mm	0.079 in
Harwin Inc. M80-4171898	Mating Flange Mounting Flange Polarizing Key	Female Socket	Push-Pull	Black	Polyphenylene Sulfide (PPS) Glass Filled	18	Crimp	2	0.079 in	2 mm	Receptacle	Contacts Not Included	-55 °C	125 °C	2 mm	0.079 in
Harwin Inc. M80-4170698	Mating Flange Mounting Flange Polarizing Key	Female Socket	Push-Pull	Black	Polyphenylene Sulfide (PPS) Glass Filled	6	Crimp	2	0.079 in	2 mm	Receptacle	Contacts Not Included	-55 °C	125 °C	2 mm	0.079 in
Harwin Inc. M80-4171698	Mating Flange Mounting Flange Polarizing Key	Female Socket	Push-Pull	Black	Polyphenylene Sulfide (PPS) Glass Filled		Crimp	2	0.079 in	2 mm	Receptacle	Contacts Not Included	-55 °C	125 °C	2 mm	0.079 in	16
Harwin Inc. M80-4170498	Mating Flange Mounting Flange Polarizing Key	Female Socket	Push-Pull	Black	Polyphenylene Sulfide (PPS) Glass Filled	4	Crimp	2	0.079 in	2 mm	Receptacle	Contacts Not Included	-55 °C	125 °C	2 mm	0.079 in

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	1	$ 6.00
		10	$ 5.45
		25	$ 5.16
		50	$ 5.04
		100	$ 4.80
Newark	Each	50	$ 5.73
		100	$ 5.35
		250	$ 4.94
		500	$ 4.56
		1000	$ 4.18
		2500	$ 3.77

Description

General part information

M80-417 Series

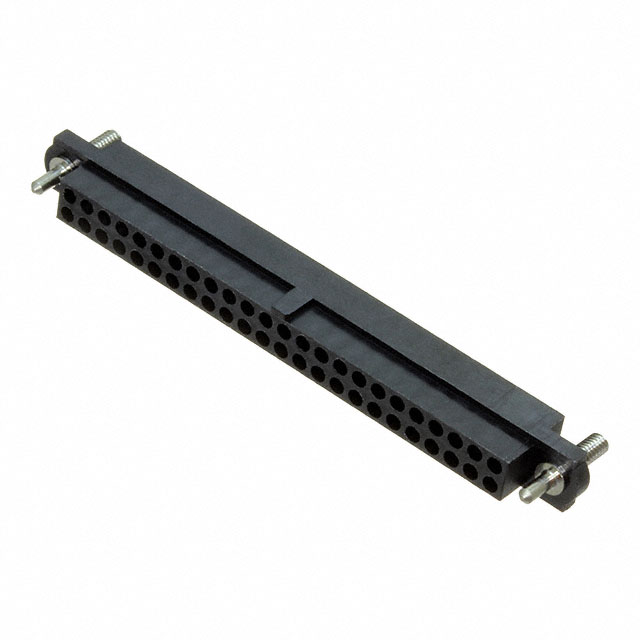

48 Rectangular Connectors - Housings Receptacle Black 0.079" (2.00mm)
