Description

General part information

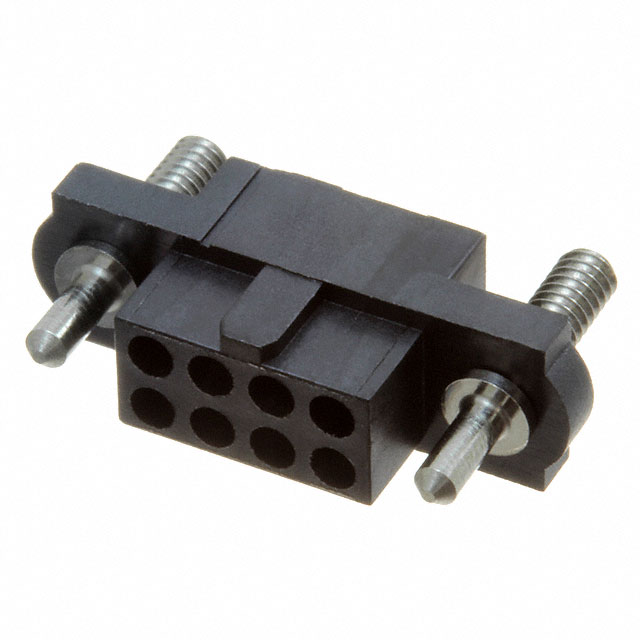

J-Tek Series

8 Rectangular Connectors - Housings Receptacle Black 0.079" (2.00mm)

Technical Specifications

Parameters and characteristics for this part

Specification	M80-4170898

Color	Black
Connector Type	Receptacle
Contact Termination	Crimp
Contact Type	Female Socket
Fastening Type	Push-Pull
Features	Polarizing Key, Mating Flange, Mounting Flange
Insulation Material	Polyphenylene Sulfide (PPS), Glass Filled
Mounting Type	Panel Mount
Note	Contacts Not Included
Number of Positions	8
Number of Rows	2
Operating Temperature (Max)	125 °C
Operating Temperature (Min)	-55 °C
Pitch	0.079 in
Row Spacing	0.079 in

J-Tek Series

...

Part	Connector Type	Contact Type	Number of Positions	Mounting Type	Features	Insulation Material	Row Spacing	Pitch	Color	Operating Temperature (Max)	Operating Temperature (Min)	Fastening Type	Number of Rows	Contact Termination	Note	Mated Stacking Height Options	Contact Finish Thickness - Post	Row Spacing - Mating	Pitch - Mating	Contact Finish - Mating	Number of Positions Loaded	Contact Finish Thickness - Mating	Shrouding	Contact Material	Insulation Height	Style	Current Rating	Contact Length - Post	Termination	Insulation Color	Voltage Rating	Voltage Rating (Type)	Contact Shape	Material Flammability Rating	Contact Finish - Post	Applications
Harwin Inc. M80-4134098	Receptacle	Female Socket	40	Free Hanging (In-Line)	Mating Flange Polarizing Key	Glass Filled Polyphenylene Sulfide (PPS)	0.079 in	0.079 in	Black	125 °C	-55 °C	Screw Lock	2	Crimp	Contacts Not Included
Harwin Inc. M80-5003842	Header	Male Pin	38	Through Hole	Keying Slot Mating Flange	Glass Filled Polyphenylene Sulfide (PPS)				125 °C	-55 °C	Threaded	2			7.3mm 7.8mm	12 µin	0.079 in	0.079 in	Gold	All	29.5 Ąin	Shrouded - 4 Wall	Phosphor Bronze	0.22 in	Board Board or Cable	2.2 A	0.13 in	Solder	Black	800 V	DC	Circular	UL94 V-0	Tin
Harwin Inc. M80-5T15042MC	Header	Male Pin	50	Through Hole	Keying Slot Mating Flange	Glass Filled Polyphenylene Sulfide (PPS)				121 °C	-55 °C	Push-Turn Lock	2			10.75mm 13.35mm 14.75mm 7.3mm 7.7mm 9.75mm	118.1 µin	0.079 in	0.079 in	Gold	All	29.5 Ąin	Shrouded - 4 Wall	Phosphor Bronze	0.22 in	Board Board or Cable	2.2 A	0.13 in	Solder	Black	120 V		Circular	UL94 V-0	Tin
Harwin Inc. M80-4201405	Receptacle	Female Socket	14	Through Hole	Jackscrews Mating Flange Mounting Flange Polarizing Key	Glass Filled Polyphenylene Sulfide (PPS)				125 °C	-55 °C	Screw Lock	2			7.3mm 7.55mm	10 µin	0.079 in	0.079 in	Gold	All	12 µin		Beryllium Copper	0.205 in	Board Board or Cable		0.118 in	Solder	Black	120 V		Circular	UL94 V-0	Gold	Automotive General Purpose Military
Harwin Inc. M80-4170898	Receptacle	Female Socket	8	Panel Mount	Mating Flange Mounting Flange Polarizing Key	Glass Filled Polyphenylene Sulfide (PPS)	0.079 in	0.079 in	Black	125 °C	-55 °C	Push-Pull	2	Crimp	Contacts Not Included
