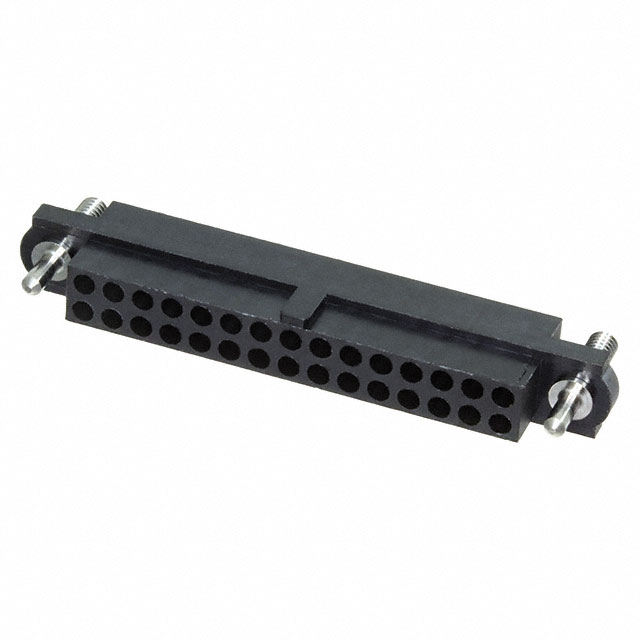

Specification	M80-4173098

Color	Black
Connector Type	Receptacle
Contact Termination	Crimp
Contact Type	Female Socket
Fastening Type	Push-Pull
Features	Polarizing Key, Mating Flange, Mounting Flange
Insulation Material	Polyphenylene Sulfide (PPS), Glass Filled
Mounting Type	Panel Mount
Note	Contacts Not Included
Number of Positions	30
Number of Rows	2
Operating Temperature (Max)	125 °C
Operating Temperature (Min)	-55 °C
Pitch	0.079 in
Row Spacing	0.079 in

M80-417 Series

Part	Row Spacing	Color	Number of Rows	Connector Type	Contact Type	Insulation Material	Pitch	Contact Termination	Operating Temperature (Max)	Operating Temperature (Min)	Fastening Type	Features	Number of Positions	Mounting Type	Note
Harwin Inc. M80-4172098	0.079 in	Black	2	Receptacle	Female Socket	Glass Filled Polyphenylene Sulfide (PPS)	0.079 in	Crimp	125 °C	-55 °C	Push-Pull	Mating Flange Mounting Flange Polarizing Key	20	Panel Mount	Contacts Not Included
Harwin Inc. M80-4172698	0.079 in	Black	2	Receptacle	Female Socket	Glass Filled Polyphenylene Sulfide (PPS)	0.079 in	Crimp	125 °C	-55 °C	Push-Pull	Mating Flange Mounting Flange Polarizing Key	26	Panel Mount	Contacts Not Included
Harwin Inc. M80-4172898	0.079 in	Black	2	Receptacle	Female Socket	Glass Filled Polyphenylene Sulfide (PPS)	0.079 in	Crimp	125 °C	-55 °C	Push-Pull	Mating Flange Mounting Flange Polarizing Key	28	Panel Mount	Contacts Not Included
Harwin Inc. M80-4173098	0.079 in	Black	2	Receptacle	Female Socket	Glass Filled Polyphenylene Sulfide (PPS)	0.079 in	Crimp	125 °C	-55 °C	Push-Pull	Mating Flange Mounting Flange Polarizing Key	30	Panel Mount	Contacts Not Included
Harwin Inc. M80-4174698	0.079 in	Black	2	Receptacle	Female Socket	Glass Filled Polyphenylene Sulfide (PPS)	0.079 in	Crimp	125 °C	-55 °C	Push-Pull	Mating Flange Mounting Flange Polarizing Key	46	Panel Mount	Contacts Not Included
Harwin Inc. M80-4174898	0.079 in	Black	2	Receptacle	Female Socket	Glass Filled Polyphenylene Sulfide (PPS)	0.079 in	Crimp	125 °C	-55 °C	Push-Pull	Mating Flange Mounting Flange Polarizing Key	48	Panel Mount	Contacts Not Included
Harwin Inc. M80-4171898	0.079 in	Black	2	Receptacle	Female Socket	Glass Filled Polyphenylene Sulfide (PPS)	0.079 in	Crimp	125 °C	-55 °C	Push-Pull	Mating Flange Mounting Flange Polarizing Key	18	Panel Mount	Contacts Not Included
Harwin Inc. M80-4170698	0.079 in	Black	2	Receptacle	Female Socket	Glass Filled Polyphenylene Sulfide (PPS)	0.079 in	Crimp	125 °C	-55 °C	Push-Pull	Mating Flange Mounting Flange Polarizing Key	6	Panel Mount	Contacts Not Included
Harwin Inc. M80-4171698	0.079 in	Black	2	Receptacle	Female Socket	Glass Filled Polyphenylene Sulfide (PPS)	0.079 in	Crimp	125 °C	-55 °C	Push-Pull	Mating Flange Mounting Flange Polarizing Key	16	Panel Mount	Contacts Not Included
Harwin Inc. M80-4170498	0.079 in	Black	2	Receptacle	Female Socket	Glass Filled Polyphenylene Sulfide (PPS)	0.079 in	Crimp	125 °C	-55 °C	Push-Pull	Mating Flange Mounting Flange Polarizing Key	4	Panel Mount	Contacts Not Included
