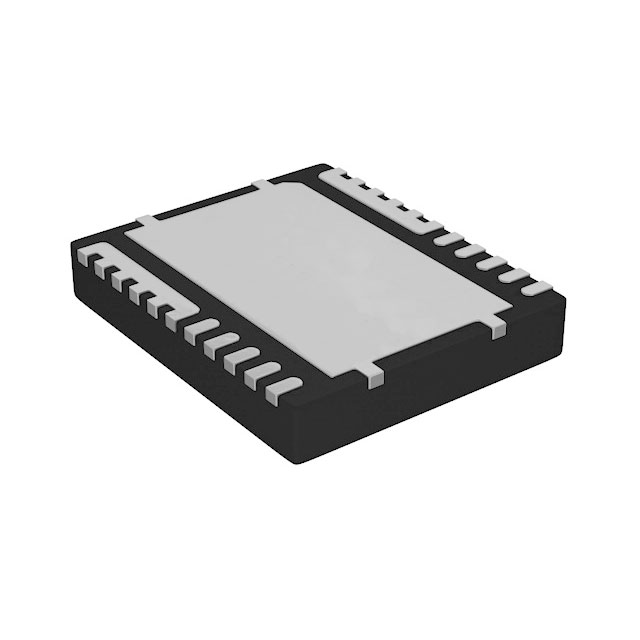

CSD95378BQ5MC
ActiveTexas Instruments
60A SYNCHRONOUS BUCK NEXFET™ SMART POWER STAGE WITH TAO OFFSET AND DUALCOOL™ PACKAGE
Deep-Dive with AI
Search across all available documentation for this part.
CSD95378BQ5MC
ActiveTexas Instruments
60A SYNCHRONOUS BUCK NEXFET™ SMART POWER STAGE WITH TAO OFFSET AND DUALCOOL™ PACKAGE
Deep-Dive with AI
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | CSD95378BQ5MC | CSD95378 Series |
|---|---|---|
| Applications | Synchronous Buck Converters | Synchronous Buck Converters |
| Current - Output / Channel | 60 A | 60 A |
| Fault Protection | UVLO, Over Temperature, Current Limiting, Shoot-Through, Short Circuit | UVLO, Over Temperature, Current Limiting, Shoot-Through, Short Circuit |
| Features | Status Flag, Bootstrap Circuit | Status Flag, Bootstrap Circuit |
| Interface | PWM | PWM |
| Load Type | Inductive | Inductive |
| Mounting Type | Surface Mount | Surface Mount |
| Operating Temperature [Max] | 150 °C | 150 °C |
| Operating Temperature [Min] | -55 °C | -55 °C |
| Package / Case | 12-PowerTFDFN | 12-PowerLFDFN, 12-PowerTFDFN |
| Supplier Device Package | 12-VSON | 12-LSON-CLIP (5x6), 12-VSON |
| Technology | Power MOSFET | Power MOSFET |
| Voltage - Load [Max] | 16 V | 16 V |
| Voltage - Load [Min] | 4.5 V | 4.5 V |
| Voltage - Supply [Max] | 5.5 V | 5.5 V |
| Voltage - Supply [Min] | 4.5 V | 4.5 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
CSD95378 Series
60A Synchronous Buck NexFET™ Smart Power Stage with TAO offset
| Part | Voltage - Load [Min] | Voltage - Load [Max] | Current - Output / Channel | Load Type | Interface | Voltage - Supply [Max] | Voltage - Supply [Min] | Mounting Type | Operating Temperature [Max] | Operating Temperature [Min] | Features | Package / Case | Supplier Device Package | Technology | Fault Protection | Applications |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Texas Instruments CSD95378BQ5MThe CSD95378BQ5M NexFET™ smart power stage is a highly optimized design for use in a high-power, high-density synchronous buck converter. This product integrates the driver IC and power MOSFETs to complete the power stage switching function. This combination produces high-current, high-efficiency, and high speed switching capability in a small5-mm × 6-mm outline package. It also integrates the accurate current sensing and temperature sensing functionality to simplify system design and improve accuracy. In addition, the PCB footprint is optimized to help reduce design time and simplify the completion of the overall system design.
The CSD95378BQ5M NexFET™ smart power stage is a highly optimized design for use in a high-power, high-density synchronous buck converter. This product integrates the driver IC and power MOSFETs to complete the power stage switching function. This combination produces high-current, high-efficiency, and high speed switching capability in a small5-mm × 6-mm outline package. It also integrates the accurate current sensing and temperature sensing functionality to simplify system design and improve accuracy. In addition, the PCB footprint is optimized to help reduce design time and simplify the completion of the overall system design. | 4.5 V | 16 V | 60 A | Inductive | PWM | 5.5 V | 4.5 V | Surface Mount | 150 °C | -55 °C | Bootstrap Circuit, Status Flag | 12-PowerLFDFN | 12-LSON-CLIP (5x6) | Power MOSFET | Current Limiting, Over Temperature, Shoot-Through, Short Circuit, UVLO | Synchronous Buck Converters |
Texas Instruments CSD95378BQ5MTThe CSD95378BQ5M NexFET™ smart power stage is a highly optimized design for use in a high-power, high-density synchronous buck converter. This product integrates the driver IC and power MOSFETs to complete the power stage switching function. This combination produces high-current, high-efficiency, and high speed switching capability in a small5-mm × 6-mm outline package. It also integrates the accurate current sensing and temperature sensing functionality to simplify system design and improve accuracy. In addition, the PCB footprint is optimized to help reduce design time and simplify the completion of the overall system design.
The CSD95378BQ5M NexFET™ smart power stage is a highly optimized design for use in a high-power, high-density synchronous buck converter. This product integrates the driver IC and power MOSFETs to complete the power stage switching function. This combination produces high-current, high-efficiency, and high speed switching capability in a small5-mm × 6-mm outline package. It also integrates the accurate current sensing and temperature sensing functionality to simplify system design and improve accuracy. In addition, the PCB footprint is optimized to help reduce design time and simplify the completion of the overall system design. | 4.5 V | 16 V | 60 A | Inductive | PWM | 5.5 V | 4.5 V | Surface Mount | 150 °C | -55 °C | Bootstrap Circuit, Status Flag | 12-PowerLFDFN | 12-LSON-CLIP (5x6) | Power MOSFET | Current Limiting, Over Temperature, Shoot-Through, Short Circuit, UVLO | Synchronous Buck Converters |
Texas Instruments CSD95378BQ5MCTThe CSD95378BQ5MC NexFET™ smart power stage is a highly-optimized design for use in a high-power, high-density synchronous buck converter. This product integrates the driver IC and power MOSFETs to complete the power stage switching function. This combination produces high-current, high-efficiency, and high-speed switching capability in a small 5-mm × 6-mm outline package. It also integrates the accurate current sensing and temperature sensing functionality to simplify system design and improve accuracy. In addition, the PCB footprint is optimized to help reduce design time and simplify the completion of the overall system design.
The CSD95378BQ5MC NexFET™ smart power stage is a highly-optimized design for use in a high-power, high-density synchronous buck converter. This product integrates the driver IC and power MOSFETs to complete the power stage switching function. This combination produces high-current, high-efficiency, and high-speed switching capability in a small 5-mm × 6-mm outline package. It also integrates the accurate current sensing and temperature sensing functionality to simplify system design and improve accuracy. In addition, the PCB footprint is optimized to help reduce design time and simplify the completion of the overall system design. | 4.5 V | 16 V | 60 A | Inductive | PWM | 5.5 V | 4.5 V | Surface Mount | 150 °C | -55 °C | Bootstrap Circuit, Status Flag | 12-PowerTFDFN | 12-VSON | Power MOSFET | Current Limiting, Over Temperature, Shoot-Through, Short Circuit, UVLO | Synchronous Buck Converters |
Texas Instruments CSD95378BQ5MCThe CSD95378BQ5MC NexFET™ smart power stage is a highly-optimized design for use in a high-power, high-density synchronous buck converter. This product integrates the driver IC and power MOSFETs to complete the power stage switching function. This combination produces high-current, high-efficiency, and high-speed switching capability in a small 5-mm × 6-mm outline package. It also integrates the accurate current sensing and temperature sensing functionality to simplify system design and improve accuracy. In addition, the PCB footprint is optimized to help reduce design time and simplify the completion of the overall system design.
The CSD95378BQ5MC NexFET™ smart power stage is a highly-optimized design for use in a high-power, high-density synchronous buck converter. This product integrates the driver IC and power MOSFETs to complete the power stage switching function. This combination produces high-current, high-efficiency, and high-speed switching capability in a small 5-mm × 6-mm outline package. It also integrates the accurate current sensing and temperature sensing functionality to simplify system design and improve accuracy. In addition, the PCB footprint is optimized to help reduce design time and simplify the completion of the overall system design. | 4.5 V | 16 V | 60 A | Inductive | PWM | 5.5 V | 4.5 V | Surface Mount | 150 °C | -55 °C | Bootstrap Circuit, Status Flag | 12-PowerTFDFN | 12-VSON | Power MOSFET | Current Limiting, Over Temperature, Shoot-Through, Short Circuit, UVLO | Synchronous Buck Converters |
Description
General part information
CSD95378 Series
The CSD95378BQ5M NexFET™ smart power stage is a highly optimized design for use in a high-power, high-density synchronous buck converter. This product integrates the driver IC and power MOSFETs to complete the power stage switching function. This combination produces high-current, high-efficiency, and high speed switching capability in a small5-mm × 6-mm outline package. It also integrates the accurate current sensing and temperature sensing functionality to simplify system design and improve accuracy. In addition, the PCB footprint is optimized to help reduce design time and simplify the completion of the overall system design.
The CSD95378BQ5M NexFET™ smart power stage is a highly optimized design for use in a high-power, high-density synchronous buck converter. This product integrates the driver IC and power MOSFETs to complete the power stage switching function. This combination produces high-current, high-efficiency, and high speed switching capability in a small5-mm × 6-mm outline package. It also integrates the accurate current sensing and temperature sensing functionality to simplify system design and improve accuracy. In addition, the PCB footprint is optimized to help reduce design time and simplify the completion of the overall system design.
