M80-9412042

Active

Harwin Inc.

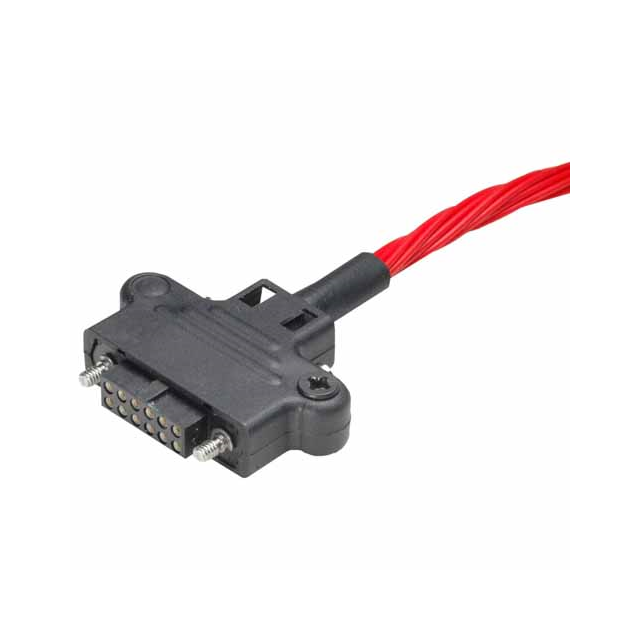

10+10 POS. FEMALE DIL 22AWG CABLE CONN. KIT WITH HOOD/BACKSHELL, JACKSCREWS ROHS COMPLIANT: YES

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsM80, M83 Series Spec Sheet M80-0110001 +2

M80-9412042

Active

Harwin Inc.

10+10 POS. FEMALE DIL 22AWG CABLE CONN. KIT WITH HOOD/BACKSHELL, JACKSCREWS ROHS COMPLIANT: YES

Deep-Dive with AI

DocumentsM80, M83 Series Spec Sheet M80-0110001 +2

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	M80-9412042

Cable Termination	Crimp
Color	Black
Connector Type	Receptacle
Contact Finish	Gold
Contact Finish Thickness	0.3 Ám
Contact Finish Thickness	11.8 Áin
Contact Type	Female Socket
Features	Cable Hood Kit, Jackscrews
Mounting Type	Free Hanging (In-Line)
Number of Positions	20
Number of Rows	2
Pitch [x]	0.079 in
Pitch [x]	2 mm
Row Spacing	2 mm
Row Spacing	0.079 in
Wire Gauge	22 AWG
Wire Type	Discrete

M80-941 Series

Part	Number of Positions	Features	Contact Finish	Pitch [x]	Pitch [x]	Contact Type	Row Spacing	Row Spacing	Mounting Type	Color	Contact Finish Thickness	Contact Finish Thickness	Wire Type	Cable Termination	Number of Rows	Wire Gauge	Connector Type
Harwin Inc. M80-9411442	14	Cable Hood Kit Jackscrews	Gold	0.079 in	2 mm	Female Socket	2 mm	0.079 in	Free Hanging (In-Line)	Black	0.3 Ám	11.8 Áin	Discrete	Crimp	2	22 AWG	Receptacle
Harwin Inc. M80-9414242	42	Cable Hood Kit Jackscrews	Gold	0.079 in	2 mm	Female Socket	2 mm	0.079 in	Free Hanging (In-Line)	Black	0.3 Ám	11.8 Áin	Discrete	Crimp	2	22 AWG	Receptacle
Harwin Inc. M80-9411405	14	Cable Hood Kit Jackscrews	Gold	0.079 in	2 mm	Female Socket	2 mm	0.079 in	Free Hanging (In-Line)	Black	0.3 Ám	11.8 Áin	Discrete	Crimp	2	22 AWG	Receptacle
Harwin Inc. M80-9413442	34	Cable Hood Kit Jackscrews	Gold	0.079 in	2 mm	Female Socket	2 mm	0.079 in	Free Hanging (In-Line)	Black	0.3 Ám	11.8 Áin	Discrete	Crimp	2	22 AWG	Receptacle
Harwin Inc. M80-9410605	6	Cable Hood Kit Jackscrews	Gold	0.079 in	2 mm	Female Socket	2 mm	0.079 in	Free Hanging (In-Line)	Black	0.3 Ám	11.8 Áin	Discrete	Crimp	2	22 AWG	Receptacle
Harwin Inc. M80-9411205	12	Cable Hood Kit Jackscrews	Gold	0.079 in	2 mm	Female Socket	2 mm	0.079 in	Free Hanging (In-Line)	Black	0.3 Ám	11.8 Áin	Discrete	Crimp	2	22 AWG	Receptacle
Harwin Inc. M80-9412605	26	Cable Hood Kit Jackscrews	Gold	0.079 in	2 mm	Female Socket	2 mm	0.079 in	Free Hanging (In-Line)	Black	0.3 Ám	11.8 Áin	Discrete	Crimp	2	22 AWG	Receptacle
Harwin Inc. M80-9414205	42	Cable Hood Kit Jackscrews	Gold	0.079 in	2 mm	Female Socket	2 mm	0.079 in	Free Hanging (In-Line)	Black	0.3 Ám	11.8 Áin	Discrete	Crimp	2	22 AWG	Receptacle
Harwin Inc. M80-9412042	20	Cable Hood Kit Jackscrews	Gold	0.079 in	2 mm	Female Socket	2 mm	0.079 in	Free Hanging (In-Line)	Black	0.3 Ám	11.8 Áin	Discrete	Crimp	2	22 AWG	Receptacle
Harwin Inc. M80-9410642	6	Cable Hood Kit Jackscrews	Gold	0.079 in	2 mm	Female Socket	2 mm	0.079 in	Free Hanging (In-Line)	Black	0.3 Ám	11.8 Áin	Discrete	Crimp	2	22 AWG	Receptacle
