M80-9411205

Active

Harwin Inc.

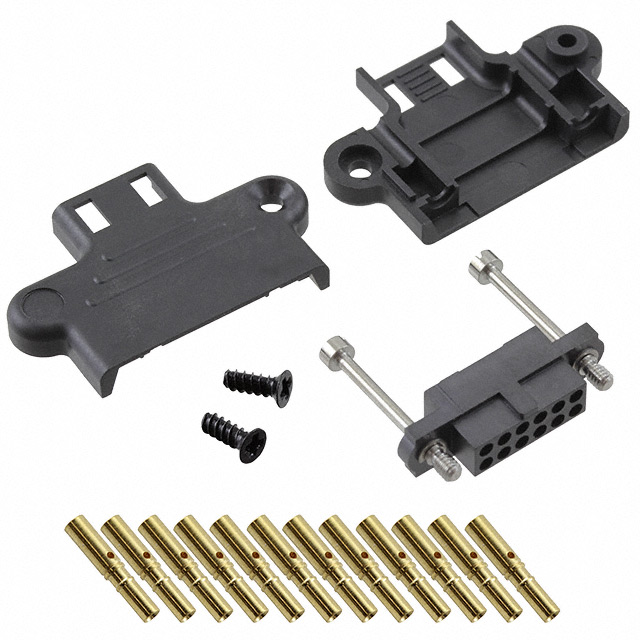

BOARD CONNECTOR, 12 CONTACT(S), 2 ROW(S), FEMALE, 0.079 INCH PITCH, CRIMP TERMINAL, M2X0.4, BLACK INSULATOR, PLUG, LEAD FREE

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsM80-001 M80-0110001 +2

M80-9411205

Active

Harwin Inc.

BOARD CONNECTOR, 12 CONTACT(S), 2 ROW(S), FEMALE, 0.079 INCH PITCH, CRIMP TERMINAL, M2X0.4, BLACK INSULATOR, PLUG, LEAD FREE

Deep-Dive with AI

DocumentsM80-001 M80-0110001 +2

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	M80-9411205

Cable Termination	Crimp
Color	Black
Connector Type	Receptacle
Contact Finish	Gold
Contact Finish Thickness	0.3 Ám
Contact Finish Thickness	11.8 Áin
Contact Type	Female Socket
Features	Cable Hood Kit, Jackscrews
Mounting Type	Free Hanging (In-Line)
Number of Positions	12
Number of Rows	2
Pitch [x]	0.079 in
Pitch [x]	2 mm
Row Spacing	2 mm
Row Spacing	0.079 in
Wire Gauge	22 AWG
Wire Type	Discrete

M80-941 Series

Part	Number of Positions	Features	Contact Finish	Pitch [x]	Pitch [x]	Contact Type	Row Spacing	Row Spacing	Mounting Type	Color	Contact Finish Thickness	Contact Finish Thickness	Wire Type	Cable Termination	Number of Rows	Wire Gauge	Connector Type
Harwin Inc. M80-9411442	14	Cable Hood Kit Jackscrews	Gold	0.079 in	2 mm	Female Socket	2 mm	0.079 in	Free Hanging (In-Line)	Black	0.3 Ám	11.8 Áin	Discrete	Crimp	2	22 AWG	Receptacle
Harwin Inc. M80-9414242	42	Cable Hood Kit Jackscrews	Gold	0.079 in	2 mm	Female Socket	2 mm	0.079 in	Free Hanging (In-Line)	Black	0.3 Ám	11.8 Áin	Discrete	Crimp	2	22 AWG	Receptacle
Harwin Inc. M80-9411405	14	Cable Hood Kit Jackscrews	Gold	0.079 in	2 mm	Female Socket	2 mm	0.079 in	Free Hanging (In-Line)	Black	0.3 Ám	11.8 Áin	Discrete	Crimp	2	22 AWG	Receptacle
Harwin Inc. M80-9413442	34	Cable Hood Kit Jackscrews	Gold	0.079 in	2 mm	Female Socket	2 mm	0.079 in	Free Hanging (In-Line)	Black	0.3 Ám	11.8 Áin	Discrete	Crimp	2	22 AWG	Receptacle
Harwin Inc. M80-9410605	6	Cable Hood Kit Jackscrews	Gold	0.079 in	2 mm	Female Socket	2 mm	0.079 in	Free Hanging (In-Line)	Black	0.3 Ám	11.8 Áin	Discrete	Crimp	2	22 AWG	Receptacle
Harwin Inc. M80-9411205	12	Cable Hood Kit Jackscrews	Gold	0.079 in	2 mm	Female Socket	2 mm	0.079 in	Free Hanging (In-Line)	Black	0.3 Ám	11.8 Áin	Discrete	Crimp	2	22 AWG	Receptacle
Harwin Inc. M80-9412605	26	Cable Hood Kit Jackscrews	Gold	0.079 in	2 mm	Female Socket	2 mm	0.079 in	Free Hanging (In-Line)	Black	0.3 Ám	11.8 Áin	Discrete	Crimp	2	22 AWG	Receptacle
Harwin Inc. M80-9414205	42	Cable Hood Kit Jackscrews	Gold	0.079 in	2 mm	Female Socket	2 mm	0.079 in	Free Hanging (In-Line)	Black	0.3 Ám	11.8 Áin	Discrete	Crimp	2	22 AWG	Receptacle
Harwin Inc. M80-9412042	20	Cable Hood Kit Jackscrews	Gold	0.079 in	2 mm	Female Socket	2 mm	0.079 in	Free Hanging (In-Line)	Black	0.3 Ám	11.8 Áin	Discrete	Crimp	2	22 AWG	Receptacle
Harwin Inc. M80-9410642	6	Cable Hood Kit Jackscrews	Gold	0.079 in	2 mm	Female Socket	2 mm	0.079 in	Free Hanging (In-Line)	Black	0.3 Ám	11.8 Áin	Discrete	Crimp	2	22 AWG	Receptacle

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 13.19
		10	$ 11.43
		25	$ 11.05
Newark	Each	100	$ 17.28
		250	$ 16.15
		500	$ 15.81
		1000	$ 15.02

Description

General part information

M80-941 Series

12 Position Rectangular Receptacle Connector Crimp Gold 22 AWG

Documents

Technical documentation and resources

M80-001

M80-0110001

M80, M83 Series Spec Sheet

Datasheet
