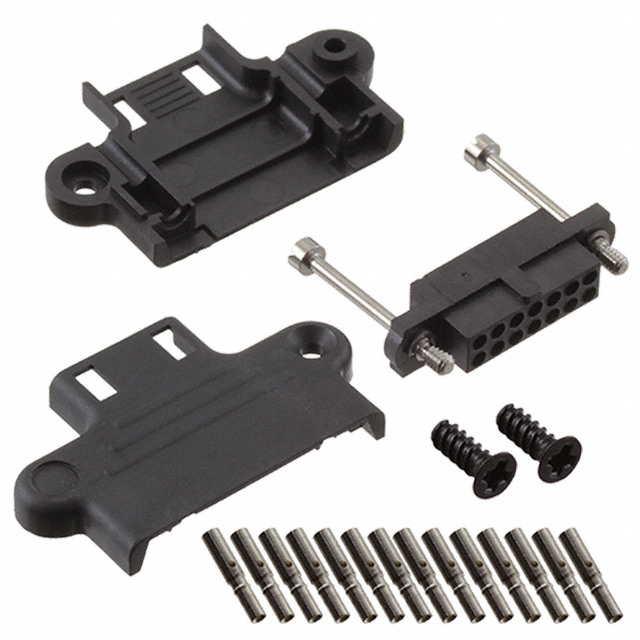

M80-9411405 - M80-9411442

M80-9411405

Active
Harwin Inc.

7+7 POS. FEMALE DIL 22AWG CABLE CONN. KIT WITH HOOD/BACKSHELL, JACKSCREWS ROHS COMPLIANT: YES

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsM80, M83 Series Spec SheetM80-0110001+2
M80-9411405 - M80-9411442

M80-9411405

Active
Harwin Inc.

7+7 POS. FEMALE DIL 22AWG CABLE CONN. KIT WITH HOOD/BACKSHELL, JACKSCREWS ROHS COMPLIANT: YES

Deep-Dive with AI

DocumentsM80, M83 Series Spec SheetM80-0110001+2

Technical Specifications

Parameters and characteristics for this part

SpecificationM80-9411405
Cable TerminationCrimp
ColorBlack
Connector TypeReceptacle
Contact FinishGold
Contact Finish Thickness0.3 Ám
Contact Finish Thickness11.8 Áin
Contact TypeFemale Socket
FeaturesCable Hood Kit, Jackscrews
Mounting TypeFree Hanging (In-Line)
Number of Positions14
Number of Rows2
Pitch [x]0.079 in
Pitch [x]2 mm
Row Spacing2 mm
Row Spacing0.079 in
Wire Gauge22 AWG
Wire TypeDiscrete

M80-941 Series

PartNumber of PositionsFeaturesContact FinishPitch [x]Pitch [x]Contact TypeRow SpacingRow SpacingMounting TypeColorContact Finish ThicknessContact Finish ThicknessWire TypeCable TerminationNumber of RowsWire GaugeConnector Type
Harwin Inc.
M80-9411442
14
Cable Hood Kit
Jackscrews
Gold
0.079 in
2 mm
Female Socket
2 mm
0.079 in
Free Hanging (In-Line)
Black
0.3 Ám
11.8 Áin
Discrete
Crimp
2
22 AWG
Receptacle
Harwin Inc.
M80-9414242
42
Cable Hood Kit
Jackscrews
Gold
0.079 in
2 mm
Female Socket
2 mm
0.079 in
Free Hanging (In-Line)
Black
0.3 Ám
11.8 Áin
Discrete
Crimp
2
22 AWG
Receptacle
Harwin Inc.
M80-9411405
14
Cable Hood Kit
Jackscrews
Gold
0.079 in
2 mm
Female Socket
2 mm
0.079 in
Free Hanging (In-Line)
Black
0.3 Ám
11.8 Áin
Discrete
Crimp
2
22 AWG
Receptacle
Harwin Inc.
M80-9413442
34
Cable Hood Kit
Jackscrews
Gold
0.079 in
2 mm
Female Socket
2 mm
0.079 in
Free Hanging (In-Line)
Black
0.3 Ám
11.8 Áin
Discrete
Crimp
2
22 AWG
Receptacle
Harwin Inc.
M80-9410605
6
Cable Hood Kit
Jackscrews
Gold
0.079 in
2 mm
Female Socket
2 mm
0.079 in
Free Hanging (In-Line)
Black
0.3 Ám
11.8 Áin
Discrete
Crimp
2
22 AWG
Receptacle
Harwin Inc.
M80-9411205
12
Cable Hood Kit
Jackscrews
Gold
0.079 in
2 mm
Female Socket
2 mm
0.079 in
Free Hanging (In-Line)
Black
0.3 Ám
11.8 Áin
Discrete
Crimp
2
22 AWG
Receptacle
Harwin Inc.
M80-9412605
26
Cable Hood Kit
Jackscrews
Gold
0.079 in
2 mm
Female Socket
2 mm
0.079 in
Free Hanging (In-Line)
Black
0.3 Ám
11.8 Áin
Discrete
Crimp
2
22 AWG
Receptacle
Harwin Inc.
M80-9414205
42
Cable Hood Kit
Jackscrews
Gold
0.079 in
2 mm
Female Socket
2 mm
0.079 in
Free Hanging (In-Line)
Black
0.3 Ám
11.8 Áin
Discrete
Crimp
2
22 AWG
Receptacle
Harwin Inc.
M80-9412042
20
Cable Hood Kit
Jackscrews
Gold
0.079 in
2 mm
Female Socket
2 mm
0.079 in
Free Hanging (In-Line)
Black
0.3 Ám
11.8 Áin
Discrete
Crimp
2
22 AWG
Receptacle
Harwin Inc.
M80-9410642
6
Cable Hood Kit
Jackscrews
Gold
0.079 in
2 mm
Female Socket
2 mm
0.079 in
Free Hanging (In-Line)
Black
0.3 Ám
11.8 Áin
Discrete
Crimp
2
22 AWG
Receptacle

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

DistributorPackageQuantity$
DigikeyBulk 1$ 20.22
10$ 17.52
25$ 16.61
50$ 16.37
100$ 14.44
250$ 13.48
500$ 13.19
NewarkEach 100$ 17.69
250$ 16.16
500$ 15.04
1000$ 13.82
2500$ 13.52

Description

General part information

M80-941 Series

14 Position Rectangular Receptacle Connector Crimp Gold 22 AWG
