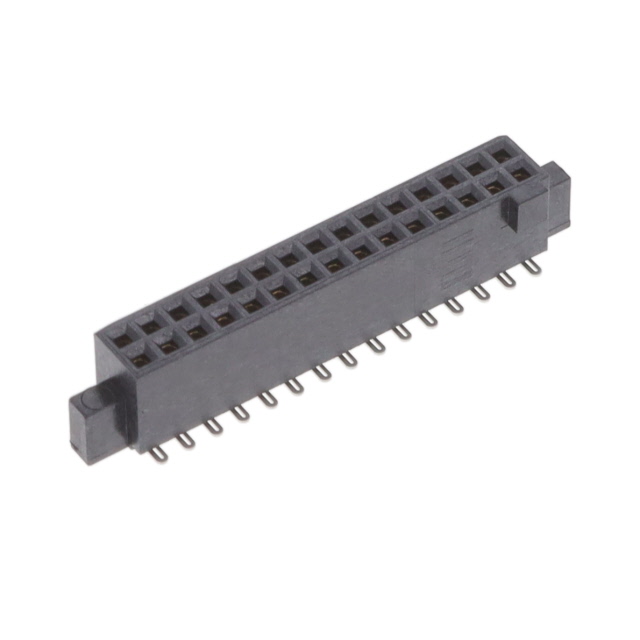

SFC-115-T2-L-D
ActiveSamtec Inc.
CONN SOCKET STRIP SKT 30 POS 1.27MM SOLDER ST TOP ENTRY SMD TUBE
Deep-Dive with AI
Search across all available documentation for this part.
SFC-115-T2-L-D
ActiveSamtec Inc.
CONN SOCKET STRIP SKT 30 POS 1.27MM SOLDER ST TOP ENTRY SMD TUBE
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | SFC-115-T2-L-D |
|---|---|
| Connector Type | Receptacle |
| Contact Finish - Mating | Gold |
| Contact Finish - Post | Tin |
| Contact Finish Thickness - Mating | 10 çin |
| Contact Finish Thickness - Mating | 0.25 çm |
| Contact Material | Phosphor Bronze |
| Contact Shape | Square |
| Contact Type | Female Socket |
| Current Rating (Amps) | 3.1 A |
| Fastening Type | Push-Pull |
| Insulation Color | Black |
| Insulation Height | 4.57 mm |
| Insulation Height | 0.18 " |
| Insulation Material | Liquid Crystal Polymer (LCP) |
| Mounting Type | Surface Mount |
| Number of Positions | 30 |
| Number of Positions Loaded | All |
| Number of Rows | 2 |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -55 °C |
| Pitch - Mating | 0.05 in |
| Pitch - Mating | 1.27 mm |
| Row Spacing - Mating | 0.05 in |
| Row Spacing - Mating | 1.27 mm |
| Style | Board to Board, Cable |
| Termination | Solder |
| Voltage Rating | 350 VAC |
SFC-115 Series
| Part | Contact Material | Fastening Type | Contact Length - Post [x] | Contact Length - Post [x] | Number of Rows | Mounting Type | Operating Temperature [Min] | Operating Temperature [Max] | Insulation Material | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating | Termination | Number of Positions | Insulation Height | Insulation Height | Connector Type | Voltage Rating | Number of Positions Loaded | Contact Type | Contact Finish - Post | Insulation Color | Style | Current Rating (Amps) | Contact Shape | Pitch - Mating | Pitch - Mating | Contact Finish - Mating | Row Spacing - Mating | Row Spacing - Mating | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Samtec Inc. | Phosphor Bronze | Push-Pull | 0.12 in | 3.05 mm | 2 | Through Hole | -55 °C | 125 °C | Liquid Crystal Polymer (LCP) | 10 çin | 0.25 çm | Solder | 30 | 4.57 mm | 0.18 " | Receptacle | 350 VAC | All | Female Socket | Tin | Black | Board to Board Cable | 3.1 A | Square | 0.05 in | 1.27 mm | Gold | 0.05 in | 1.27 mm | |
Samtec Inc. | Phosphor Bronze | Push-Pull | 2 | Surface Mount | -55 °C | 125 °C | Liquid Crystal Polymer (LCP) | 10 çin | 0.25 çm | Solder | 30 | 4.57 mm | 0.18 " | Receptacle | 350 VAC | All | Female Socket | Tin | Black | Board to Board Cable | 3.1 A | Square | 0.05 in | 1.27 mm | Gold | 0.05 in | 1.27 mm | Board Guide | ||
Samtec Inc. | Phosphor Bronze | Push-Pull | 2 | Surface Mount | -55 °C | 125 °C | Liquid Crystal Polymer (LCP) | 3 µin | 0.076 µm | Solder | 30 | 4.57 mm | 0.18 " | Receptacle | 350 VAC | All | Female Socket | Tin | Black | Board to Board Cable | 3.1 A | Square | 0.05 in | 1.27 mm | Gold | 0.05 in | 1.27 mm | |||
Samtec Inc. | Phosphor Bronze | Push-Pull | 2 | Surface Mount | -55 °C | 125 °C | Liquid Crystal Polymer (LCP) | 10 çin | 0.25 çm | Solder | 30 | 4.57 mm | 0.18 " | Receptacle | 350 VAC | All | Female Socket | Tin | Black | Board to Board Cable | 3.1 A | Square | 0.05 in | 1.27 mm | Gold | 0.05 in | 1.27 mm | Board Guide Pick and Place | ||
Samtec Inc. | Phosphor Bronze | Push-Pull | 2 | Surface Mount | -55 °C | 125 °C | Liquid Crystal Polymer (LCP) | 10 çin | 0.25 çm | Solder | 30 | 4.57 mm | 0.18 " | Receptacle | 350 VAC | All | Female Socket | Tin | Black | Board to Board Cable | 3.1 A | Square | 0.05 in | 1.27 mm | Gold | 0.05 in | 1.27 mm | Board Guide Pick and Place | ||
Samtec Inc. | Phosphor Bronze | Push-Pull | 2 | Surface Mount | -55 °C | 125 °C | Liquid Crystal Polymer (LCP) | 10 çin | 0.25 çm | Solder | 30 | 4.57 mm | 0.18 " | Receptacle | 350 VAC | All | Female Socket | Tin | Black | Board to Board Cable | 3.1 A | Square | 0.05 in | 1.27 mm | Gold | 0.05 in | 1.27 mm | |||
Samtec Inc. | Phosphor Bronze | Push-Pull | 2 | Surface Mount | -55 °C | 125 °C | Liquid Crystal Polymer (LCP) | 3 µin | 0.076 µm | Solder | 30 | 4.57 mm | 0.18 " | Receptacle | 350 VAC | All | Female Socket | Tin | Black | Board to Board Cable | 3.1 A | Square | 0.05 in | 1.27 mm | Gold | 0.05 in | 1.27 mm | Pick and Place | ||
Samtec Inc. | Phosphor Bronze | Push-Pull | 2 | Surface Mount | -55 °C | 125 °C | Liquid Crystal Polymer (LCP) | 10 çin | 0.25 çm | Solder | 30 | 4.57 mm | 0.18 " | Receptacle | 350 VAC | All | Female Socket | Tin | Black | Board to Board Cable | 3.1 A | Square | 0.05 in | 1.27 mm | Gold | 0.05 in | 1.27 mm | Board Guide | ||
Samtec Inc. | Phosphor Bronze | Push-Pull | 2 | Surface Mount | -55 °C | 125 °C | Liquid Crystal Polymer (LCP) | 10 çin | 0.25 çm | Solder | 30 | 4.57 mm | 0.18 " | Receptacle | 350 VAC | All | Female Socket | Tin | Black | Board to Board Cable | 3.1 A | Square | 0.05 in | 1.27 mm | Gold | 0.05 in | 1.27 mm | |||
Samtec Inc. | Phosphor Bronze | Push-Pull | 2 | Surface Mount | -55 °C | 125 °C | Liquid Crystal Polymer (LCP) | 10 çin | 0.25 çm | Solder | 30 | 4.57 mm | 0.18 " | Receptacle | 350 VAC | All | Female Socket | Tin | Black | Board to Board Cable | 3.1 A | Square | 0.05 in | 1.27 mm | Gold | 0.05 in | 1.27 mm | Board Guide |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tube | 1 | $ 5.04 | |
| 25 | $ 4.55 | |||
| 50 | $ 4.23 | |||
| 100 | $ 4.03 | |||
| 500 | $ 3.76 | |||
Description
General part information
SFC-115 Series
30 Position Receptacle Connector 0.050" (1.27mm) Surface Mount Gold
