SFC-115-T1-L-D

Active

Samtec Inc.

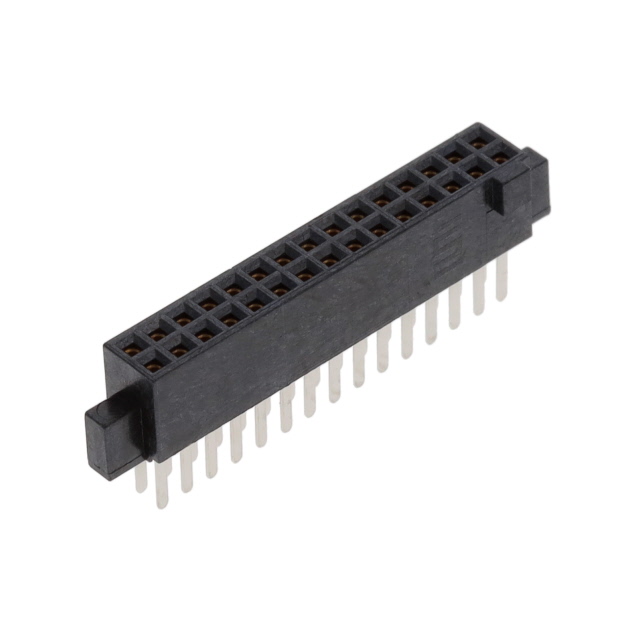

CONN RCPT 30POS 0.05 GOLD PCB

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsSFSD Series Other Related Documents 03 Datasheet +2

SFC-115-T1-L-D

Active

Samtec Inc.

CONN RCPT 30POS 0.05 GOLD PCB

Deep-Dive with AI

DocumentsSFSD Series Other Related Documents 03 Datasheet +2

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	SFC-115-T1-L-D

Connector Type	Receptacle
Contact Finish - Mating	Gold
Contact Finish - Post	Tin
Contact Finish Thickness - Mating	10 çin
Contact Finish Thickness - Mating	0.25 çm
Contact Length - Post [x]	0.12 in
Contact Length - Post [x]	3.05 mm
Contact Material	Phosphor Bronze
Contact Shape	Square
Contact Type	Female Socket
Current Rating (Amps)	3.1 A
Fastening Type	Push-Pull
Insulation Color	Black
Insulation Height	4.57 mm
Insulation Height	0.18 "
Insulation Material	Liquid Crystal Polymer (LCP)
Mounting Type	Through Hole
Number of Positions	30
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Pitch - Mating	0.05 in
Pitch - Mating	1.27 mm
Row Spacing - Mating	0.05 in
Row Spacing - Mating	1.27 mm
Style	Board to Board, Cable
Termination	Solder
Voltage Rating	350 VAC

SFC-115 Series

Part	Contact Material	Fastening Type	Contact Length - Post [x]	Contact Length - Post [x]	Number of Rows	Mounting Type	Operating Temperature [Min]	Operating Temperature [Max]	Insulation Material	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Termination	Number of Positions	Insulation Height	Insulation Height	Connector Type	Voltage Rating	Number of Positions Loaded	Contact Type	Contact Finish - Post	Insulation Color	Style	Current Rating (Amps)	Contact Shape	Pitch - Mating	Pitch - Mating	Contact Finish - Mating	Row Spacing - Mating	Row Spacing - Mating	Features
Samtec Inc. SFC-115-T1-L-D	Phosphor Bronze	Push-Pull	0.12 in	3.05 mm	2	Through Hole	-55 °C	125 °C	Liquid Crystal Polymer (LCP)	10 çin	0.25 çm	Solder	30	4.57 mm	0.18 "	Receptacle	350 VAC	All	Female Socket	Tin	Black	Board to Board Cable	3.1 A	Square	0.05 in	1.27 mm	Gold	0.05 in	1.27 mm
Samtec Inc. SFC-115-T2-LM-D-A-TR	Phosphor Bronze	Push-Pull			2	Surface Mount	-55 °C	125 °C	Liquid Crystal Polymer (LCP)	10 çin	0.25 çm	Solder	30	4.57 mm	0.18 "	Receptacle	350 VAC	All	Female Socket	Tin	Black	Board to Board Cable	3.1 A	Square	0.05 in	1.27 mm	Gold	0.05 in	1.27 mm	Board Guide
Samtec Inc. SFC-115-T2-F-D-TR	Phosphor Bronze	Push-Pull			2	Surface Mount	-55 °C	125 °C	Liquid Crystal Polymer (LCP)	3 µin	0.076 µm	Solder	30	4.57 mm	0.18 "	Receptacle	350 VAC	All	Female Socket	Tin	Black	Board to Board Cable	3.1 A	Square	0.05 in	1.27 mm	Gold	0.05 in	1.27 mm
Samtec Inc. SFC-115-T2-LM-D-A-K	Phosphor Bronze	Push-Pull			2	Surface Mount	-55 °C	125 °C	Liquid Crystal Polymer (LCP)	10 çin	0.25 çm	Solder	30	4.57 mm	0.18 "	Receptacle	350 VAC	All	Female Socket	Tin	Black	Board to Board Cable	3.1 A	Square	0.05 in	1.27 mm	Gold	0.05 in	1.27 mm	Board Guide Pick and Place
Samtec Inc. SFC-115-T2-L-D-A-K-TR	Phosphor Bronze	Push-Pull			2	Surface Mount	-55 °C	125 °C	Liquid Crystal Polymer (LCP)	10 çin	0.25 çm	Solder	30	4.57 mm	0.18 "	Receptacle	350 VAC	All	Female Socket	Tin	Black	Board to Board Cable	3.1 A	Square	0.05 in	1.27 mm	Gold	0.05 in	1.27 mm	Board Guide Pick and Place
Samtec Inc. SFC-115-T2-LM-D	Phosphor Bronze	Push-Pull			2	Surface Mount	-55 °C	125 °C	Liquid Crystal Polymer (LCP)	10 çin	0.25 çm	Solder	30	4.57 mm	0.18 "	Receptacle	350 VAC	All	Female Socket	Tin	Black	Board to Board Cable	3.1 A	Square	0.05 in	1.27 mm	Gold	0.05 in	1.27 mm
Samtec Inc. SFC-115-T2-F-D-K	Phosphor Bronze	Push-Pull			2	Surface Mount	-55 °C	125 °C	Liquid Crystal Polymer (LCP)	3 µin	0.076 µm	Solder	30	4.57 mm	0.18 "	Receptacle	350 VAC	All	Female Socket	Tin	Black	Board to Board Cable	3.1 A	Square	0.05 in	1.27 mm	Gold	0.05 in	1.27 mm	Pick and Place
Samtec Inc. SFC-115-T2-L-D-A-TR	Phosphor Bronze	Push-Pull			2	Surface Mount	-55 °C	125 °C	Liquid Crystal Polymer (LCP)	10 çin	0.25 çm	Solder	30	4.57 mm	0.18 "	Receptacle	350 VAC	All	Female Socket	Tin	Black	Board to Board Cable	3.1 A	Square	0.05 in	1.27 mm	Gold	0.05 in	1.27 mm	Board Guide
Samtec Inc. SFC-115-T2-L-D	Phosphor Bronze	Push-Pull			2	Surface Mount	-55 °C	125 °C	Liquid Crystal Polymer (LCP)	10 çin	0.25 çm	Solder	30	4.57 mm	0.18 "	Receptacle	350 VAC	All	Female Socket	Tin	Black	Board to Board Cable	3.1 A	Square	0.05 in	1.27 mm	Gold	0.05 in	1.27 mm
Samtec Inc. SFC-115-T2-L-D-A	Phosphor Bronze	Push-Pull			2	Surface Mount	-55 °C	125 °C	Liquid Crystal Polymer (LCP)	10 çin	0.25 çm	Solder	30	4.57 mm	0.18 "	Receptacle	350 VAC	All	Female Socket	Tin	Black	Board to Board Cable	3.1 A	Square	0.05 in	1.27 mm	Gold	0.05 in	1.27 mm	Board Guide

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tube	1	$ 4.81
		25	$ 4.35
		50	$ 4.04
		100	$ 3.85
		500	$ 3.59

SFC-115-T1-L-D

Deep-Dive with AI

SFC-115-T1-L-D

Deep-Dive with AI

Technical Specifications

SFC-115 Series

Pricing

Description

SFC-115 Series

Documents

SFSD Series Other Related Documents 03

Datasheet

High-Reliability Tiger Eye™ Socket Strips, .050" Pitch

SFC-105-T2-F-D Datasheet 02

SFC-115 Series
