SFC-115-T2-F-D-K

Active

Samtec Inc.

CONN RCPT 30POS 0.05 GOLD SMD

SFC-115-T2-F-D-K

Active

Samtec Inc.

CONN RCPT 30POS 0.05 GOLD SMD

Description Specifications Series Pricing CAD Documents

Description

General part information

SFC-115 Series

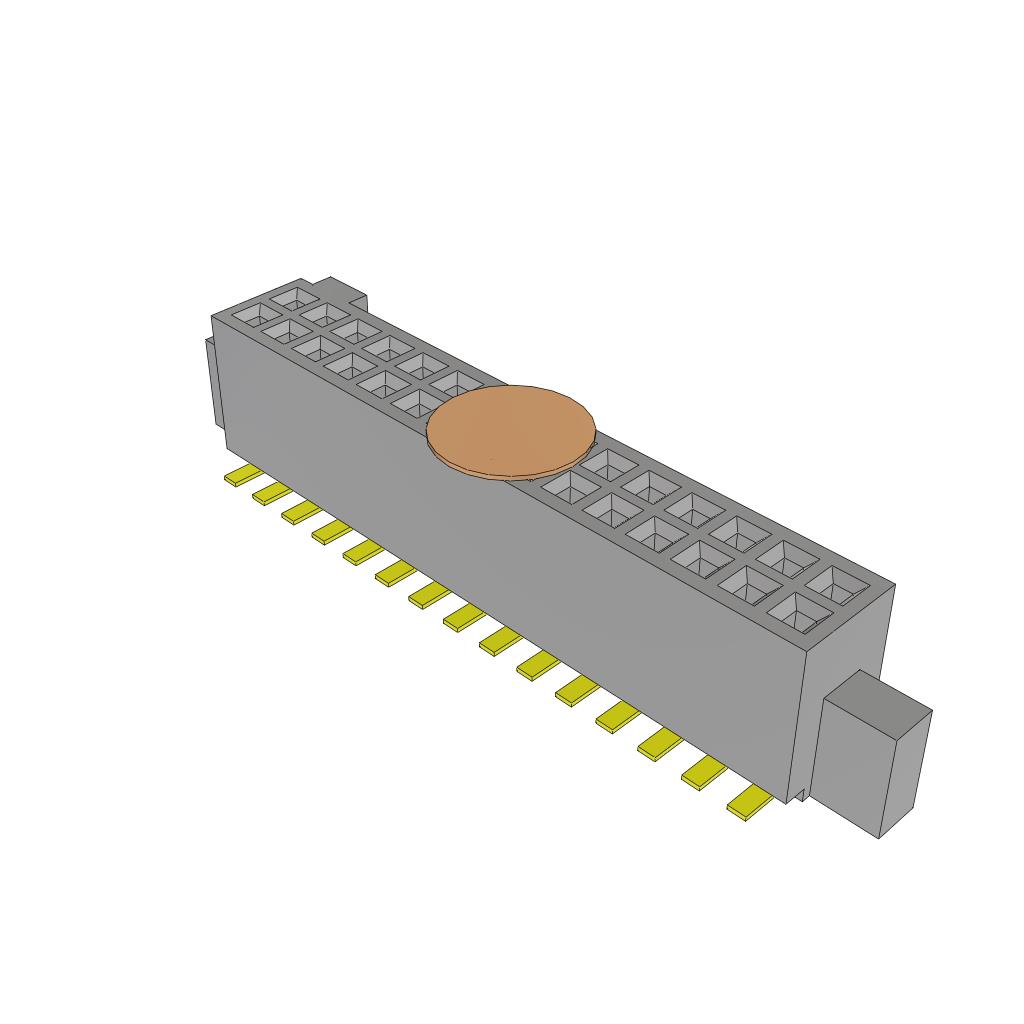

30 Position Receptacle Connector 0.050" (1.27mm) Surface Mount Gold

Technical Specifications

Parameters and characteristics for this part

Specification	SFC-115-T2-F-D-K

Connector Type	Receptacle
Contact Finish - Mating	Gold
Contact Finish - Post	Tin
Contact Finish Thickness - Mating	3 µin
Contact Material	Phosphor Bronze
Contact Shape	Square
Contact Type	Female Socket
Current Rating (Per Contact)	3.1 A
Fastening Type	Push-Pull
Features	Pick and Place
Insulation Color	Black
Insulation Height	0.18 in
Insulation Material	Liquid Crystal Polymer (LCP)
Mounting Type	Surface Mount
Number of Positions	30
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature (Max)	125 °C
Operating Temperature (Min)	-55 °C
Pitch - Mating	0.05 in
Row Spacing - Mating	0.05 in
Style	Board, Board or Cable
Termination	Solder
Voltage Rating	350 V

SFC-115 Series

Part	Operating Temperature (Max)	Operating Temperature (Min)	Contact Finish - Mating	Style	Row Spacing - Mating	Contact Finish Thickness - Mating	Insulation Color	Number of Positions	Fastening Type	Number of Rows	Number of Positions Loaded	Connector Type	Current Rating (Per Contact)	Mounting Type	Contact Length - Post	Contact Type	Contact Finish - Post	Termination	Voltage Rating	Pitch - Mating	Insulation Height	Contact Shape	Contact Material	Insulation Material	Features
Samtec Inc. SFC-115-T1-L-D	125 °C	-55 °C	Gold	Board Board or Cable	0.05 in	10 µin	Black	30	Push-Pull	2	All	Receptacle	3.1 A	Through Hole	0.12 in	Female Socket	Tin	Solder	350 V	0.05 in	0.18 in	Square	Phosphor Bronze	Liquid Crystal Polymer (LCP)
Samtec Inc. SFC-115-T2-LM-D-A-TR	125 °C	-55 °C	Gold	Board Board or Cable	0.05 in	10 µin	Black	30	Push-Pull	2	All	Receptacle	3.1 A	Surface Mount		Female Socket	Tin	Solder	350 V	0.05 in	0.18 in	Square	Phosphor Bronze	Liquid Crystal Polymer (LCP)	Board Guide
Samtec Inc. SFC-115-T2-LM-D-A	125 °C	-55 °C	Gold	Board Board or Cable	0.05 in	10 µin	Black	30	Push-Pull	2	All	Receptacle	3.1 A	Surface Mount		Female Socket	Tin	Solder	350 V	0.05 in	0.18 in	Square	Phosphor Bronze	Liquid Crystal Polymer (LCP)	Board Guide
Samtec Inc. SFC-115-T2-F-D-TR	125 °C	-55 °C	Gold	Board Board or Cable	0.05 in	3 µin	Black	30	Push-Pull	2	All	Receptacle	3.1 A	Surface Mount		Female Socket	Tin	Solder	350 V	0.05 in	0.18 in	Square	Phosphor Bronze	Liquid Crystal Polymer (LCP)
Samtec Inc. SFC-115-T2-L-D-A-K	125 °C	-55 °C	Gold	Board Board or Cable	0.05 in	10 µin	Black	30	Push-Pull	2	All	Receptacle	3.1 A	Surface Mount		Female Socket	Tin	Solder	350 V	0.05 in	0.18 in	Square	Phosphor Bronze	Liquid Crystal Polymer (LCP)	Board Guide Pick and Place
Samtec Inc. SFC-115-T2-LM-D-A-K	125 °C	-55 °C	Gold	Board Board or Cable	0.05 in	10 µin	Black	30	Push-Pull	2	All	Receptacle	3.1 A	Surface Mount		Female Socket	Tin	Solder	350 V	0.05 in	0.18 in	Square	Phosphor Bronze	Liquid Crystal Polymer (LCP)	Board Guide Pick and Place
Samtec Inc. SFC-115-T1-L-D-A-K	125 °C	-55 °C	Gold	Board Board or Cable	0.05 in	10 µin	Black	30	Push-Pull	2	All	Receptacle	3.1 A	Through Hole	0.12 in	Female Socket	Tin	Solder	350 V	0.05 in	0.18 in	Square	Phosphor Bronze	Liquid Crystal Polymer (LCP)	Board Guide Pick and Place
Samtec Inc. SFC-115-T2-L-D-A-K-TR	125 °C	-55 °C	Gold	Board Board or Cable	0.05 in	10 µin	Black	30	Push-Pull	2	All	Receptacle	3.1 A	Surface Mount		Female Socket	Tin	Solder	350 V	0.05 in	0.18 in	Square	Phosphor Bronze	Liquid Crystal Polymer (LCP)	Board Guide Pick and Place
Samtec Inc. SFC-115-T2-LM-D	125 °C	-55 °C	Gold	Board Board or Cable	0.05 in	10 µin	Black	30	Push-Pull	2	All	Receptacle	3.1 A	Surface Mount		Female Socket	Tin	Solder	350 V	0.05 in	0.18 in	Square	Phosphor Bronze	Liquid Crystal Polymer (LCP)
Samtec Inc. SFC-115-T2-F-D-K	125 °C	-55 °C	Gold	Board Board or Cable	0.05 in	3 µin	Black	30	Push-Pull	2	All	Receptacle	3.1 A	Surface Mount		Female Socket	Tin	Solder	350 V	0.05 in	0.18 in	Square	Phosphor Bronze	Liquid Crystal Polymer (LCP)	Pick and Place

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Create a free account to access distributor pricing data.

CAD

3D models and CAD resources for this part

Documents

Technical documentation and resources

SFC-115-T2-F-D-K | Datasheet

SFC-105-T2-F-D Datasheet 02

SFSD Series Other Related Documents 03

.050" Tiger Eye™ Cost-Effective Reliable Socket Strip
