307-018-401-158

Active

EDAC Inc.

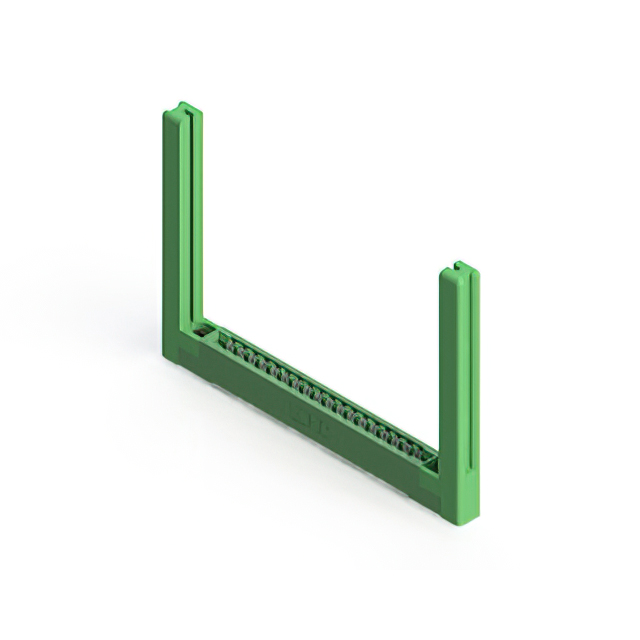

CARD EDGE CONNECTOR, SINGLE SIDE, 1.57 MM, 18 CONTACTS, PANEL MOUNT, STRAIGHT

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Drawing EN

307-018-401-158

Active

EDAC Inc.

CARD EDGE CONNECTOR, SINGLE SIDE, 1.57 MM, 18 CONTACTS, PANEL MOUNT, STRAIGHT

Deep-Dive with AI

DocumentsDatasheet Drawing EN

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	307-018-401-158

Card Thickness [Max]	1.78 mm
Card Thickness [Max]	0.07 in
Card Thickness [Min]	1.37 mm
Card Thickness [Min]	0.054 "
Card Type	Non Specified - Dual Edge
Color	Green
Contact Finish	Tin
Contact Material	Copper Alloy
Contact Type	Semi Bellows
Features	Card Guides
Flange Feature	Flush Mount, Threaded Insert, 4-40, Top Opening
Gender	Female
Material - Insulation	Polyester Thermoplastic
Mounting Type	Through Hole
Number of Positions	36
Number of Positions/Bay/Row [custom]	18
Number of Rows	2
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Pitch [x]	0.156 in
Pitch [x]	3.96 mm
Read Out	Dual
Termination	Solder Eyelet(s)
Termination Rows	1

307-018 Series

...

Part	Gender	Color	Pitch [x]	Pitch [x]	Mounting Type	Read Out	Operating Temperature [Min]	Operating Temperature [Max]	Card Type	Termination	Number of Rows	Flange Feature	Material - Insulation	Contact Material	Card Thickness [Min]	Card Thickness [Min]	Card Thickness [Max]	Card Thickness [Max]	Contact Type	Contact Finish Thickness	Contact Finish Thickness	Number of Positions	Contact Finish	Termination Rows	Features	Number of Positions/Bay/Row [custom]	Flange Feature [diameter]	Flange Feature [diameter]
EDAC Inc. 307-018-558-278	Female	Green	0.156 in	3.96 mm	Through Hole Right Angle	Dual	-40 °C	105 ░C	Non Specified - Dual Edge	Solder Wire Wrap	2	4-40 Flush Mount Threaded Insert Top Opening	Polyester Thermoplastic	Copper Alloy	1.37 mm	0.054 "	1.78 mm	0.07 in	Semi Bellows	10 Áin	0.25 Ám	18	Gold	2	Card Guides	9
EDAC Inc. 307-018-522-258	Female	Green	0.156 in	3.96 mm	Through Hole	Dual	-40 °C	105 ░C	Non Specified - Dual Edge	Solder	2	4-40 Flush Mount Threaded Insert Top Opening	Polyester Thermoplastic	Copper Alloy	1.37 mm	0.054 "	1.78 mm	0.07 in	Semi Bellows	10 Áin	0.25 Ám	18	Gold	2	Card Guides	9
EDAC Inc. 307-018-458-103	Female	Green	0.156 in	3.96 mm	Through Hole Right Angle	Single	-40 °C	105 ░C	Non Specified - Single Edge	Solder	1	Floating Bobbin Flush Mount	Polyester Thermoplastic	Copper Alloy	1.37 mm	0.054 "	1.78 mm	0.07 in	Semi Bellows			18	Tin	1		18	0.116 in	2.95 mm
EDAC Inc. 307-018-559-201	Female	Green	0.156 in	3.96 mm	Through Hole Right Angle	Dual	-40 °C	105 ░C	Non Specified - Dual Edge	Solder	2		Polyester Thermoplastic	Copper Alloy	1.37 mm	0.054 "	1.78 mm	0.07 in	Semi Bellows	10 Áin	0.25 Ám	18	Gold	2		9
EDAC Inc. 307-018-559-203	Female	Green	0.156 in	3.96 mm	Through Hole Right Angle	Dual	-40 °C	105 ░C	Non Specified - Dual Edge	Solder	2	Floating Bobbin Flush Mount	Polyester Thermoplastic	Copper Alloy	1.37 mm	0.054 "	1.78 mm	0.07 in	Semi Bellows	10 Áin	0.25 Ám	18	Gold	2		9	0.116 in	2.95 mm
EDAC Inc. 307-018-421-107	Female	Green	0.156 in	3.96 mm	Through Hole	Dual	-40 °C	105 ░C	Non Specified - Dual Edge	Solder	2	Flush Mount M3 Threaded Insert Top Opening	Polyester Thermoplastic	Copper Alloy	1.37 mm	0.054 "	1.78 mm	0.07 in	Semi Bellows			36	Tin	1		18
EDAC Inc. 307-018-521-107	Female	Green	0.156 in	3.96 mm	Through Hole	Dual	-40 °C	105 ░C	Non Specified - Dual Edge	Solder	2	Flush Mount M3 Threaded Insert Top Opening	Polyester Thermoplastic	Copper Alloy	1.37 mm	0.054 "	1.78 mm	0.07 in	Semi Bellows	10 Áin	0.25 Ám	36	Gold	1		18
EDAC Inc. 307-018-542-208	Female	Green	0.156 in	3.96 mm	Through Hole	Dual	-40 °C	105 ░C	Non Specified - Dual Edge	Wire Wrap	2	4-40 Flush Mount Threaded Insert Top Opening	Polyester Thermoplastic	Copper Alloy	1.37 mm	0.054 "	1.78 mm	0.07 in	Semi Bellows	10 Áin	0.25 Ám	18	Gold	2		9
EDAC Inc. 307-018-521-104	Female	Green	0.156 in	3.96 mm	Through Hole	Dual	-40 °C	105 ░C	Non Specified - Dual Edge	Solder	2	Flush Mount Top Opening Unthreaded	Polyester Thermoplastic	Copper Alloy	1.37 mm	0.054 "	1.78 mm	0.07 in	Semi Bellows	10 Áin	0.25 Ám	36	Gold	1		18	0.156 in	3.96 mm
EDAC Inc. 307-018-401-158	Female	Green	0.156 in	3.96 mm	Through Hole	Dual	-40 °C	105 ░C	Non Specified - Dual Edge	Solder Eyelet(s)	2	4-40 Flush Mount Threaded Insert Top Opening	Polyester Thermoplastic	Copper Alloy	1.37 mm	0.054 "	1.78 mm	0.07 in	Semi Bellows			36	Tin	1	Card Guides	18

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	25	$ 26.23
Newark	Each	1	$ 28.39
		100	$ 16.70
		250	$ 15.69
		500	$ 14.53
		1000	$ 11.05

Description

General part information

307-018 Series

36 Position Female Connector Non Specified - Dual Edge Tin 0.156" (3.96mm) Green
