307-018-542-208
ActiveEDAC Inc.

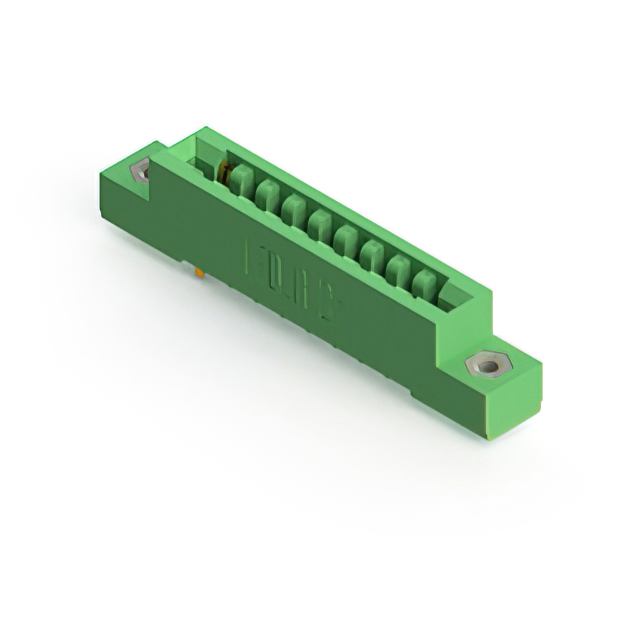

CONN EDGE DUAL FMALE 18POS 0.156
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
307-018-542-208
ActiveEDAC Inc.
CONN EDGE DUAL FMALE 18POS 0.156
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 307-018-542-208 |
|---|---|
| Card Thickness [Max] | 1.78 mm |
| Card Thickness [Max] | 0.07 in |
| Card Thickness [Min] | 1.37 mm |
| Card Thickness [Min] | 0.054 " |
| Card Type | Non Specified - Dual Edge |
| Color | Green |
| Contact Finish | Gold |
| Contact Finish Thickness | 10 Áin |
| Contact Finish Thickness | 0.25 Ám |
| Contact Material | Copper Alloy |
| Contact Type | Semi Bellows |
| Flange Feature | Flush Mount, Threaded Insert, 4-40, Top Opening |
| Gender | Female |
| Material - Insulation | Polyester Thermoplastic |
| Mounting Type | Through Hole |
| Number of Positions | 18 |
| Number of Positions/Bay/Row [custom] | 9 |
| Number of Rows | 2 |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -40 °C |
| Pitch [x] | 0.156 in |
| Pitch [x] | 3.96 mm |
| Read Out | Dual |
| Termination | Wire Wrap |
| Termination Rows | 2 |
307-018 Series
...
| Part | Gender | Color | Pitch [x] | Pitch [x] | Mounting Type | Read Out | Operating Temperature [Min] | Operating Temperature [Max] | Card Type | Termination | Number of Rows | Flange Feature | Material - Insulation | Contact Material | Card Thickness [Min] | Card Thickness [Min] | Card Thickness [Max] | Card Thickness [Max] | Contact Type | Contact Finish Thickness | Contact Finish Thickness | Number of Positions | Contact Finish | Termination Rows | Features | Number of Positions/Bay/Row [custom] | Flange Feature [diameter] | Flange Feature [diameter] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
EDAC Inc. | Female | Green | 0.156 in | 3.96 mm | Through Hole Right Angle | Dual | -40 °C | 105 ░C | Non Specified - Dual Edge | Solder Wire Wrap | 2 | 4-40 Flush Mount Threaded Insert Top Opening | Polyester Thermoplastic | Copper Alloy | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Semi Bellows | 10 Áin | 0.25 Ám | 18 | Gold | 2 | Card Guides | 9 | ||
EDAC Inc. | Female | Green | 0.156 in | 3.96 mm | Through Hole | Dual | -40 °C | 105 ░C | Non Specified - Dual Edge | Solder | 2 | 4-40 Flush Mount Threaded Insert Top Opening | Polyester Thermoplastic | Copper Alloy | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Semi Bellows | 10 Áin | 0.25 Ám | 18 | Gold | 2 | Card Guides | 9 | ||
EDAC Inc. | Female | Green | 0.156 in | 3.96 mm | Through Hole Right Angle | Single | -40 °C | 105 ░C | Non Specified - Single Edge | Solder | 1 | Floating Bobbin Flush Mount | Polyester Thermoplastic | Copper Alloy | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Semi Bellows | 18 | Tin | 1 | 18 | 0.116 in | 2.95 mm | |||
EDAC Inc. | Female | Green | 0.156 in | 3.96 mm | Through Hole Right Angle | Dual | -40 °C | 105 ░C | Non Specified - Dual Edge | Solder | 2 | Polyester Thermoplastic | Copper Alloy | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Semi Bellows | 10 Áin | 0.25 Ám | 18 | Gold | 2 | 9 | ||||
EDAC Inc. | Female | Green | 0.156 in | 3.96 mm | Through Hole Right Angle | Dual | -40 °C | 105 ░C | Non Specified - Dual Edge | Solder | 2 | Floating Bobbin Flush Mount | Polyester Thermoplastic | Copper Alloy | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Semi Bellows | 10 Áin | 0.25 Ám | 18 | Gold | 2 | 9 | 0.116 in | 2.95 mm | |
EDAC Inc. | Female | Green | 0.156 in | 3.96 mm | Through Hole | Dual | -40 °C | 105 ░C | Non Specified - Dual Edge | Solder | 2 | Flush Mount M3 Threaded Insert Top Opening | Polyester Thermoplastic | Copper Alloy | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Semi Bellows | 36 | Tin | 1 | 18 | |||||
EDAC Inc. | Female | Green | 0.156 in | 3.96 mm | Through Hole | Dual | -40 °C | 105 ░C | Non Specified - Dual Edge | Solder | 2 | Flush Mount M3 Threaded Insert Top Opening | Polyester Thermoplastic | Copper Alloy | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Semi Bellows | 10 Áin | 0.25 Ám | 36 | Gold | 1 | 18 | |||
EDAC Inc. | Female | Green | 0.156 in | 3.96 mm | Through Hole | Dual | -40 °C | 105 ░C | Non Specified - Dual Edge | Wire Wrap | 2 | 4-40 Flush Mount Threaded Insert Top Opening | Polyester Thermoplastic | Copper Alloy | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Semi Bellows | 10 Áin | 0.25 Ám | 18 | Gold | 2 | 9 | |||
EDAC Inc. | Female | Green | 0.156 in | 3.96 mm | Through Hole | Dual | -40 °C | 105 ░C | Non Specified - Dual Edge | Solder | 2 | Flush Mount Top Opening Unthreaded | Polyester Thermoplastic | Copper Alloy | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Semi Bellows | 10 Áin | 0.25 Ám | 36 | Gold | 1 | 18 | 0.156 in | 3.96 mm | |
EDAC Inc. | Female | Green | 0.156 in | 3.96 mm | Through Hole | Dual | -40 °C | 105 ░C | Non Specified - Dual Edge | Solder Eyelet(s) | 2 | 4-40 Flush Mount Threaded Insert Top Opening | Polyester Thermoplastic | Copper Alloy | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Semi Bellows | 36 | Tin | 1 | Card Guides | 18 |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 25 | $ 10.49 | |
Description
General part information
307-018 Series
18 Position Female Connector Non Specified - Dual Edge Gold 0.156" (3.96mm) Green
