307-018-521-104

Active

EDAC Inc.

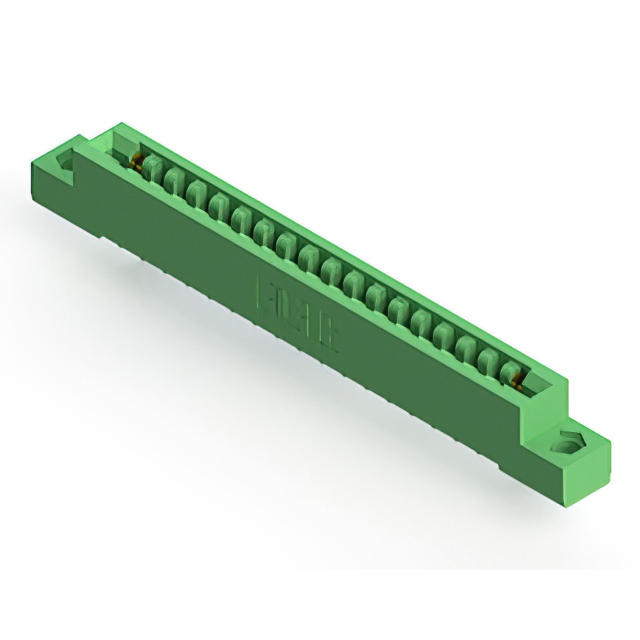

CARD EDGE CONNECTOR, SINGLE SIDE, 1.57 MM, 18 CONTACTS, THROUGH HOLE MOUNT, STRAIGHT

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsInterconnect Solutions Brochure Card Edge Brochure +2

307-018-521-104

Active

EDAC Inc.

CARD EDGE CONNECTOR, SINGLE SIDE, 1.57 MM, 18 CONTACTS, THROUGH HOLE MOUNT, STRAIGHT

Deep-Dive with AI

DocumentsInterconnect Solutions Brochure Card Edge Brochure +2

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	307-018-521-104

Card Thickness [Max]	1.78 mm
Card Thickness [Max]	0.07 in
Card Thickness [Min]	1.37 mm
Card Thickness [Min]	0.054 "
Card Type	Non Specified - Dual Edge
Color	Green
Contact Finish	Gold
Contact Finish Thickness	10 Áin
Contact Finish Thickness	0.25 Ám
Contact Material	Copper Alloy
Contact Type	Semi Bellows
Flange Feature	Flush Mount, Top Opening, Unthreaded
Flange Feature [diameter]	3.96 mm
Flange Feature [diameter]	0.156 in
Gender	Female
Material - Insulation	Polyester Thermoplastic
Mounting Type	Through Hole
Number of Positions	36
Number of Positions/Bay/Row [custom]	18
Number of Rows	2
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Pitch [x]	0.156 in
Pitch [x]	3.96 mm
Read Out	Dual
Termination	Solder
Termination Rows	1

307-018 Series

...

Part	Gender	Color	Pitch [x]	Pitch [x]	Mounting Type	Read Out	Operating Temperature [Min]	Operating Temperature [Max]	Card Type	Termination	Number of Rows	Flange Feature	Material - Insulation	Contact Material	Card Thickness [Min]	Card Thickness [Min]	Card Thickness [Max]	Card Thickness [Max]	Contact Type	Contact Finish Thickness	Contact Finish Thickness	Number of Positions	Contact Finish	Termination Rows	Features	Number of Positions/Bay/Row [custom]	Flange Feature [diameter]	Flange Feature [diameter]
EDAC Inc. 307-018-558-278	Female	Green	0.156 in	3.96 mm	Through Hole Right Angle	Dual	-40 °C	105 ░C	Non Specified - Dual Edge	Solder Wire Wrap	2	4-40 Flush Mount Threaded Insert Top Opening	Polyester Thermoplastic	Copper Alloy	1.37 mm	0.054 "	1.78 mm	0.07 in	Semi Bellows	10 Áin	0.25 Ám	18	Gold	2	Card Guides	9
EDAC Inc. 307-018-522-258	Female	Green	0.156 in	3.96 mm	Through Hole	Dual	-40 °C	105 ░C	Non Specified - Dual Edge	Solder	2	4-40 Flush Mount Threaded Insert Top Opening	Polyester Thermoplastic	Copper Alloy	1.37 mm	0.054 "	1.78 mm	0.07 in	Semi Bellows	10 Áin	0.25 Ám	18	Gold	2	Card Guides	9
EDAC Inc. 307-018-458-103	Female	Green	0.156 in	3.96 mm	Through Hole Right Angle	Single	-40 °C	105 ░C	Non Specified - Single Edge	Solder	1	Floating Bobbin Flush Mount	Polyester Thermoplastic	Copper Alloy	1.37 mm	0.054 "	1.78 mm	0.07 in	Semi Bellows			18	Tin	1		18	0.116 in	2.95 mm
EDAC Inc. 307-018-559-201	Female	Green	0.156 in	3.96 mm	Through Hole Right Angle	Dual	-40 °C	105 ░C	Non Specified - Dual Edge	Solder	2		Polyester Thermoplastic	Copper Alloy	1.37 mm	0.054 "	1.78 mm	0.07 in	Semi Bellows	10 Áin	0.25 Ám	18	Gold	2		9
EDAC Inc. 307-018-559-203	Female	Green	0.156 in	3.96 mm	Through Hole Right Angle	Dual	-40 °C	105 ░C	Non Specified - Dual Edge	Solder	2	Floating Bobbin Flush Mount	Polyester Thermoplastic	Copper Alloy	1.37 mm	0.054 "	1.78 mm	0.07 in	Semi Bellows	10 Áin	0.25 Ám	18	Gold	2		9	0.116 in	2.95 mm
EDAC Inc. 307-018-421-107	Female	Green	0.156 in	3.96 mm	Through Hole	Dual	-40 °C	105 ░C	Non Specified - Dual Edge	Solder	2	Flush Mount M3 Threaded Insert Top Opening	Polyester Thermoplastic	Copper Alloy	1.37 mm	0.054 "	1.78 mm	0.07 in	Semi Bellows			36	Tin	1		18
EDAC Inc. 307-018-521-107	Female	Green	0.156 in	3.96 mm	Through Hole	Dual	-40 °C	105 ░C	Non Specified - Dual Edge	Solder	2	Flush Mount M3 Threaded Insert Top Opening	Polyester Thermoplastic	Copper Alloy	1.37 mm	0.054 "	1.78 mm	0.07 in	Semi Bellows	10 Áin	0.25 Ám	36	Gold	1		18
EDAC Inc. 307-018-542-208	Female	Green	0.156 in	3.96 mm	Through Hole	Dual	-40 °C	105 ░C	Non Specified - Dual Edge	Wire Wrap	2	4-40 Flush Mount Threaded Insert Top Opening	Polyester Thermoplastic	Copper Alloy	1.37 mm	0.054 "	1.78 mm	0.07 in	Semi Bellows	10 Áin	0.25 Ám	18	Gold	2		9
EDAC Inc. 307-018-521-104	Female	Green	0.156 in	3.96 mm	Through Hole	Dual	-40 °C	105 ░C	Non Specified - Dual Edge	Solder	2	Flush Mount Top Opening Unthreaded	Polyester Thermoplastic	Copper Alloy	1.37 mm	0.054 "	1.78 mm	0.07 in	Semi Bellows	10 Áin	0.25 Ám	36	Gold	1		18	0.156 in	3.96 mm
EDAC Inc. 307-018-401-158	Female	Green	0.156 in	3.96 mm	Through Hole	Dual	-40 °C	105 ░C	Non Specified - Dual Edge	Solder Eyelet(s)	2	4-40 Flush Mount Threaded Insert Top Opening	Polyester Thermoplastic	Copper Alloy	1.37 mm	0.054 "	1.78 mm	0.07 in	Semi Bellows			36	Tin	1	Card Guides	18

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	25	$ 22.31
Newark	Each	1	$ 24.92
		100	$ 13.76
		250	$ 13.01
		500	$ 12.20
		1000	$ 9.12

Description

General part information

307-018 Series

36 Position Female Connector Non Specified - Dual Edge Gold 0.156" (3.96mm) Green

Documents

Technical documentation and resources

Interconnect Solutions Brochure

Card Edge Brochure

Datasheet

Drawing EN

Datasheet
