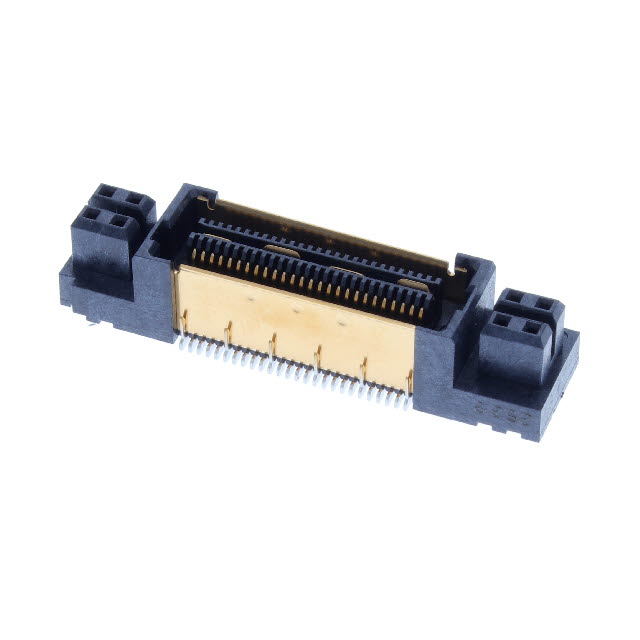

QFSS-026-04.25-H-D-PT4-TR

Active

Samtec Inc.

.635MM DOUBLE ROW SHIELDED TERMI

Deep-Dive with AI

Search across all available documentation for this part.

QFSS-026-04.25-H-D-PT4-TR

Active

Samtec Inc.

.635MM DOUBLE ROW SHIELDED TERMI

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	QFSS-026-04.25-H-D-PT4-TR

Connector Type	Receptacle, Center Strip Contacts
Contact Finish	Gold
Contact Finish Thickness	0.76 Ám
Contact Finish Thickness	30 Áin
Features	Shielded, Power Pins (8), Board Guide, Ground Bus (Plane)
Height Above Board	7.06 mm
Height Above Board	0.278 "
Mated Stacking Heights	11 mm
Mounting Type	Surface Mount
Number of Positions [custom]	60
Number of Positions [custom]	8
Number of Positions [custom]	52
Number of Rows	2
Pitch [x]	0.64 mm
Pitch [x]	0.025 in

QFSS-026 Series

Part	Height Above Board	Height Above Board	Contact Finish Thickness	Contact Finish Thickness	Number of Rows	Features	Pitch [x]	Pitch [x]	Contact Finish	Mated Stacking Heights	Mounting Type	Number of Positions	Connector Type	Number of Positions [custom]	Number of Positions [custom]	Number of Positions [custom]	Number of Positions [custom]	Number of Positions [custom]	Number of Positions [custom]
Samtec Inc. QFSS-026-04.25-L-D-A-P-TR	7.06 mm	0.278 "	10 Áin	0.25 Ám	2	Board Guide Ground Bus (Plane) Shielded	0.64 mm	0.025 in	Gold	11 mm	Surface Mount	52	Center Strip Contacts Receptacle
Samtec Inc. QFSS-026-04.25-L-D-PT8	7.06 mm	0.278 "	10 Áin	0.25 Ám	2	Board Guide Ground Bus (Plane) Power Pins (16) Shielded	0.64 mm	0.025 in	Gold	11 mm	Surface Mount		Center Strip Contacts Receptacle	68	16	52
Samtec Inc. QFSS-026-04.25-L-D-A-TR	7.06 mm	0.278 "	10 Áin	0.25 Ám	2	Board Guide Ground Bus (Plane) Shielded	0.64 mm	0.025 in	Gold	11 mm	Surface Mount	52	Center Strip Contacts Receptacle
Samtec Inc. QFSS-026-04.25-L-D-A-BM	7.06 mm	0.278 "	10 Áin	0.25 Ám	2	Board Guide Ground Bus (Plane) Shielded	0.64 mm	0.025 in	Gold	11 mm	Surface Mount	52	Center Strip Contacts Receptacle
Samtec Inc. QFSS-026-04.25-L-D-PT4	7.06 mm	0.278 "	10 Áin	0.25 Ám	2	Board Guide Ground Bus (Plane) Power Pins (8) Shielded	0.64 mm	0.025 in	Gold	11 mm	Surface Mount		Center Strip Contacts Receptacle				60	8	52
Samtec Inc. QFSS-026-04.25-L-D-A-P	7.06 mm	0.278 "	10 Áin	0.25 Ám	2	Board Guide Ground Bus (Plane) Shielded	0.64 mm	0.025 in	Gold	11 mm	Surface Mount	52	Center Strip Contacts Receptacle
Samtec Inc. QFSS-026-04.25-H-D	7.06 mm	0.278 "	30 Áin	0.76 Ám	2	Board Guide Ground Bus (Plane) Shielded	0.64 mm	0.025 in	Gold	11 mm	Surface Mount	52	Center Strip Contacts Receptacle
Samtec Inc. QFSS-026-04.25-H-D-PC8	7.06 mm	0.278 "	30 Áin	0.76 Ám	2	Board Guide Ground Bus (Plane) Power Pins (16) Shielded	0.64 mm	0.025 in	Gold	11 mm	Surface Mount		Center Strip Contacts Receptacle	68	16	52
Samtec Inc. QFSS-026-04.25-H-D-PT4-TR	7.06 mm	0.278 "	30 Áin	0.76 Ám	2	Board Guide Ground Bus (Plane) Power Pins (8) Shielded	0.64 mm	0.025 in	Gold	11 mm	Surface Mount		Center Strip Contacts Receptacle				60	8	52
Samtec Inc. QFSS-026-04.25-H-D-A-P-TR	7.06 mm	0.278 "	30 Áin	0.76 Ám	2	Board Guide Ground Bus (Plane) Shielded	0.64 mm	0.025 in	Gold	11 mm	Surface Mount	52	Center Strip Contacts Receptacle

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tape & Reel (TR)	150	$ 16.21

Description

General part information

QFSS-026 Series

60 (52 + 8 Power) Position Connector Receptacle, Center Strip Contacts Surface Mount Gold

Documents

Technical documentation and resources

No documents available
