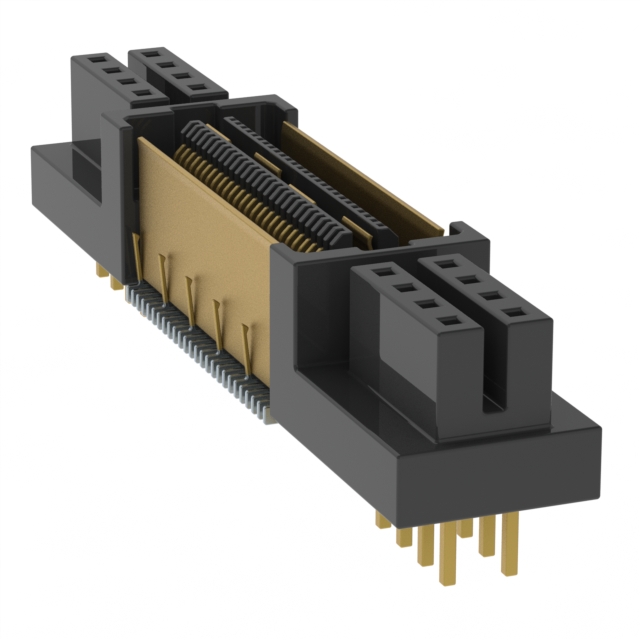

QFSS-026-04.25-L-D-PT8

Active

Samtec Inc.

.635MM DOUBLE ROW SHIELDED TERMI

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	QFSS-026-04.25-L-D-PT8

Connector Type	Receptacle, Center Strip Contacts
Contact Finish	Gold
Contact Finish Thickness	10 Áin
Contact Finish Thickness	0.25 Ám
Features	Ground Bus (Plane), Board Guide, Power Pins (16), Shielded
Height Above Board	7.06 mm
Height Above Board	0.278 "
Mated Stacking Heights	11 mm
Mounting Type	Surface Mount
Number of Positions [custom]	68
Number of Positions [custom]	16
Number of Positions [custom]	52
Number of Rows	2
Pitch [x]	0.64 mm
Pitch [x]	0.025 in

QFSS-026 Series

Part	Height Above Board	Height Above Board	Contact Finish Thickness	Contact Finish Thickness	Number of Rows	Features	Pitch [x]	Pitch [x]	Contact Finish	Mated Stacking Heights	Mounting Type	Number of Positions	Connector Type	Number of Positions [custom]	Number of Positions [custom]	Number of Positions [custom]	Number of Positions [custom]	Number of Positions [custom]	Number of Positions [custom]
Samtec Inc. QFSS-026-04.25-L-D-A-P-TR	7.06 mm	0.278 "	10 Áin	0.25 Ám	2	Board Guide Ground Bus (Plane) Shielded	0.64 mm	0.025 in	Gold	11 mm	Surface Mount	52	Center Strip Contacts Receptacle
Samtec Inc. QFSS-026-04.25-L-D-PT8	7.06 mm	0.278 "	10 Áin	0.25 Ám	2	Board Guide Ground Bus (Plane) Power Pins (16) Shielded	0.64 mm	0.025 in	Gold	11 mm	Surface Mount		Center Strip Contacts Receptacle	68	16	52
Samtec Inc. QFSS-026-04.25-L-D-A-TR	7.06 mm	0.278 "	10 Áin	0.25 Ám	2	Board Guide Ground Bus (Plane) Shielded	0.64 mm	0.025 in	Gold	11 mm	Surface Mount	52	Center Strip Contacts Receptacle
Samtec Inc. QFSS-026-04.25-L-D-A-BM	7.06 mm	0.278 "	10 Áin	0.25 Ám	2	Board Guide Ground Bus (Plane) Shielded	0.64 mm	0.025 in	Gold	11 mm	Surface Mount	52	Center Strip Contacts Receptacle
Samtec Inc. QFSS-026-04.25-L-D-PT4	7.06 mm	0.278 "	10 Áin	0.25 Ám	2	Board Guide Ground Bus (Plane) Power Pins (8) Shielded	0.64 mm	0.025 in	Gold	11 mm	Surface Mount		Center Strip Contacts Receptacle				60	8	52
Samtec Inc. QFSS-026-04.25-L-D-A-P	7.06 mm	0.278 "	10 Áin	0.25 Ám	2	Board Guide Ground Bus (Plane) Shielded	0.64 mm	0.025 in	Gold	11 mm	Surface Mount	52	Center Strip Contacts Receptacle
Samtec Inc. QFSS-026-04.25-H-D	7.06 mm	0.278 "	30 Áin	0.76 Ám	2	Board Guide Ground Bus (Plane) Shielded	0.64 mm	0.025 in	Gold	11 mm	Surface Mount	52	Center Strip Contacts Receptacle
Samtec Inc. QFSS-026-04.25-H-D-PC8	7.06 mm	0.278 "	30 Áin	0.76 Ám	2	Board Guide Ground Bus (Plane) Power Pins (16) Shielded	0.64 mm	0.025 in	Gold	11 mm	Surface Mount		Center Strip Contacts Receptacle	68	16	52
Samtec Inc. QFSS-026-04.25-H-D-PT4-TR	7.06 mm	0.278 "	30 Áin	0.76 Ám	2	Board Guide Ground Bus (Plane) Power Pins (8) Shielded	0.64 mm	0.025 in	Gold	11 mm	Surface Mount		Center Strip Contacts Receptacle				60	8	52
Samtec Inc. QFSS-026-04.25-H-D-A-P-TR	7.06 mm	0.278 "	30 Áin	0.76 Ám	2	Board Guide Ground Bus (Plane) Shielded	0.64 mm	0.025 in	Gold	11 mm	Surface Mount	52	Center Strip Contacts Receptacle

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	52	$ 14.74

Description

General part information

QFSS-026 Series

68 (52 + 16 Power) Position Connector Receptacle, Center Strip Contacts Surface Mount Gold
