QFSS-026 Series

Catalog

.635MM DOUBLE ROW SHIELDED TERMI

Part	Height Above Board	Height Above Board	Contact Finish Thickness	Contact Finish Thickness	Number of Rows	Features	Pitch [x]	Pitch [x]	Contact Finish	Mated Stacking Heights	Mounting Type	Number of Positions	Connector Type	Number of Positions [custom]	Number of Positions [custom]	Number of Positions [custom]	Number of Positions [custom]	Number of Positions [custom]	Number of Positions [custom]
Samtec Inc. QFSS-026-04.25-L-D-A-P-TR	7.06 mm	0.278 "	10 Áin	0.25 Ám	2	Board Guide Ground Bus (Plane) Shielded	0.64 mm	0.025 in	Gold	11 mm	Surface Mount	52	Center Strip Contacts Receptacle
Samtec Inc. QFSS-026-04.25-L-D-PT8	7.06 mm	0.278 "	10 Áin	0.25 Ám	2	Board Guide Ground Bus (Plane) Power Pins (16) Shielded	0.64 mm	0.025 in	Gold	11 mm	Surface Mount		Center Strip Contacts Receptacle	68	16	52
Samtec Inc. QFSS-026-04.25-L-D-A-TR	7.06 mm	0.278 "	10 Áin	0.25 Ám	2	Board Guide Ground Bus (Plane) Shielded	0.64 mm	0.025 in	Gold	11 mm	Surface Mount	52	Center Strip Contacts Receptacle
Samtec Inc. QFSS-026-04.25-L-D-A-BM	7.06 mm	0.278 "	10 Áin	0.25 Ám	2	Board Guide Ground Bus (Plane) Shielded	0.64 mm	0.025 in	Gold	11 mm	Surface Mount	52	Center Strip Contacts Receptacle
Samtec Inc. QFSS-026-04.25-L-D-PT4	7.06 mm	0.278 "	10 Áin	0.25 Ám	2	Board Guide Ground Bus (Plane) Power Pins (8) Shielded	0.64 mm	0.025 in	Gold	11 mm	Surface Mount		Center Strip Contacts Receptacle				60	8	52
Samtec Inc. QFSS-026-04.25-L-D-A-P	7.06 mm	0.278 "	10 Áin	0.25 Ám	2	Board Guide Ground Bus (Plane) Shielded	0.64 mm	0.025 in	Gold	11 mm	Surface Mount	52	Center Strip Contacts Receptacle
Samtec Inc. QFSS-026-04.25-H-D	7.06 mm	0.278 "	30 Áin	0.76 Ám	2	Board Guide Ground Bus (Plane) Shielded	0.64 mm	0.025 in	Gold	11 mm	Surface Mount	52	Center Strip Contacts Receptacle

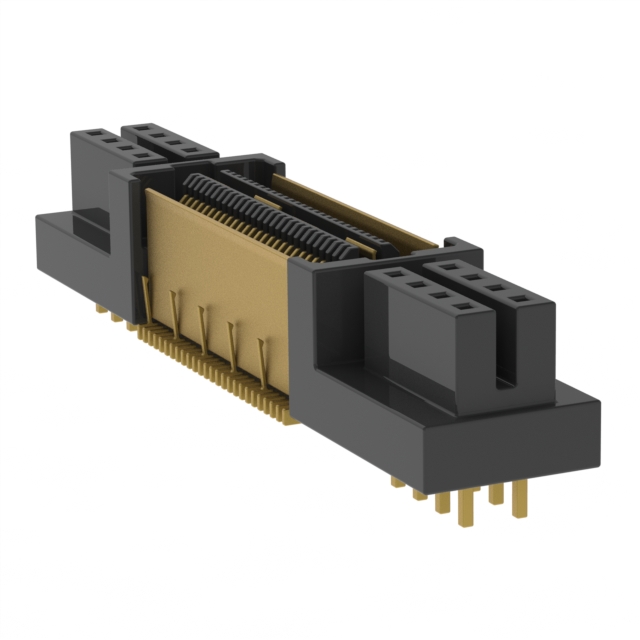

Samtec Inc. QFSS-026-04.25-H-D-PC8	7.06 mm	0.278 "	30 Áin	0.76 Ám	2	Board Guide Ground Bus (Plane) Power Pins (16) Shielded	0.64 mm	0.025 in	Gold	11 mm	Surface Mount		Center Strip Contacts Receptacle	68	16	52
Samtec Inc. QFSS-026-04.25-H-D-PT4-TR	7.06 mm	0.278 "	30 Áin	0.76 Ám	2	Board Guide Ground Bus (Plane) Power Pins (8) Shielded	0.64 mm	0.025 in	Gold	11 mm	Surface Mount		Center Strip Contacts Receptacle				60	8	52
Samtec Inc. QFSS-026-04.25-H-D-A-P-TR	7.06 mm	0.278 "	30 Áin	0.76 Ám	2	Board Guide Ground Bus (Plane) Shielded	0.64 mm	0.025 in	Gold	11 mm	Surface Mount	52	Center Strip Contacts Receptacle
