QTS-025-02-L-D-A-K-TR

Active

Samtec Inc.

CONN HDR 50POS SMD GOLD

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsQTS-025-01-F-D-A Datasheet 02 0.635 mm Q Strip® High-Speed Ground Plane Terminal Strip +2

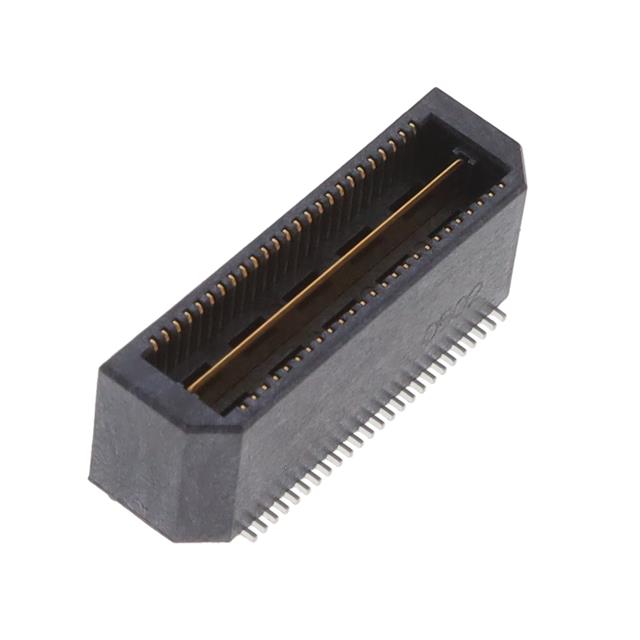

QTS-025-02-L-D-A-K-TR

Active

Samtec Inc.

CONN HDR 50POS SMD GOLD

Deep-Dive with AI

DocumentsQTS-025-01-F-D-A Datasheet 02 0.635 mm Q Strip® High-Speed Ground Plane Terminal Strip +2

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	QTS-025-02-L-D-A-K-TR

Connector Type	Header, Outer Shroud Contacts
Contact Finish	Gold
Contact Finish Thickness	10 Áin
Contact Finish Thickness	0.25 Ám
Features	Board Guide, Ground Bus (Plane), Pick and Place
Height Above Board	7.06 mm
Height Above Board	0.278 "
Mated Stacking Heights	8 mm
Mounting Type	Surface Mount
Number of Positions	50
Number of Rows	2
Pitch [x]	0.64 mm
Pitch [x]	0.025 in

QTS-025 Series

Part	Contact Finish Thickness	Contact Finish Thickness	Features	Mounting Type	Contact Finish	Pitch [x]	Pitch [x]	Mated Stacking Heights	Number of Rows	Number of Positions	Connector Type	Height Above Board	Height Above Board
Samtec Inc. QTS-025-02-L-D-A-K-TR	10 Áin	0.25 Ám	Board Guide Ground Bus (Plane) Pick and Place	Surface Mount	Gold	0.64 mm	0.025 in	8 mm	2	50	Header Outer Shroud Contacts	7.06 mm	0.278 "
Samtec Inc. QTS-025-02-L-D-A	10 Áin	0.25 Ám		Surface Mount	Gold	0.64 mm	0.025 in	8 mm	2	50	Header Outer Shroud Contacts	7.06 mm	0.278 "
Samtec Inc. QTS-025-04-H-D-A-K-TR	30 Áin	0.76 Ám	Board Guide Ground Bus (Plane) Pick and Place	Surface Mount	Gold	0.64 mm	0.025 in	16 mm	2	50	Header Outer Shroud Contacts	15.24 mm	0.6 in
Samtec Inc. QTS-025-01-F-D-TR	3 Áin	0.076 Ám	Ground Bus (Plane)	Surface Mount	Gold	0.64 mm	0.025 in	5 mm	2	50	Header Outer Shroud Contacts	4.06 mm	0.16 in
Samtec Inc. QTS-025-03-H-D	30 Áin	0.76 Ám	Ground Bus (Plane)	Surface Mount	Gold	0.64 mm	0.025 in	11 mm	2	50	Header Outer Shroud Contacts	10.27 mm	0.404 in
Samtec Inc. QTS-025-03-C-D-A-K	50 µin	1.27 µm	Board Guide Ground Bus (Plane) Pick and Place	Surface Mount	Gold	0.64 mm	0.025 in	11 mm	2	50	Header Outer Shroud Contacts	10.27 mm	0.404 in
Samtec Inc. QTS-025-02-L-D-LC	10 Áin	0.25 Ám	Board Lock Ground Bus (Plane)	Surface Mount	Gold	0.64 mm	0.025 in	8 mm	2	50	Header Outer Shroud Contacts	7.06 mm	0.278 "
Samtec Inc. QTS-025-02-L-D-A-K	10 Áin	0.25 Ám	Board Guide Ground Bus (Plane) Pick and Place	Surface Mount	Gold	0.64 mm	0.025 in	8 mm	2	50	Header Outer Shroud Contacts	7.06 mm	0.278 "
Samtec Inc. QTS-025-01-H-D-RA	30 Áin	0.76 Ám	Ground Bus (Plane)	Surface Mount Right Angle	Gold	0.64 mm	0.025 in		2	50	Header Outer Shroud Contacts	9.42 mm	0.371 in
Samtec Inc. QTS-025-02-L-D-RA	10 Áin	0.25 Ám	Ground Bus (Plane)	Surface Mount Right Angle	Gold	0.64 mm	0.025 in		2	50	Header Outer Shroud Contacts	9.42 mm	0.371 in
