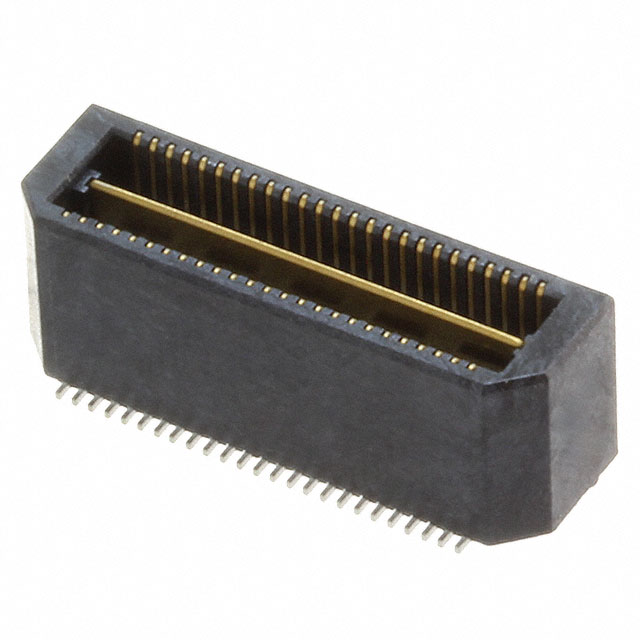

QTS-025-02-L-D-A

Active

Samtec Inc.

HEADER, 0.635MM, HIGH SPEED, 2X25WAY ROHS COMPLIANT: YES

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsOne Page Summary EN QTS-025-01-F-D-A Datasheet 02 +3

QTS-025-02-L-D-A

Active

Samtec Inc.

HEADER, 0.635MM, HIGH SPEED, 2X25WAY ROHS COMPLIANT: YES

Deep-Dive with AI

DocumentsOne Page Summary EN QTS-025-01-F-D-A Datasheet 02 +3

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	QTS-025-02-L-D-A

Connector Type	Header, Outer Shroud Contacts
Contact Finish	Gold
Contact Finish Thickness	10 Áin
Contact Finish Thickness	0.25 Ám
Height Above Board	7.06 mm
Height Above Board	0.278 "
Mated Stacking Heights	8 mm
Mounting Type	Surface Mount
Number of Positions	50
Number of Rows	2
Pitch [x]	0.64 mm
Pitch [x]	0.025 in

QTS-025 Series

Part	Contact Finish Thickness	Contact Finish Thickness	Features	Mounting Type	Contact Finish	Pitch [x]	Pitch [x]	Mated Stacking Heights	Number of Rows	Number of Positions	Connector Type	Height Above Board	Height Above Board
Samtec Inc. QTS-025-02-L-D-A-K-TR	10 Áin	0.25 Ám	Board Guide Ground Bus (Plane) Pick and Place	Surface Mount	Gold	0.64 mm	0.025 in	8 mm	2	50	Header Outer Shroud Contacts	7.06 mm	0.278 "
Samtec Inc. QTS-025-02-L-D-A	10 Áin	0.25 Ám		Surface Mount	Gold	0.64 mm	0.025 in	8 mm	2	50	Header Outer Shroud Contacts	7.06 mm	0.278 "
Samtec Inc. QTS-025-04-H-D-A-K-TR	30 Áin	0.76 Ám	Board Guide Ground Bus (Plane) Pick and Place	Surface Mount	Gold	0.64 mm	0.025 in	16 mm	2	50	Header Outer Shroud Contacts	15.24 mm	0.6 in
Samtec Inc. QTS-025-01-F-D-TR	3 Áin	0.076 Ám	Ground Bus (Plane)	Surface Mount	Gold	0.64 mm	0.025 in	5 mm	2	50	Header Outer Shroud Contacts	4.06 mm	0.16 in
Samtec Inc. QTS-025-03-H-D	30 Áin	0.76 Ám	Ground Bus (Plane)	Surface Mount	Gold	0.64 mm	0.025 in	11 mm	2	50	Header Outer Shroud Contacts	10.27 mm	0.404 in
Samtec Inc. QTS-025-03-C-D-A-K	50 µin	1.27 µm	Board Guide Ground Bus (Plane) Pick and Place	Surface Mount	Gold	0.64 mm	0.025 in	11 mm	2	50	Header Outer Shroud Contacts	10.27 mm	0.404 in
Samtec Inc. QTS-025-02-L-D-LC	10 Áin	0.25 Ám	Board Lock Ground Bus (Plane)	Surface Mount	Gold	0.64 mm	0.025 in	8 mm	2	50	Header Outer Shroud Contacts	7.06 mm	0.278 "
Samtec Inc. QTS-025-02-L-D-A-K	10 Áin	0.25 Ám	Board Guide Ground Bus (Plane) Pick and Place	Surface Mount	Gold	0.64 mm	0.025 in	8 mm	2	50	Header Outer Shroud Contacts	7.06 mm	0.278 "
Samtec Inc. QTS-025-01-H-D-RA	30 Áin	0.76 Ám	Ground Bus (Plane)	Surface Mount Right Angle	Gold	0.64 mm	0.025 in		2	50	Header Outer Shroud Contacts	9.42 mm	0.371 in
Samtec Inc. QTS-025-02-L-D-RA	10 Áin	0.25 Ám	Ground Bus (Plane)	Surface Mount Right Angle	Gold	0.64 mm	0.025 in		2	50	Header Outer Shroud Contacts	9.42 mm	0.371 in

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	48	$ 8.51
		96	$ 8.20
		144	$ 7.67
Newark	Each	1	$ 8.46
		10	$ 8.11
		100	$ 6.70
		500	$ 5.66
		1000	$ 4.94
		2500	$ 4.70

Description

General part information

QTS-025 Series

50 Position Connector Header, Outer Shroud Contacts Surface Mount Gold

Documents

Technical documentation and resources

One Page Summary EN

Datasheet

QTS-025-01-F-D-A Datasheet 02

Datasheet
