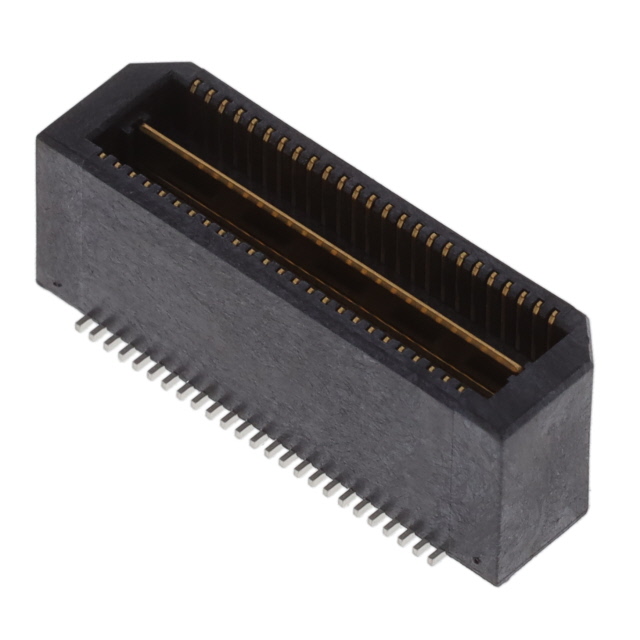

QTS-025-02-L-D-A-K

Active

Samtec Inc.

CONN HDR 50POS SMD GOLD

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet QSS Series Other Related Documents 03 +2

QTS-025-02-L-D-A-K

Active

Samtec Inc.

CONN HDR 50POS SMD GOLD

Deep-Dive with AI

DocumentsDatasheet QSS Series Other Related Documents 03 +2

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	QTS-025-02-L-D-A-K

Connector Type	Header, Outer Shroud Contacts
Contact Finish	Gold
Contact Finish Thickness	10 Áin
Contact Finish Thickness	0.25 Ám
Features	Board Guide, Ground Bus (Plane), Pick and Place
Height Above Board	7.06 mm
Height Above Board	0.278 "
Mated Stacking Heights	8 mm
Mounting Type	Surface Mount
Number of Positions	50
Number of Rows	2
Pitch [x]	0.64 mm
Pitch [x]	0.025 in

QTS-025 Series

Part	Contact Finish Thickness	Contact Finish Thickness	Features	Mounting Type	Contact Finish	Pitch [x]	Pitch [x]	Mated Stacking Heights	Number of Rows	Number of Positions	Connector Type	Height Above Board	Height Above Board
Samtec Inc. QTS-025-02-L-D-A-K-TR	10 Áin	0.25 Ám	Board Guide Ground Bus (Plane) Pick and Place	Surface Mount	Gold	0.64 mm	0.025 in	8 mm	2	50	Header Outer Shroud Contacts	7.06 mm	0.278 "
Samtec Inc. QTS-025-02-L-D-A	10 Áin	0.25 Ám		Surface Mount	Gold	0.64 mm	0.025 in	8 mm	2	50	Header Outer Shroud Contacts	7.06 mm	0.278 "
Samtec Inc. QTS-025-04-H-D-A-K-TR	30 Áin	0.76 Ám	Board Guide Ground Bus (Plane) Pick and Place	Surface Mount	Gold	0.64 mm	0.025 in	16 mm	2	50	Header Outer Shroud Contacts	15.24 mm	0.6 in
Samtec Inc. QTS-025-01-F-D-TR	3 Áin	0.076 Ám	Ground Bus (Plane)	Surface Mount	Gold	0.64 mm	0.025 in	5 mm	2	50	Header Outer Shroud Contacts	4.06 mm	0.16 in
Samtec Inc. QTS-025-03-H-D	30 Áin	0.76 Ám	Ground Bus (Plane)	Surface Mount	Gold	0.64 mm	0.025 in	11 mm	2	50	Header Outer Shroud Contacts	10.27 mm	0.404 in
Samtec Inc. QTS-025-03-C-D-A-K	50 µin	1.27 µm	Board Guide Ground Bus (Plane) Pick and Place	Surface Mount	Gold	0.64 mm	0.025 in	11 mm	2	50	Header Outer Shroud Contacts	10.27 mm	0.404 in
Samtec Inc. QTS-025-02-L-D-LC	10 Áin	0.25 Ám	Board Lock Ground Bus (Plane)	Surface Mount	Gold	0.64 mm	0.025 in	8 mm	2	50	Header Outer Shroud Contacts	7.06 mm	0.278 "
Samtec Inc. QTS-025-02-L-D-A-K	10 Áin	0.25 Ám	Board Guide Ground Bus (Plane) Pick and Place	Surface Mount	Gold	0.64 mm	0.025 in	8 mm	2	50	Header Outer Shroud Contacts	7.06 mm	0.278 "
Samtec Inc. QTS-025-01-H-D-RA	30 Áin	0.76 Ám	Ground Bus (Plane)	Surface Mount Right Angle	Gold	0.64 mm	0.025 in		2	50	Header Outer Shroud Contacts	9.42 mm	0.371 in
Samtec Inc. QTS-025-02-L-D-RA	10 Áin	0.25 Ám	Ground Bus (Plane)	Surface Mount Right Angle	Gold	0.64 mm	0.025 in		2	50	Header Outer Shroud Contacts	9.42 mm	0.371 in

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	48	$ 8.65
		96	$ 8.34
		144	$ 7.80

QTS-025-02-L-D-A-K

Deep-Dive with AI

QTS-025-02-L-D-A-K

Deep-Dive with AI

Technical Specifications

QTS-025 Series

Pricing

Description

QTS-025 Series

Documents

Datasheet

QSS Series Other Related Documents 03

QTS-025-01-F-D-A Datasheet 02

0.635 mm Q Strip® High-Speed Ground Plane Terminal Strip

QTS-025 Series
