RB1-1A-AC-2-B-3

Active

Switch Components

VAC SCREW, SPST OFF-ON W/PRINT

Search across all available documentation for this part.

Active

Switch Components

VAC SCREW, SPST OFF-ON W/PRINT

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

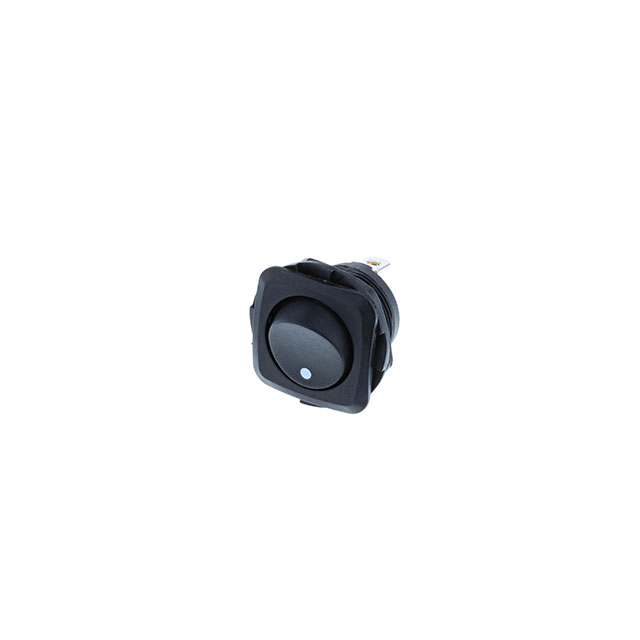

Rocker Switch SPST 16A (AC) Panel Mount, Threaded Body with Nut

Technical documentation and resources

Parameters and characteristics commom to parts in this series

Specification	RB1-1A-AC-2-B-3	RB1-1A Series

Actuator Marking	Dot	Dot, O -, No Marking
Actuator Type	Round	Round
Circuit	SPST	SPST
Color - Actuator/Cap	Black	Black, Red
Current Rating (Amps)	16 A	16 - 20 A
Electrical Life	-	6000 Cycles
Mechanical Life	-	10000 Steps
Mounting Type	Panel Mount, Threaded Body with Nut	Panel Mount, Threaded Body with Nut
Operating Temperature [Max]	85 °C	85 °C
Operating Temperature [Min]	-25 °C	-25 °C
Panel Cutout Dimensions [diameter]	20.2 mm	20.2 mm
Switch Function	On-Off	On-Off
Termination Style	Quick Connect - 0.187" (4.7mm)	Quick Connect - 0.187" (4.7mm)
Voltage Rating - AC	-	125 V
Voltage Rating - DC	-	14 V

VAC SCREW, SPST OFF-ON W/PRINT

Part	Mounting Type	Termination Style	Actuator Marking	Color - Actuator/Cap	Circuit	Panel Cutout Dimensions [diameter]	Switch Function	Operating Temperature [Min]	Operating Temperature [Max]	Current Rating (Amps)	Actuator Type	Mechanical Life	Voltage Rating - DC	Electrical Life	Voltage Rating - AC
Switch Components RB1-1A-AC-2-B-3	Panel Mount, Threaded Body with Nut	Quick Connect - 0.187" (4.7mm)	Dot	Black	SPST	20.2 mm	On-Off	-25 °C	85 °C	16 A	Round
Switch Components RB1-1A-DC-2-B-3	Panel Mount, Threaded Body with Nut	Quick Connect - 0.187" (4.7mm)	Dot	Black	SPST	20.2 mm	On-Off	-25 °C	85 °C	16 A, 20 A	Round	10000 Steps	14 V	6000 Cycles	125 V
Switch Components RB1-1A-DC-2-B-1	Panel Mount, Threaded Body with Nut	Quick Connect - 0.187" (4.7mm)	O -	Black	SPST	20.2 mm	On-Off	-25 °C	85 °C	16 A, 20 A	Round	10000 Steps	14 V	6000 Cycles	125 V
Switch Components RB1-1A-AC-2-B-1	Panel Mount, Threaded Body with Nut	Quick Connect - 0.187" (4.7mm)	O -	Black	SPST	20.2 mm	On-Off	-25 °C	85 °C	16 A	Round
Switch Components RB1-1A-AC-2-B	Panel Mount, Threaded Body with Nut	Quick Connect - 0.187" (4.7mm)	No Marking	Black	SPST	20.2 mm	On-Off	-25 °C	85 °C	16 A	Round
Switch Components RB1-1A-DC-2-R	Panel Mount, Threaded Body with Nut	Quick Connect - 0.187" (4.7mm)	No Marking	Black, Red	SPST	20.2 mm	On-Off	-25 °C	85 °C	16 A, 20 A	Round	10000 Steps	14 V	6000 Cycles	125 V
Switch Components RB1-1A-DC-2-B	Panel Mount, Threaded Body with Nut	Quick Connect - 0.187" (4.7mm)	No Marking	Black	SPST	20.2 mm	On-Off	-25 °C	85 °C	16 A, 20 A	Round	10000 Steps	14 V	6000 Cycles	125 V
