RB1-1A-DC-2-R

Active

Switch Components

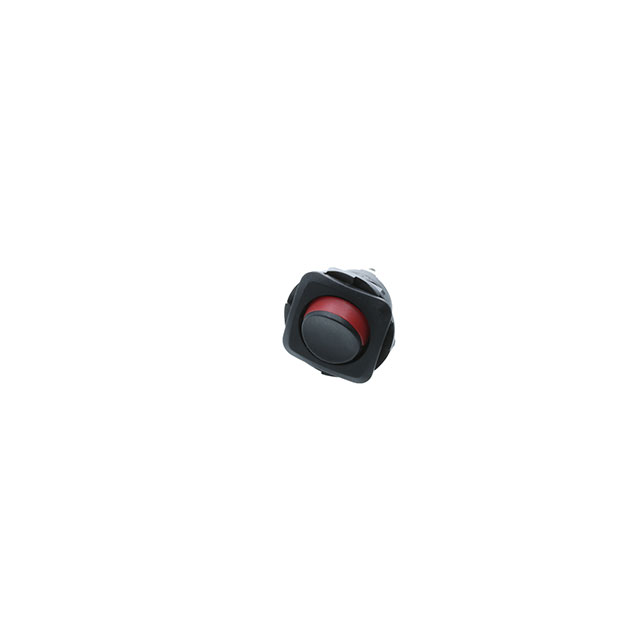

SWITCH ROCKER SPST 10A 125V

Search across all available documentation for this part.

Active

Switch Components

SWITCH ROCKER SPST 10A 125V

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	RB1-1A-DC-2-R	RB1-1A Series

Actuator Marking	No Marking	Dot, O -, No Marking
Actuator Type	Round	Round
Circuit	SPST	SPST
Color - Actuator/Cap	Black, Red	Black, Red
Current Rating (Amps)	20 A, 16 A	16 - 20 A
Electrical Life	6000 Cycles	6000 Cycles
Mechanical Life	10000 Steps	10000 Steps
Mounting Type	Panel Mount, Threaded Body with Nut	Panel Mount, Threaded Body with Nut
Operating Temperature [Max]	85 °C	85 °C
Operating Temperature [Min]	-25 °C	-25 °C
Panel Cutout Dimensions [diameter]	20.2 mm	20.2 mm
Switch Function	On-Off	On-Off
Termination Style	Quick Connect - 0.187" (4.7mm)	Quick Connect - 0.187" (4.7mm)
Voltage Rating - AC	125 V	125 V
Voltage Rating - DC	14 V	14 V

VAC SCREW, SPST OFF-ON W/PRINT

Part	Mounting Type	Termination Style	Actuator Marking	Color - Actuator/Cap	Circuit	Panel Cutout Dimensions [diameter]	Switch Function	Operating Temperature [Min]	Operating Temperature [Max]	Current Rating (Amps)	Actuator Type	Mechanical Life	Voltage Rating - DC	Electrical Life	Voltage Rating - AC
Switch Components RB1-1A-AC-2-B-3	Panel Mount, Threaded Body with Nut	Quick Connect - 0.187" (4.7mm)	Dot	Black	SPST	20.2 mm	On-Off	-25 °C	85 °C	16 A	Round
Switch Components RB1-1A-DC-2-B-3	Panel Mount, Threaded Body with Nut	Quick Connect - 0.187" (4.7mm)	Dot	Black	SPST	20.2 mm	On-Off	-25 °C	85 °C	16 A, 20 A	Round	10000 Steps	14 V	6000 Cycles	125 V
Switch Components RB1-1A-DC-2-B-1	Panel Mount, Threaded Body with Nut	Quick Connect - 0.187" (4.7mm)	O -	Black	SPST	20.2 mm	On-Off	-25 °C	85 °C	16 A, 20 A	Round	10000 Steps	14 V	6000 Cycles	125 V
Switch Components RB1-1A-AC-2-B-1	Panel Mount, Threaded Body with Nut	Quick Connect - 0.187" (4.7mm)	O -	Black	SPST	20.2 mm	On-Off	-25 °C	85 °C	16 A	Round
Switch Components RB1-1A-AC-2-B	Panel Mount, Threaded Body with Nut	Quick Connect - 0.187" (4.7mm)	No Marking	Black	SPST	20.2 mm	On-Off	-25 °C	85 °C	16 A	Round
Switch Components RB1-1A-DC-2-R	Panel Mount, Threaded Body with Nut	Quick Connect - 0.187" (4.7mm)	No Marking	Black, Red	SPST	20.2 mm	On-Off	-25 °C	85 °C	16 A, 20 A	Round	10000 Steps	14 V	6000 Cycles	125 V
Switch Components RB1-1A-DC-2-B	Panel Mount, Threaded Body with Nut	Quick Connect - 0.187" (4.7mm)	No Marking	Black	SPST	20.2 mm	On-Off	-25 °C	85 °C	16 A, 20 A	Round	10000 Steps	14 V	6000 Cycles	125 V

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Rocker Switch SPST 16 (AC), 20 (DC) 125 V Panel Mount, Threaded Body with Nut
