RB1-1A-AC-2-B-1

Active

Switch Components

SWITCH ROCKER SPST

Search across all available documentation for this part.

Active

Switch Components

SWITCH ROCKER SPST

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

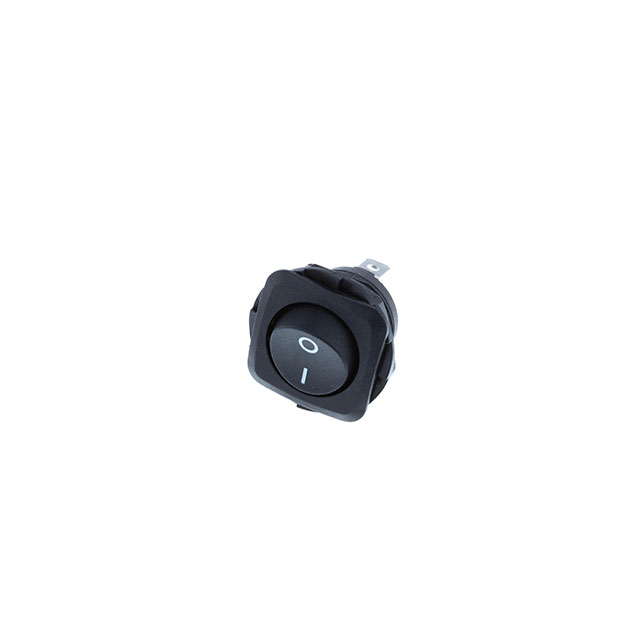

Rocker Switch SPST 16A (AC) Panel Mount, Threaded Body with Nut

Technical documentation and resources

Parameters and characteristics commom to parts in this series

Specification	RB1-1A-AC-2-B-1	RB1-1A Series

Actuator Marking	O -	Dot, O -, No Marking
Actuator Type	Round	Round
Circuit	SPST	SPST
Color - Actuator/Cap	Black	Black, Red
Current Rating (Amps)	16 A	16 - 20 A
Electrical Life	-	6000 Cycles
Mechanical Life	-	10000 Steps
Mounting Type	Panel Mount, Threaded Body with Nut	Panel Mount, Threaded Body with Nut
Operating Temperature [Max]	85 °C	85 °C
Operating Temperature [Min]	-25 °C	-25 °C
Panel Cutout Dimensions [diameter]	20.2 mm	20.2 mm
Switch Function	On-Off	On-Off
Termination Style	Quick Connect - 0.187" (4.7mm)	Quick Connect - 0.187" (4.7mm)
Voltage Rating - AC	-	125 V
Voltage Rating - DC	-	14 V

VAC SCREW, SPST OFF-ON W/PRINT

Part	Mounting Type	Termination Style	Actuator Marking	Color - Actuator/Cap	Circuit	Panel Cutout Dimensions [diameter]	Switch Function	Operating Temperature [Min]	Operating Temperature [Max]	Current Rating (Amps)	Actuator Type	Mechanical Life	Voltage Rating - DC	Electrical Life	Voltage Rating - AC
Switch Components RB1-1A-AC-2-B-3	Panel Mount, Threaded Body with Nut	Quick Connect - 0.187" (4.7mm)	Dot	Black	SPST	20.2 mm	On-Off	-25 °C	85 °C	16 A	Round
Switch Components RB1-1A-DC-2-B-3	Panel Mount, Threaded Body with Nut	Quick Connect - 0.187" (4.7mm)	Dot	Black	SPST	20.2 mm	On-Off	-25 °C	85 °C	16 A, 20 A	Round	10000 Steps	14 V	6000 Cycles	125 V
Switch Components RB1-1A-DC-2-B-1	Panel Mount, Threaded Body with Nut	Quick Connect - 0.187" (4.7mm)	O -	Black	SPST	20.2 mm	On-Off	-25 °C	85 °C	16 A, 20 A	Round	10000 Steps	14 V	6000 Cycles	125 V
Switch Components RB1-1A-AC-2-B-1	Panel Mount, Threaded Body with Nut	Quick Connect - 0.187" (4.7mm)	O -	Black	SPST	20.2 mm	On-Off	-25 °C	85 °C	16 A	Round
Switch Components RB1-1A-AC-2-B	Panel Mount, Threaded Body with Nut	Quick Connect - 0.187" (4.7mm)	No Marking	Black	SPST	20.2 mm	On-Off	-25 °C	85 °C	16 A	Round
Switch Components RB1-1A-DC-2-R	Panel Mount, Threaded Body with Nut	Quick Connect - 0.187" (4.7mm)	No Marking	Black, Red	SPST	20.2 mm	On-Off	-25 °C	85 °C	16 A, 20 A	Round	10000 Steps	14 V	6000 Cycles	125 V
Switch Components RB1-1A-DC-2-B	Panel Mount, Threaded Body with Nut	Quick Connect - 0.187" (4.7mm)	No Marking	Black	SPST	20.2 mm	On-Off	-25 °C	85 °C	16 A, 20 A	Round	10000 Steps	14 V	6000 Cycles	125 V
