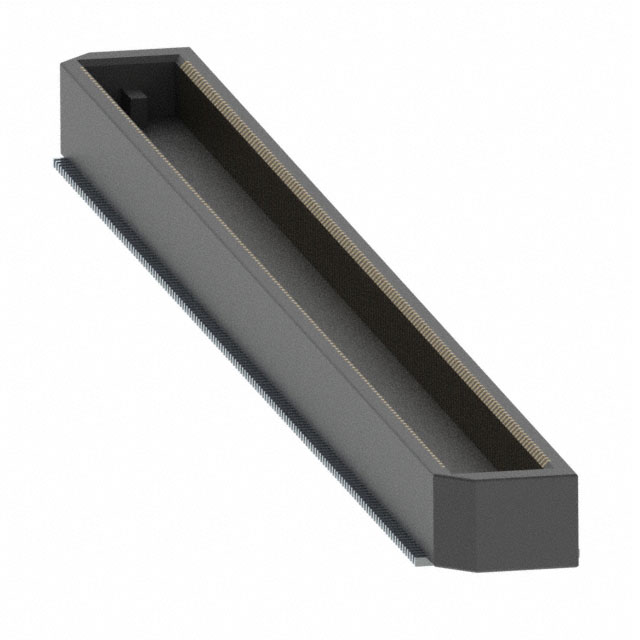

BTH-150-01-F-D

Active

Samtec Inc.

CONN HDR 300POS SMD GOLD

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

BTH-150-01-F-D

Active

Samtec Inc.

CONN HDR 300POS SMD GOLD

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	BTH-150-01-F-D

Connector Type	Header, Outer Shroud Contacts
Contact Finish	Gold
Contact Finish Thickness	3 Áin
Contact Finish Thickness	0.076 Ám
Mated Stacking Heights	5 mm
Mounting Type	Surface Mount
Number of Positions	300
Number of Rows	2
Pitch [x]	0.5 mm
Pitch [x]	0.02 in

BTH-150 Series

Part	Height Above Board	Height Above Board	Contact Finish	Connector Type	Mounting Type	Number of Positions	Mated Stacking Heights	Contact Finish Thickness	Contact Finish Thickness	Features	Pitch [x]	Pitch [x]	Number of Rows	Height Above Board [z]	Height Above Board [z]
Samtec Inc. BTH-150-03-H-D-A-K	10.27 mm	0.404 in	Gold	Header Outer Shroud Contacts	Surface Mount	300	11 mm	0.76 Ám	30 Áin	Board Guide	0.5 mm	0.02 in	2
Samtec Inc. BTH-150-03-L-D-A-K	10.27 mm	0.404 in	Gold	Header Outer Shroud Contacts	Surface Mount	300	11 mm	0.25 Ám	10 Áin	Board Guide	0.5 mm	0.02 in	2
Samtec Inc. BTH-150-09-L-D-A	13.25 mm	0.522 in	Gold	Header Outer Shroud Contacts	Surface Mount	300	14 mm	0.25 Ám	10 Áin	Board Guide	0.5 mm	0.02 in	2
Samtec Inc. BTH-150-01-L-D-A			Gold	Header Outer Shroud Contacts	Surface Mount	300	5 mm	0.25 Ám	10 Áin	Board Guide	0.5 mm	0.02 in	2
Samtec Inc. BTH-150-05-L-D-A	18.24 mm	0.718 in	Gold	Header Outer Shroud Contacts	Surface Mount	300	19 mm	0.25 Ám	10 Áin	Board Guide	0.5 mm	0.02 in	2
Samtec Inc. BTH-150-03-F-D-A-K	10.27 mm	0.404 in	Gold	Header Outer Shroud Contacts	Surface Mount	300	11 mm	0.076 Ám	3 Áin	Board Guide	0.5 mm	0.02 in	2
Samtec Inc. BTH-150-01-C-D-A			Gold	Header Outer Shroud Contacts	Surface Mount	300	5 mm	1.27 µm	50 µin	Board Guide	0.5 mm	0.02 in	2
Samtec Inc. BTH-150-06-L-D-A			Gold	Header Outer Shroud Contacts	Surface Mount	300	22 mm	0.25 Ám	10 Áin	Board Guide	0.5 mm	0.02 in	2	21.23 mm	0.836 "
Samtec Inc. BTH-150-01-F-D			Gold	Header Outer Shroud Contacts	Surface Mount	300	5 mm	0.076 Ám	3 Áin		0.5 mm	0.02 in	2
Samtec Inc. BTH-150-01-C-D-A-K			Gold	Header Outer Shroud Contacts	Surface Mount	300	5 mm	1.27 µm	50 µin	Board Guide	0.5 mm	0.02 in	2

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tube	36	$ 15.72

Description

General part information

BTH-150 Series

300 Position Connector Header, Outer Shroud Contacts Surface Mount Gold
