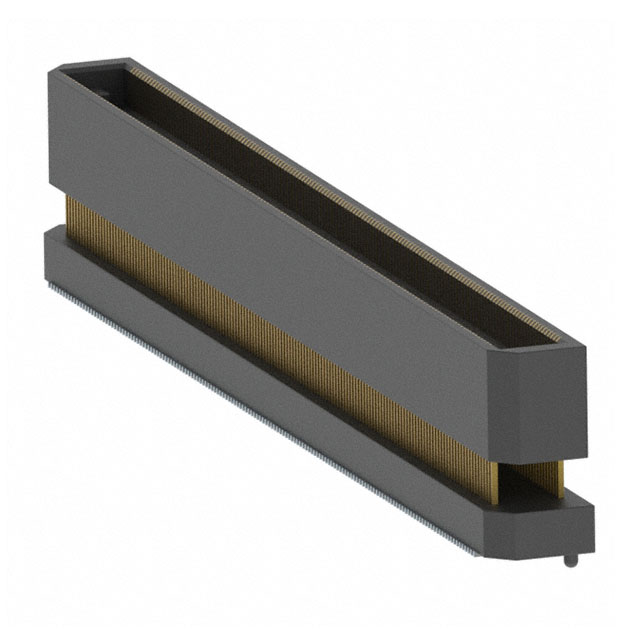

BTH-150-09-L-D-A

Active

Samtec Inc.

0.5MM 2 300P VERTICAL WELDING SMD,P=0.5MM BOARD-TO-BOARD AND BACKPLANE CONNECTOR ROHS

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

BTH-150-09-L-D-A

Active

Samtec Inc.

0.5MM 2 300P VERTICAL WELDING SMD,P=0.5MM BOARD-TO-BOARD AND BACKPLANE CONNECTOR ROHS

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	BTH-150-09-L-D-A

Connector Type	Header, Outer Shroud Contacts
Contact Finish	Gold
Contact Finish Thickness	10 Áin
Contact Finish Thickness	0.25 Ám
Features	Board Guide
Height Above Board	0.522 in
Height Above Board	13.25 mm
Mated Stacking Heights	14 mm
Mounting Type	Surface Mount
Number of Positions	300
Number of Rows	2
Pitch [x]	0.5 mm
Pitch [x]	0.02 in

BTH-150 Series

Part	Height Above Board	Height Above Board	Contact Finish	Connector Type	Mounting Type	Number of Positions	Mated Stacking Heights	Contact Finish Thickness	Contact Finish Thickness	Features	Pitch [x]	Pitch [x]	Number of Rows	Height Above Board [z]	Height Above Board [z]
Samtec Inc. BTH-150-03-H-D-A-K	10.27 mm	0.404 in	Gold	Header Outer Shroud Contacts	Surface Mount	300	11 mm	0.76 Ám	30 Áin	Board Guide	0.5 mm	0.02 in	2
Samtec Inc. BTH-150-03-L-D-A-K	10.27 mm	0.404 in	Gold	Header Outer Shroud Contacts	Surface Mount	300	11 mm	0.25 Ám	10 Áin	Board Guide	0.5 mm	0.02 in	2
Samtec Inc. BTH-150-09-L-D-A	13.25 mm	0.522 in	Gold	Header Outer Shroud Contacts	Surface Mount	300	14 mm	0.25 Ám	10 Áin	Board Guide	0.5 mm	0.02 in	2
Samtec Inc. BTH-150-01-L-D-A			Gold	Header Outer Shroud Contacts	Surface Mount	300	5 mm	0.25 Ám	10 Áin	Board Guide	0.5 mm	0.02 in	2
Samtec Inc. BTH-150-05-L-D-A	18.24 mm	0.718 in	Gold	Header Outer Shroud Contacts	Surface Mount	300	19 mm	0.25 Ám	10 Áin	Board Guide	0.5 mm	0.02 in	2
Samtec Inc. BTH-150-03-F-D-A-K	10.27 mm	0.404 in	Gold	Header Outer Shroud Contacts	Surface Mount	300	11 mm	0.076 Ám	3 Áin	Board Guide	0.5 mm	0.02 in	2
Samtec Inc. BTH-150-01-C-D-A			Gold	Header Outer Shroud Contacts	Surface Mount	300	5 mm	1.27 µm	50 µin	Board Guide	0.5 mm	0.02 in	2
Samtec Inc. BTH-150-06-L-D-A			Gold	Header Outer Shroud Contacts	Surface Mount	300	22 mm	0.25 Ám	10 Áin	Board Guide	0.5 mm	0.02 in	2	21.23 mm	0.836 "
Samtec Inc. BTH-150-01-F-D			Gold	Header Outer Shroud Contacts	Surface Mount	300	5 mm	0.076 Ám	3 Áin		0.5 mm	0.02 in	2
Samtec Inc. BTH-150-01-C-D-A-K			Gold	Header Outer Shroud Contacts	Surface Mount	300	5 mm	1.27 µm	50 µin	Board Guide	0.5 mm	0.02 in	2

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	1	$ 43.42
LCSC	Piece	1	$ 50.81
		200	$ 20.27
		500	$ 19.60
		1000	$ 19.26

Description

General part information

BTH-150 Series

300 Position Connector Header, Outer Shroud Contacts Surface Mount Gold
