BTH-150 Series

Catalog

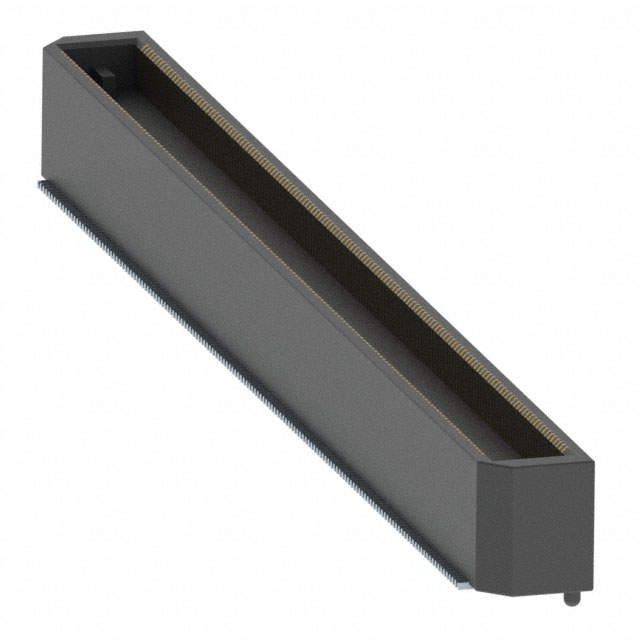

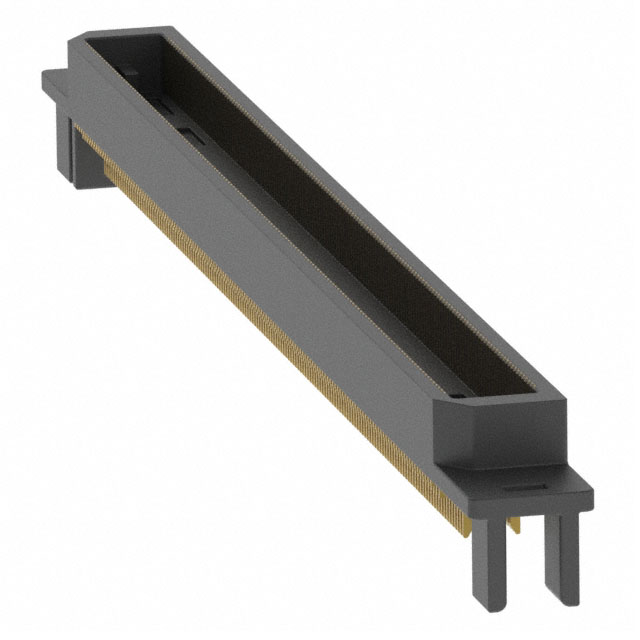

CONN MICRO TERMINAL HDR 300 POS 0.5MM SOLDER ST SMD TRAY

Part	Height Above Board	Height Above Board	Contact Finish	Connector Type	Mounting Type	Number of Positions	Mated Stacking Heights	Contact Finish Thickness	Contact Finish Thickness	Features	Pitch [x]	Pitch [x]	Number of Rows	Height Above Board [z]	Height Above Board [z]
Samtec Inc. BTH-150-03-H-D-A-K	10.27 mm	0.404 in	Gold	Header Outer Shroud Contacts	Surface Mount	300	11 mm	0.76 Ám	30 Áin	Board Guide	0.5 mm	0.02 in	2
Samtec Inc. BTH-150-03-L-D-A-K	10.27 mm	0.404 in	Gold	Header Outer Shroud Contacts	Surface Mount	300	11 mm	0.25 Ám	10 Áin	Board Guide	0.5 mm	0.02 in	2
Samtec Inc. BTH-150-09-L-D-A	13.25 mm	0.522 in	Gold	Header Outer Shroud Contacts	Surface Mount	300	14 mm	0.25 Ám	10 Áin	Board Guide	0.5 mm	0.02 in	2
Samtec Inc. BTH-150-01-L-D-A			Gold	Header Outer Shroud Contacts	Surface Mount	300	5 mm	0.25 Ám	10 Áin	Board Guide	0.5 mm	0.02 in	2
Samtec Inc. BTH-150-05-L-D-A	18.24 mm	0.718 in	Gold	Header Outer Shroud Contacts	Surface Mount	300	19 mm	0.25 Ám	10 Áin	Board Guide	0.5 mm	0.02 in	2
Samtec Inc. BTH-150-03-F-D-A-K	10.27 mm	0.404 in	Gold	Header Outer Shroud Contacts	Surface Mount	300	11 mm	0.076 Ám	3 Áin	Board Guide	0.5 mm	0.02 in	2
Samtec Inc. BTH-150-01-C-D-A			Gold	Header Outer Shroud Contacts	Surface Mount	300	5 mm	1.27 µm	50 µin	Board Guide	0.5 mm	0.02 in	2
Samtec Inc. BTH-150-06-L-D-A			Gold	Header Outer Shroud Contacts	Surface Mount	300	22 mm	0.25 Ám	10 Áin	Board Guide	0.5 mm	0.02 in	2	21.23 mm	0.836 "
Samtec Inc. BTH-150-01-F-D			Gold	Header Outer Shroud Contacts	Surface Mount	300	5 mm	0.076 Ám	3 Áin		0.5 mm	0.02 in	2
Samtec Inc. BTH-150-01-C-D-A-K			Gold	Header Outer Shroud Contacts	Surface Mount	300	5 mm	1.27 µm	50 µin	Board Guide	0.5 mm	0.02 in	2
