Technical Specifications
Parameters and characteristics for this part
| Specification | 2-1718324-1 |
|---|---|
| Color | Gray |
| Connector Type | Plug |
| Contact Termination | Crimp |
| Contact Type | Tab |
| Insulation Material | Polybutylene Terephthalate (PBT), Glass Filled |
| Mounting Type | Free Hanging (In-Line) |
| Note | Contacts Not Included |
| Number of Positions | 62 |
| Operating Temperature [Max] | 120 °C |
| Operating Temperature [Min] | -40 °C |
| Pitch [x] | 5 mm |
| Pitch [x] | 0.197 in |
| Row Spacing | 5.51 mm |
| Row Spacing [x] | 0.217 in |
LEAVYSEAL Series
| Part | Insulation Material | Connector Type | Features | Operating Temperature [Min] | Operating Temperature [Max] | Mounting Type | Contact Termination | Row Spacing | Row Spacing | Number of Positions | Contact Type | Fastening Type | Color | Contact Shape | Contact Length - Mating | Contact Length - Mating | Style | Insulation Color | Termination | Shrouding | Contact Finish - Mating | Contact Finish - Post | Number of Positions Loaded | Contact Material | Pitch [x] | Pitch [x] | Number of Rows | Note | Row Spacing [Max] | Row Spacing [Max] | Accessory Type | For Use With/Related Products | Row Spacing [x] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
TE Connectivity Raychem Cable Protection | Polybutylene Terephthalate (PBT) Glass Filled | Receptacle | Sealed | -40 °C | 120 °C | Free Hanging (In-Line) Right Angle | Crimp | 0.157 in | 4 mm | 62 | Female Socket | Lever Lock | Blue | ||||||||||||||||||||
TE Connectivity Raychem Cable Protection | Polybutylene Terephthalate (PBT) Glass Filled | Header | Board Guide Mounting Flange Sealed | Through Hole | 62 | Tab | Push-Pull | Rectangular | 6.7 mm | 0.264 in | Board to Cable/Wire | Gray | Solder | Shrouded - 4 Wall | Silver | Tin | All | Copper Alloy | |||||||||||||||
TE Connectivity Raychem Cable Protection | Polybutylene Terephthalate (PBT) Glass Filled | Housing for Female Insert | IP67 | -40 °C | 120 °C | Free Hanging (In-Line) | Crimp | 22 positions | Female Socket | Lever Lock | Gray | 4 mm | 0.157 in | 3 | |||||||||||||||||||
TE Connectivity Raychem Cable Protection | Polybutylene Terephthalate (PBT) Glass Filled | Plug | Sealed | -40 °C | 120 °C | Crimp | 0.157 in | 4 mm | 22 positions | Tab | Slide-On | Black | Contacts Not Included | ||||||||||||||||||||
TE Connectivity Raychem Cable Protection | |||||||||||||||||||||||||||||||||
TE Connectivity Raychem Cable Protection | Polybutylene Terephthalate (PBT) Glass Filled | Receptacle | IP67 | -40 °C | 120 °C | Free Hanging (In-Line) | Crimp | 31 | Female Socket | Lever Lock | Violet | 3 | 0.236 in | 6 mm | |||||||||||||||||||
TE Connectivity Raychem Cable Protection | Polybutylene Terephthalate (PBT) Glass Filled | Receptacle | IP67/IP69K Sealed Strain Relief | -40 °C | 120 °C | Free Hanging (In-Line) | Crimp | 29 | Female Socket | Lever Lock | Black | Contacts Not Included | |||||||||||||||||||||
TE Connectivity Raychem Cable Protection | Polybutylene Terephthalate (PBT) Glass Filled | Plug | IP67/IP69K Sealed Terminal Position Lock (TPA) | -40 °C | 120 °C | Crimp | 22 positions | Tab | Black | Contacts Not Included | |||||||||||||||||||||||
TE Connectivity Raychem Cable Protection | Sealed | 21 | Cap (Cover) | LEAVYSEAL Series | |||||||||||||||||||||||||||||
TE Connectivity Raychem Cable Protection | Polybutylene Terephthalate (PBT) Glass Filled | Plug | -40 °C | 120 °C | Free Hanging (In-Line) | Crimp | 5.51 mm | 62 | Tab | Gray | 5 mm | 0.197 in | Contacts Not Included | 0.217 in |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
LEAVYSEAL Series

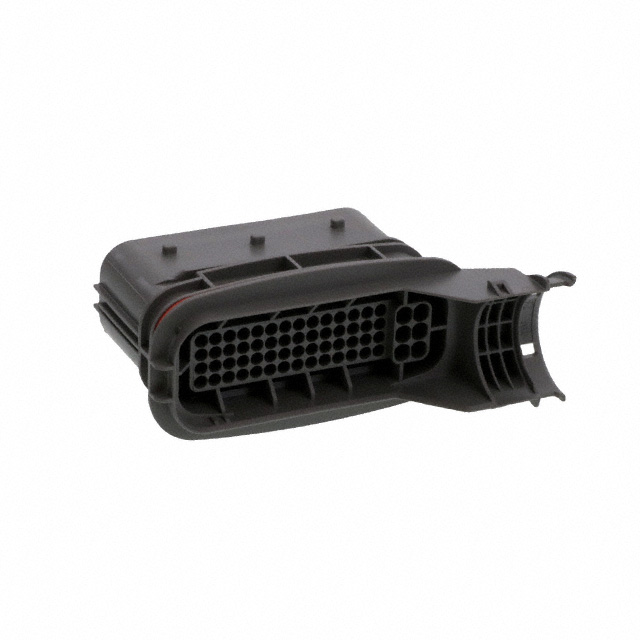

62 Position Housing, Housing for Male Terminals, Wire-to-Wire, 4 mm / 5 mm [.157 in / .197 in] Centerline, Sealable, Gray, Wire & Cable, LEAVYSEAL
