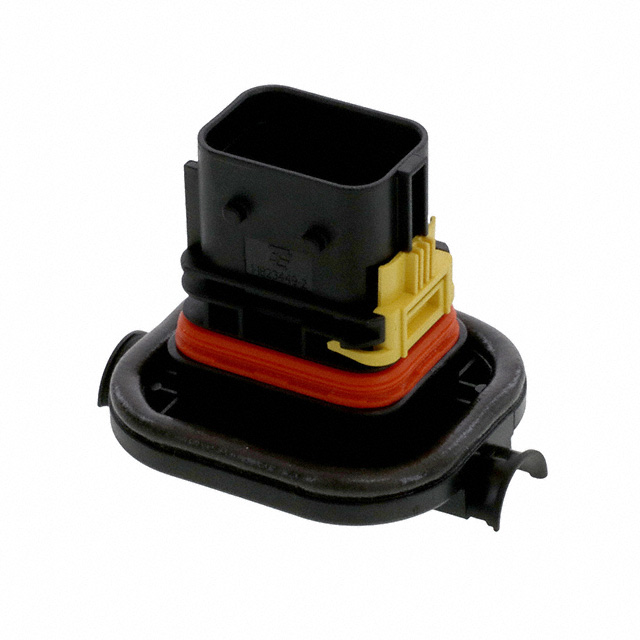

1-1823448-2

Active

TE Connectivity Raychem Cable Protection

18POS,LEAVYSEAL,TAB HSG ASSY,SLD

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Product Change Notice EN +6

1-1823448-2

Active

TE Connectivity Raychem Cable Protection

18POS,LEAVYSEAL,TAB HSG ASSY,SLD

Deep-Dive with AI

DocumentsDatasheet Product Change Notice EN +6

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	1-1823448-2

Color	Black
Connector Type	Plug
Contact Termination	Crimp
Contact Type	Tab
Fastening Type	Slide-On
Features	Sealed
Insulation Material	Polybutylene Terephthalate (PBT), Glass Filled
Note	Contacts Not Included
Number of Positions	22 positions
Operating Temperature [Max]	120 °C
Operating Temperature [Min]	-40 °C
Row Spacing	0.157 in
Row Spacing	4 mm

LEAVYSEAL Series

Part	Insulation Material	Connector Type	Features	Operating Temperature [Min]	Operating Temperature [Max]	Mounting Type	Contact Termination	Row Spacing	Row Spacing	Number of Positions	Contact Type	Fastening Type	Color	Contact Shape	Contact Length - Mating	Contact Length - Mating	Style	Insulation Color	Termination	Shrouding	Contact Finish - Mating	Contact Finish - Post	Number of Positions Loaded	Contact Material	Pitch [x]	Pitch [x]	Number of Rows	Note	Row Spacing [Max]	Row Spacing [Max]	Accessory Type	For Use With/Related Products	Row Spacing [x]
TE Connectivity Raychem Cable Protection 1-2366619-2	Polybutylene Terephthalate (PBT) Glass Filled	Receptacle	Sealed	-40 °C	120 °C	Free Hanging (In-Line) Right Angle	Crimp	0.157 in	4 mm	62	Female Socket	Lever Lock	Blue
TE Connectivity Raychem Cable Protection 2-1418362-1	Polybutylene Terephthalate (PBT) Glass Filled	Header	Board Guide Mounting Flange Sealed			Through Hole				62	Tab	Push-Pull		Rectangular	6.7 mm	0.264 in	Board to Cable/Wire	Gray	Solder	Shrouded - 4 Wall	Silver	Tin	All	Copper Alloy
TE Connectivity Raychem Cable Protection 2-1823440-3	Polybutylene Terephthalate (PBT) Glass Filled	Housing for Female Insert	IP67	-40 °C	120 °C	Free Hanging (In-Line)	Crimp			22 positions	Female Socket	Lever Lock	Gray												4 mm	0.157 in	3
TE Connectivity Raychem Cable Protection 1-1823448-2	Polybutylene Terephthalate (PBT) Glass Filled	Plug	Sealed	-40 °C	120 °C		Crimp	0.157 in	4 mm	22 positions	Tab	Slide-On	Black															Contacts Not Included
TE Connectivity Raychem Cable Protection 2-1823402-1
TE Connectivity Raychem Cable Protection 1-2208685-6	Polybutylene Terephthalate (PBT) Glass Filled	Receptacle	IP67	-40 °C	120 °C	Free Hanging (In-Line)	Crimp			31	Female Socket	Lever Lock	Violet														3		0.236 in	6 mm
TE Connectivity Raychem Cable Protection 1-1823402-1	Polybutylene Terephthalate (PBT) Glass Filled	Receptacle	IP67/IP69K Sealed Strain Relief	-40 °C	120 °C	Free Hanging (In-Line)	Crimp			29	Female Socket	Lever Lock	Black															Contacts Not Included
TE Connectivity Raychem Cable Protection 1-1823449-1	Polybutylene Terephthalate (PBT) Glass Filled	Plug	IP67/IP69K Sealed Terminal Position Lock (TPA)	-40 °C	120 °C		Crimp			22 positions	Tab		Black															Contacts Not Included
TE Connectivity Raychem Cable Protection 1-1394052-1			Sealed							21																					Cap (Cover)	LEAVYSEAL Series
TE Connectivity Raychem Cable Protection 2-1718324-1	Polybutylene Terephthalate (PBT) Glass Filled	Plug		-40 °C	120 °C	Free Hanging (In-Line)	Crimp		5.51 mm	62	Tab		Gray												5 mm	0.197 in		Contacts Not Included					0.217 in

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 14.38
		10	$ 14.08
		25	$ 13.71
		72	$ 13.03
		144	$ 11.76
		288	$ 11.69
		504	$ 10.19
Newark	Each	50	$ 10.76
		100	$ 10.17
		250	$ 9.72

Description

General part information

LEAVYSEAL Series

18 Position Housing, Housing for Male Terminals, Wire-to-Wire, 4 mm / 6 mm [.157 in / .236 in] Centerline, Sealable, Black, Wire & Cable, LEAVYSEAL

Documents

Technical documentation and resources

Datasheet

AMP MCP1,5k/2,8 Receptacle Housing, sealed, 22pos. and 1,6/2,8mm Tab Housing, sealed, 22pos

Product Specifications

Datasheet

Digital Datasheet

AMP MCP1.5KTM* / AMP MCP 2.8TM* 22pos. Receptacle Hous-ing, Sealed

Product Specifications
