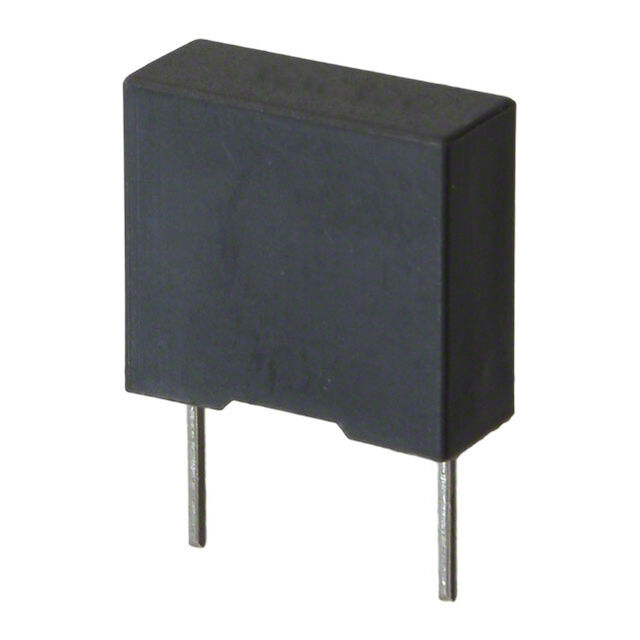

R75QD1220Z330J - R75,R66_10mmx4mm

R75QD1220Z330J

Active
KEMET

CAP, 2200PF, 1 KV, 5%, PP, RADIAL

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsR75QD1220Z330JDatasheet+3
R75QD1220Z330J - R75,R66_10mmx4mm

R75QD1220Z330J

Active
KEMET

CAP, 2200PF, 1 KV, 5%, PP, RADIAL

Deep-Dive with AI

DocumentsR75QD1220Z330JDatasheet+3

Technical Specifications

Parameters and characteristics for this part

SpecificationR75QD1220Z330J
ApplicationsAutomotive, High Frequency, Switching, High Pulse, DV/DT
Capacitance2200 pF
Dielectric MaterialMetallized, Polypropylene (PP)
Lead Spacing7.5 mm
Lead Spacing0.295 in
Mounting TypeThrough Hole
Operating Temperature [Max]105 ░C
Operating Temperature [Min]-55 °C
Package / CaseRadial
RatingsAEC-Q200
Size / Dimension [x]0.394 "
Size / Dimension [x]10 mm
Size / Dimension [y]0.157 in
Size / Dimension [y]4 mm
TerminationPC Pins
Tolerance5 %
Voltage Rating - AC400 V
Voltage Rating - DC1 kVDC
Voltage Rating - DC1 kV

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

DistributorPackageQuantity$
DigikeyBulk 1$ 0.89
10$ 0.65
100$ 0.46
1500$ 0.32
6000$ 0.29
10500$ 0.28
NewarkEach 10$ 0.54
25$ 0.52
50$ 0.50
100$ 0.48
500$ 0.39
1000$ 0.38
2500$ 0.30

Description

General part information

R75QD Series

2200 pF Film Capacitor 400V 1000V (1kV) Polypropylene (PP), Metallized Radial
