R75QD1470Z330J

Active

KEMET

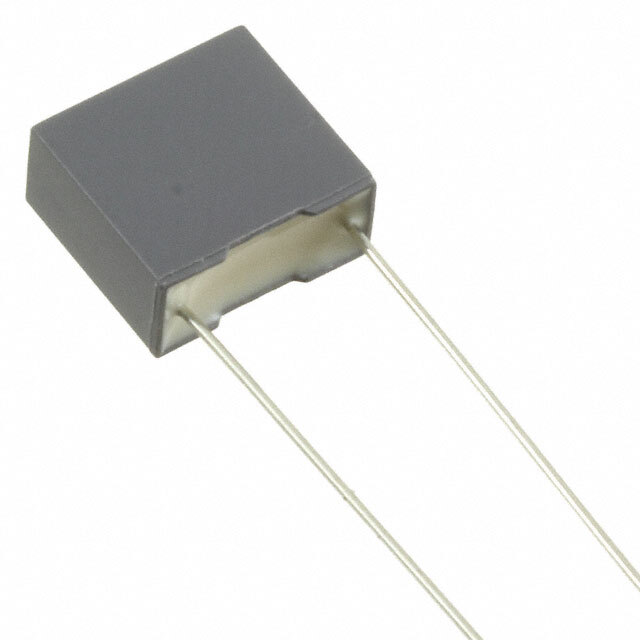

CAP, 4700PF, 1 KV, 5%, PP, RADIAL

Search across all available documentation for this part.

Active

KEMET

CAP, 4700PF, 1 KV, 5%, PP, RADIAL

Technical Specifications

Parameters and characteristics for this part

Specification	R75QD1470Z330J

Applications	Automotive, High Frequency, Switching, High Pulse, DV/DT
Capacitance	4700 pF
Dielectric Material	Metallized, Polypropylene (PP)
Height - Seated (Max) [Max] [z]	10.6 mm
Height - Seated (Max) [Max] [z]	0.417 in
Lead Spacing	7.5 mm
Lead Spacing	0.295 in
Mounting Type	Through Hole
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-55 °C
Package / Case	Radial
Ratings	AEC-Q200
Size / Dimension [x]	0.394 "
Size / Dimension [x]	10 mm
Size / Dimension [y]	5 mm
Size / Dimension [y]	0.197 "
Termination	PC Pins
Tolerance	5 %
Voltage Rating - AC	400 V
Voltage Rating - DC	1 kVDC
Voltage Rating - DC	1 kV

Part	Operating Temperature [Max]	Operating Temperature [Min]	Package / Case	Tolerance	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Ratings	Applications	Voltage Rating - AC	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Dielectric Material	Termination	Mounting Type	Lead Spacing	Lead Spacing	Voltage Rating - DC	Voltage Rating - DC	Capacitance
KEMET R75QD1100Z330J	105 ░C	-55 °C	Radial	5 %	0.118 in	10 mm	0.394 "	3 mm	AEC-Q200	Automotive High Frequency Switching High Pulse DV/DT	400 V	0.319 "	8.1 mm	Metallized Polypropylene (PP)	PC Pins	Through Hole	7.5 mm	0.295 in	1 kVDC	1 kV	0.001 µF
KEMET R75QD1220Z330J	105 ░C	-55 °C	Radial	5 %	0.157 in	10 mm	0.394 "	4 mm	AEC-Q200	Automotive High Frequency Switching High Pulse DV/DT	400 V			Metallized Polypropylene (PP)	PC Pins	Through Hole	7.5 mm	0.295 in	1 kVDC	1 kV	2200 pF
KEMET R75QD1470Z330J	105 ░C	-55 °C	Radial	5 %	0.197 "	10 mm	0.394 "	5 mm	AEC-Q200	Automotive High Frequency Switching High Pulse DV/DT	400 V	0.417 in	10.6 mm	Metallized Polypropylene (PP)	PC Pins	Through Hole	7.5 mm	0.295 in	1 kVDC	1 kV	4700 pF

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

4700 pF Film Capacitor 400V 1000V (1kV) Polypropylene (PP), Metallized Radial
