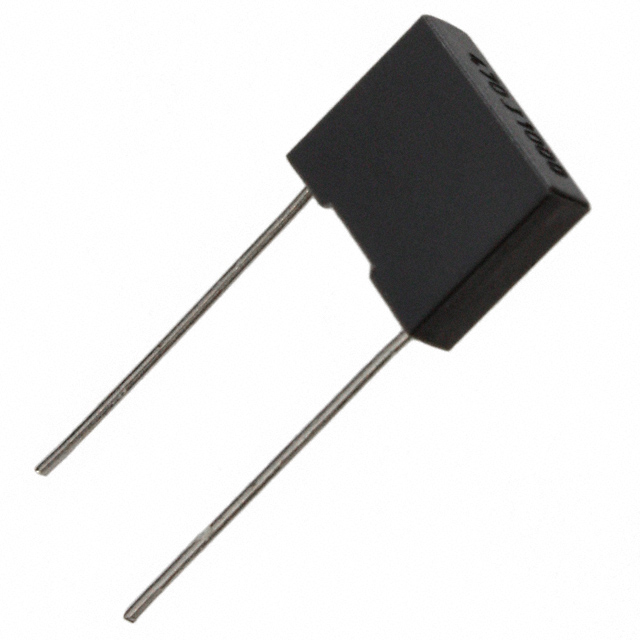

R75QD1100Z330J - R75 Series

R75QD1100Z330J

Active
KEMET

1NF -55℃~+105℃ ±5% PLUGIN,P=7.5MM POLYPROPYLENE FILM CAPACITORS (CBB) ROHS

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsProduct Change Notice ENManufacturer Catalogue EN+3
R75QD1100Z330J - R75 Series

R75QD1100Z330J

Active
KEMET

1NF -55℃~+105℃ ±5% PLUGIN,P=7.5MM POLYPROPYLENE FILM CAPACITORS (CBB) ROHS

Deep-Dive with AI

DocumentsProduct Change Notice ENManufacturer Catalogue EN+3

Technical Specifications

Parameters and characteristics for this part

SpecificationR75QD1100Z330J
ApplicationsAutomotive, High Frequency, Switching, High Pulse, DV/DT
Capacitance0.001 µF
Dielectric MaterialMetallized, Polypropylene (PP)
Height - Seated (Max) [Max] [z]0.319 "
Height - Seated (Max) [Max] [z]8.1 mm
Lead Spacing7.5 mm
Lead Spacing0.295 in
Mounting TypeThrough Hole
Operating Temperature [Max]105 ░C
Operating Temperature [Min]-55 °C
Package / CaseRadial
RatingsAEC-Q200
Size / Dimension [x]10 mm
Size / Dimension [x]0.394 "
Size / Dimension [y]0.118 in
Size / Dimension [y]3 mm
TerminationPC Pins
Tolerance5 %
Voltage Rating - AC400 V
Voltage Rating - DC1 kVDC
Voltage Rating - DC1 kV

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

DistributorPackageQuantity$
DigikeyBulk 1$ 1.04
10$ 0.64
50$ 0.48
100$ 0.43
500$ 0.35
1000$ 0.32
2500$ 0.29
5000$ 0.28
LCSCPiece 1$ 0.23
200$ 0.09
500$ 0.09
1000$ 0.08
NewarkEach 10$ 0.55
25$ 0.52
50$ 0.48
100$ 0.45
500$ 0.36
1000$ 0.34
2500$ 0.29

Description

General part information

R75QD Series

1000 pF Film Capacitor 400V 1000V (1kV) Polypropylene (PP), Metallized Radial
