1-6450820-5
ActiveTE Connectivity Raychem Cable Protection
MBXLE VERT HDR 6P20S
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 1-6450820-5 |
|---|---|
| Color | Black |
| Connector Style | Multi-Beam |
| Connector Type | Header, Male Pins and Blades |
| Contact Finish | Gold |
| Contact Finish Thickness | 0.76 Ám |
| Contact Finish Thickness | 30 Áin |
| Contact Layout, Typical [custom] | 15 |
| Contact Layout, Typical [custom] | 20 |
| Features | Board Lock, Mating Guide |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Through Hole |
| Number of Positions | 26 |
| Number of Positions Loaded | All |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -20 C |
| Pitch [x] | 2.54 mm |
| Pitch [x] | 0.1 in |
| Termination | Press-Fit |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 3024 | $ 7.82 | |
Description
General part information
MULTI-BEAM XLE Series

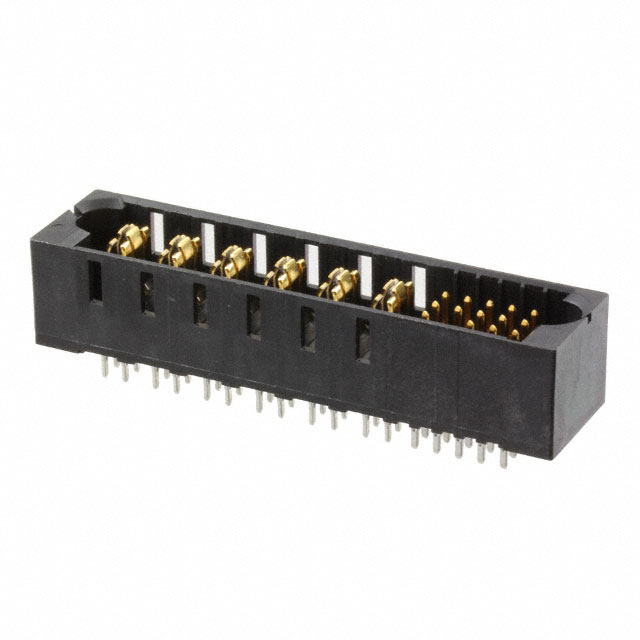

PCB Mount Header, Vertical, Board-to-Board, 26 Position, 2.54 mm / 6.35 mm [.1 in / .25 in] Centerline, Fully Shrouded, Gold (Au), MULTI-BEAM XLE
