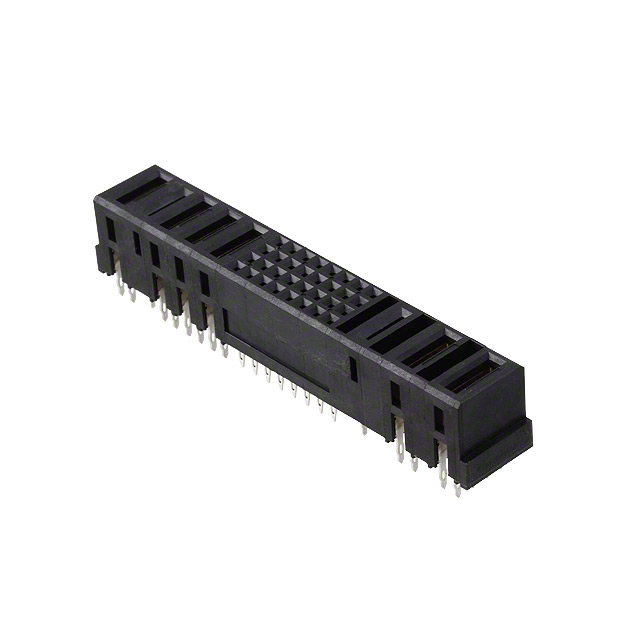

1-6450869-4
ActiveTE Connectivity Raychem Cable Protection
V/R 2ACP+1LP+32S+3HDP+1LP+1P
Deep-Dive with AI
Search across all available documentation for this part.
1-6450869-4
ActiveTE Connectivity Raychem Cable Protection
V/R 2ACP+1LP+32S+3HDP+1LP+1P
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 1-6450869-4 |
|---|---|
| Connector Style | Multi-Beam |
| Connector Type | Receptacle, Female Blade Sockets |
| Contact Finish | Gold |
| Contact Finish Thickness | 0.76 Ám |
| Contact Finish Thickness | 30 Áin |
| Contact Layout, Typical [custom] | 8 |
| Contact Layout, Typical [custom] | 32 |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Through Hole |
| Number of Positions | 40 |
| Number of Positions Loaded | All |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -20 C |
| Termination | Press-Fit |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 1 | $ 18.61 | |
| 10 | $ 18.22 | |||
| 33 | $ 17.74 | |||
| 66 | $ 16.86 | |||
| 231 | $ 15.22 | |||
| 462 | $ 15.12 | |||
Description
General part information
MULTI-BEAM XLE Series
PCB Mount Receptacle, Vertical, Board-to-Board, 40 Position, 2.54 mm / 5.08 mm / 7.62 mm [.1 in / .2 in / .3 in] Centerline, MULTI-BEAM XLE
