2-6450820-0

Active

TE Connectivity Raychem Cable Protection

CONN HEADER MULTI-BEAM 18POS PCB

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	2-6450820-0

Color	Black
Connector Style	Multi-Beam
Connector Type	Header, Male Pins and Blades
Contact Finish	Gold
Contact Finish Thickness	0.76 Ám
Contact Finish Thickness	30 Áin
Contact Layout, Typical	2, 16
Features	Board Lock, Mating Guide
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Positions	18
Number of Positions Loaded	All
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-20 C
Pitch [x]	2.54 mm
Pitch [x]	0.1 in
Termination	Press-Fit

MULTI-BEAM XLE Series

Part	Number of Positions	Color	Connector Style	Termination	Mounting Type	Connector Type	Operating Temperature [Max]	Operating Temperature [Min]	Contact Layout, Typical [custom]	Contact Layout, Typical [custom]	Pitch [x]	Pitch [x]	Material Flammability Rating	Contact Layout, Typical	Contact Finish Thickness	Contact Finish Thickness	Contact Finish	Number of Positions Loaded	Features	Number of Columns	Current Rating (Amps)	Contact Layout, Typical
TE Connectivity Raychem Cable Protection 6450831-2	34	Black	Multi-Beam	Solder	Through Hole Right Angle	Header Male Pins and Blades	125 °C	-40 °C	24	10	2.54 mm	0.1 in	UL94 V-0
TE Connectivity Raychem Cable Protection 2-6450820-0	18	Black	Multi-Beam	Press-Fit	Through Hole	Header Male Pins and Blades	105 ░C	-20 C			2.54 mm	0.1 in	UL94 V-0	2 16	0.76 Ám	30 Áin	Gold	All	Board Lock Mating Guide
TE Connectivity Raychem Cable Protection 1-6450820-5	26	Black	Multi-Beam	Press-Fit	Through Hole	Header Male Pins and Blades	105 ░C	-20 C	20	15	2.54 mm	0.1 in	UL94 V-0		0.76 Ám	30 Áin	Gold	All	Board Lock Mating Guide
TE Connectivity Raychem Cable Protection 1-6450831-1	24	Black	Multi-Beam	Solder	Through Hole Right Angle	Header Male Pins and Blades	125 °C	-40 °C			2.54 mm	0.1 in	UL94 V-0					All	Board Lock Guide Pin
TE Connectivity Raychem Cable Protection 1-6450820-1	36	Black	Multi-Beam	Press-Fit	Through Hole	Header Male Pins and Blades	105 ░C	-20 C	24	12	2.54 mm	0.1 in	UL94 V-0					All	Board Lock Mating Guide	4
TE Connectivity Raychem Cable Protection 6450851-1	46	Black	Multi-Beam	Solder	Through Hole	Blade Sockets Female Sockets Receptacle	105 ░C	-20 C	32	14	2.54 mm	0.1 in	UL94 V-0		0.076 Ám	3 Áin	Gold	All	Board Lock Guide Pin		42 A
TE Connectivity Raychem Cable Protection 1-6450869-4	40		Multi-Beam	Press-Fit	Through Hole	Receptacle Female Blade Sockets	105 ░C	-20 C	32	8			UL94 V-0		0.76 Ám	30 Áin	Gold	All
TE Connectivity Raychem Cable Protection 6450860-2	64	Black	Multi-Beam	Press-Fit	Through Hole	Blade Sockets Female Sockets Receptacle	105 ░C	-20 C			2.54 mm	0.1 in	UL94 V-0	16 Signal Pairs 48 Differential Pairs	0.76 Ám	30 Áin	Gold	All	Board Lock Guide Pin
TE Connectivity Raychem Cable Protection 2-6450860-6	52	Black	Multi-Beam	Press-Fit	Through Hole	Blade Sockets Female Sockets Receptacle			32	20	2.54 mm	0.1 in	UL94 V-0		0.76 Ám	30 Áin	Gold	All	Board Lock Guide Pin
TE Connectivity Raychem Cable Protection 6450843-7	7	Black	Multi-Beam	Press-Fit	Through Hole Right Angle	Header Male Pins and Blades	105 ░C	-20 C					UL94 V-0		0.76 Ám	30 Áin	Gold		Mating Guide			7 Power

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	360	$ 14.90

Description

General part information

MULTI-BEAM XLE Series

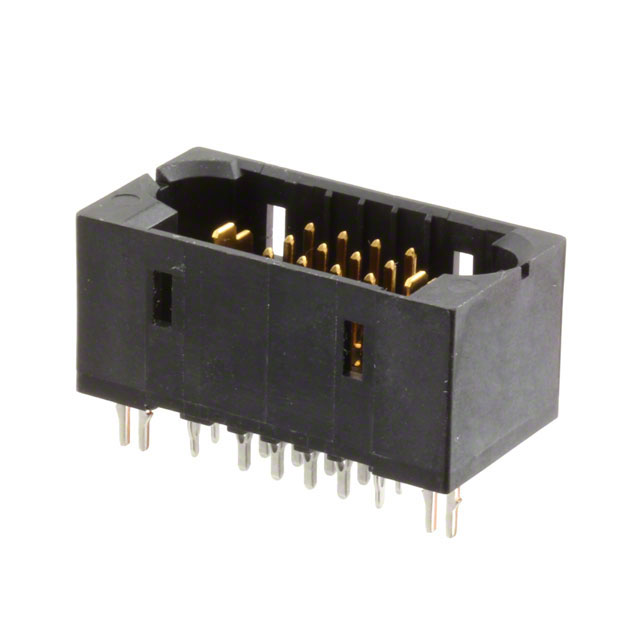

18 Connector Header, Male Pins and Blades Through Hole Black Multi-Beam
