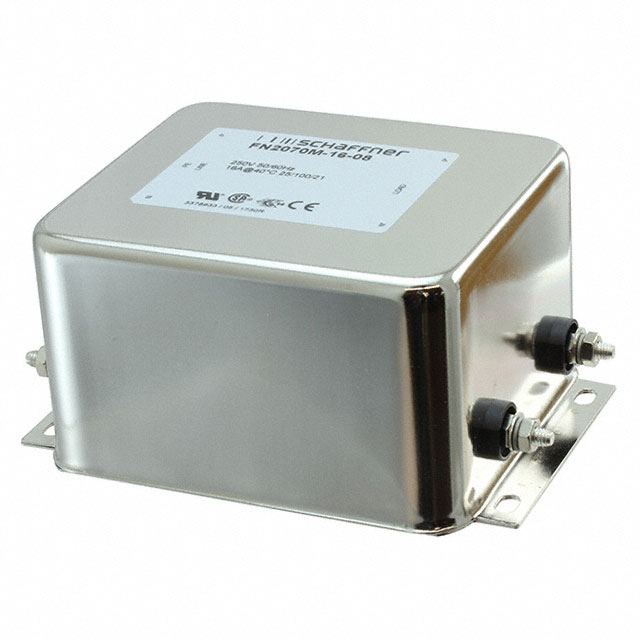

FN2070M-16-08

Active

TE Connectivity Raychem Cable Protection

LINE FILTER 110V/250VAC 16A CHAS

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

FN2070M-16-08

Active

TE Connectivity Raychem Cable Protection

LINE FILTER 110V/250VAC 16A CHAS

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	FN2070M-16-08

Applications	General Purpose
Approval Agency	CSA, ENEC, UR
Configuration	Two Stage
Current	16 A
Filter Type	Single Phase
Frequency - Operating	400 Hz
Inductance	2.8 mH
Mounting Type	Chassis Mount
Operating Temperature [custom]	100 °C, -25 °C
Termination Style	Threaded Post (M4)
Voltage - Rated AC	250 V, 110 V

Schaffner FN2070 Series

Power Line Filters FN2070B-1-06

Part	Termination Style	Current	Frequency - Operating	Mounting Type	Applications	Approval Agency	Configuration	Filter Type	Voltage - Rated AC	Operating Temperature [custom]	Inductance
TE Connectivity Raychem Cable Protection FN2070-16-06	Quick Connect	16 A	400 Hz	Chassis Mount	General Purpose	CSA ENEC UR	Two Stage	Single Phase	110 V 250 V	-25 °C 100 °C	2.8 mH
TE Connectivity Raychem Cable Protection FN2070-10-07	Wire Leads	10 A	400 Hz	Chassis Mount	General Purpose	CSA ENEC UR	Two Stage	Single Phase	110 V 250 V	-25 °C 100 °C	4.5 mH
TE Connectivity Raychem Cable Protection FN2070-12-07	Wire Leads	12 A	400 Hz	Chassis Mount	General Purpose	CSA ENEC UR	Two Stage	Single Phase	110 V 250 V	-25 °C 100 °C	3.25 mH
TE Connectivity Raychem Cable Protection FN2070-6-06	Quick Connect	6 A	400 Hz	Chassis Mount	General Purpose	CSA ENEC UR	Two Stage	Single Phase	110 V 250 V	-25 °C 100 °C	7.8 mH
TE Connectivity Raychem Cable Protection FN2070-25-08	Threaded Post (M4)	25 A	400 Hz	Chassis Mount	General Purpose	CSA ENEC UR	Two Stage	Single Phase	110 V 250 V	-25 °C 100 °C	2 mH
TE Connectivity Raychem Cable Protection FN2070-1-06	Quick Connect	1 A	400 Hz	Chassis Mount	General Purpose	CSA ENEC UR	Two Stage	Single Phase	110 V 250 V	-25 °C 100 °C	22 mH
TE Connectivity Raychem Cable Protection FN2070-16-46	Terminal Block	16 A	400 Hz	Chassis Mount	General Purpose	CSA ENEC UR	Two Stage	Single Phase	110 V 250 V	-25 °C 100 °C	2.8 mH
TE Connectivity Raychem Cable Protection FN2070-3-07	Wire Leads	3 A	400 Hz	Chassis Mount	General Purpose	CSA ENEC UR	Two Stage	Single Phase	110 V 250 V	-25 °C 100 °C	9.8 mH
TE Connectivity Raychem Cable Protection FN2070A-6-06	Quick Connect	6 A	400 Hz	Chassis Mount	Safety	CSA ENEC UR	Two Stage	Single Phase	110 V 250 V	-25 °C 100 °C	7.8 mH
TE Connectivity Raychem Cable Protection FN2070A-10-06	Quick Connect	10 A	400 Hz	Chassis Mount	Safety	CSA ENEC UR	Two Stage	Single Phase	110 V 250 V	-25 °C 100 °C	4.5 mH

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	10	$ 83.87
		30	$ 80.98
		50	$ 78.08
		100	$ 75.31

Description

General part information

Schaffner FN2070 Series

Power Line Filters FN2070B-1-06
