Technical Specifications
Parameters and characteristics for this part

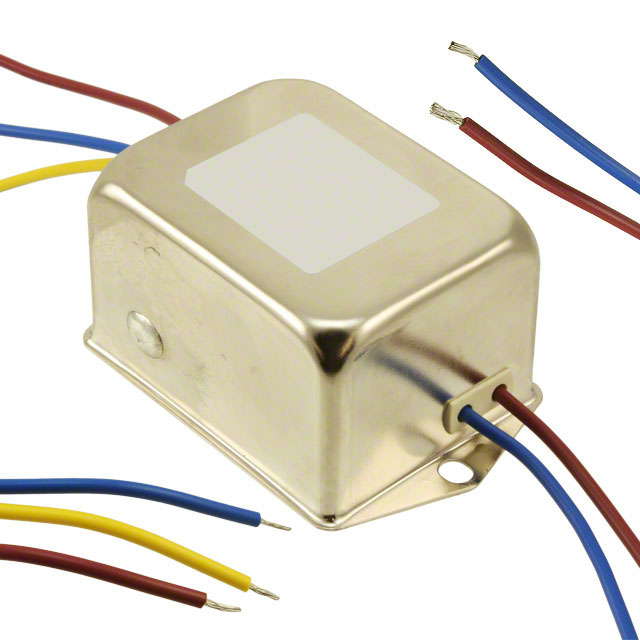

| Specification | FN2070-3-07 |
|---|---|
| Applications | General Purpose |
| Approval Agency | CSA, ENEC, UR |
| Configuration | Two Stage |
| Current | 3 A |
| Filter Type | Single Phase |
| Frequency - Operating | 400 Hz |
| Inductance | 9.8 mH |
| Mounting Type | Chassis Mount |
| Operating Temperature [custom] | 100 °C, -25 °C |
| Termination Style | Wire Leads |
| Voltage - Rated AC | 250 V, 110 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 1 | $ 35.47 | |
| 10 | $ 28.93 | |||
| 25 | $ 26.67 | |||
| 40 | $ 25.58 | |||
| 80 | $ 24.29 | |||
Description
General part information
Schaffner FN2070 Series
Power Line Filters FN2070B-1-06
Documents
Technical documentation and resources
