FN2070-1-06
ActiveTE Connectivity Raychem Cable Protection

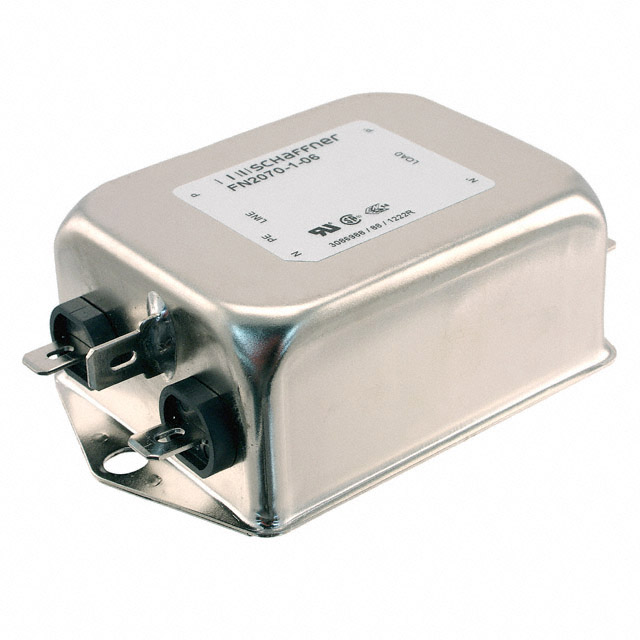

SINGLE PHASE EMI FILTER, 250V, 50/60HZHZ, ROHS COMPLIANT PACKAGE
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
FN2070-1-06
ActiveTE Connectivity Raychem Cable Protection
SINGLE PHASE EMI FILTER, 250V, 50/60HZHZ, ROHS COMPLIANT PACKAGE
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | FN2070-1-06 |
|---|---|
| Applications | General Purpose |
| Approval Agency | CSA, ENEC, UR |
| Configuration | Two Stage |
| Current | 1 A |
| Filter Type | Single Phase |
| Frequency - Operating | 400 Hz |
| Inductance | 22 mH |
| Mounting Type | Chassis Mount |
| Operating Temperature [custom] | 100 °C, -25 °C |
| Termination Style | Quick Connect |
| Voltage - Rated AC | 250 V, 110 V |
Schaffner FN2070 Series
Power Line Filters FN2070B-1-06
| Part | Termination Style | Current | Frequency - Operating | Mounting Type | Applications | Approval Agency | Configuration | Filter Type | Voltage - Rated AC | Operating Temperature [custom] | Inductance |
|---|---|---|---|---|---|---|---|---|---|---|---|
TE Connectivity Raychem Cable Protection | Quick Connect | 16 A | 400 Hz | Chassis Mount | General Purpose | CSA ENEC UR | Two Stage | Single Phase | 110 V 250 V | -25 °C 100 °C | 2.8 mH |
TE Connectivity Raychem Cable Protection | Wire Leads | 10 A | 400 Hz | Chassis Mount | General Purpose | CSA ENEC UR | Two Stage | Single Phase | 110 V 250 V | -25 °C 100 °C | 4.5 mH |
TE Connectivity Raychem Cable Protection | Wire Leads | 12 A | 400 Hz | Chassis Mount | General Purpose | CSA ENEC UR | Two Stage | Single Phase | 110 V 250 V | -25 °C 100 °C | 3.25 mH |
TE Connectivity Raychem Cable Protection | Quick Connect | 6 A | 400 Hz | Chassis Mount | General Purpose | CSA ENEC UR | Two Stage | Single Phase | 110 V 250 V | -25 °C 100 °C | 7.8 mH |
TE Connectivity Raychem Cable Protection | Threaded Post (M4) | 25 A | 400 Hz | Chassis Mount | General Purpose | CSA ENEC UR | Two Stage | Single Phase | 110 V 250 V | -25 °C 100 °C | 2 mH |
TE Connectivity Raychem Cable Protection | Quick Connect | 1 A | 400 Hz | Chassis Mount | General Purpose | CSA ENEC UR | Two Stage | Single Phase | 110 V 250 V | -25 °C 100 °C | 22 mH |
TE Connectivity Raychem Cable Protection | Terminal Block | 16 A | 400 Hz | Chassis Mount | General Purpose | CSA ENEC UR | Two Stage | Single Phase | 110 V 250 V | -25 °C 100 °C | 2.8 mH |
TE Connectivity Raychem Cable Protection | Wire Leads | 3 A | 400 Hz | Chassis Mount | General Purpose | CSA ENEC UR | Two Stage | Single Phase | 110 V 250 V | -25 °C 100 °C | 9.8 mH |
TE Connectivity Raychem Cable Protection | Quick Connect | 6 A | 400 Hz | Chassis Mount | Safety | CSA ENEC UR | Two Stage | Single Phase | 110 V 250 V | -25 °C 100 °C | 7.8 mH |
TE Connectivity Raychem Cable Protection | Quick Connect | 10 A | 400 Hz | Chassis Mount | Safety | CSA ENEC UR | Two Stage | Single Phase | 110 V 250 V | -25 °C 100 °C | 4.5 mH |
