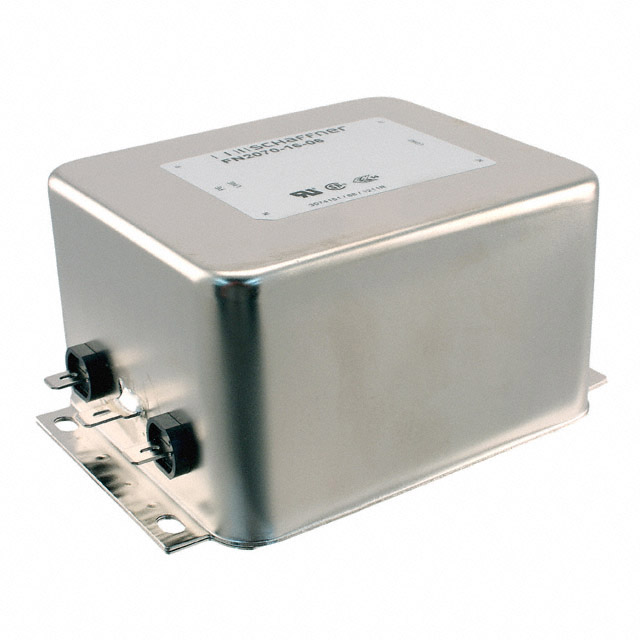

FN2070-16-06
ActiveTE Connectivity Raychem Cable Protection
LINE FILTER 110V/250VAC 16A CHAS
Deep-Dive with AI
Search across all available documentation for this part.
FN2070-16-06
ActiveTE Connectivity Raychem Cable Protection
LINE FILTER 110V/250VAC 16A CHAS
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | FN2070-16-06 |
|---|---|
| Applications | General Purpose |
| Approval Agency | CSA, ENEC, UR |
| Configuration | Two Stage |
| Current | 16 A |
| Filter Type | Single Phase |
| Frequency - Operating | 400 Hz |
| Inductance | 2.8 mH |
| Mounting Type | Chassis Mount |
| Operating Temperature [custom] | 100 °C, -25 °C |
| Termination Style | Quick Connect |
| Voltage - Rated AC | 250 V, 110 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 1 | $ 65.74 | |
| 10 | $ 63.55 | |||
| 30 | $ 61.35 | |||
| 40 | $ 59.16 | |||
| 80 | $ 57.06 | |||
Description
General part information
Schaffner FN2070 Series
Power Line Filters FN2070B-1-06
