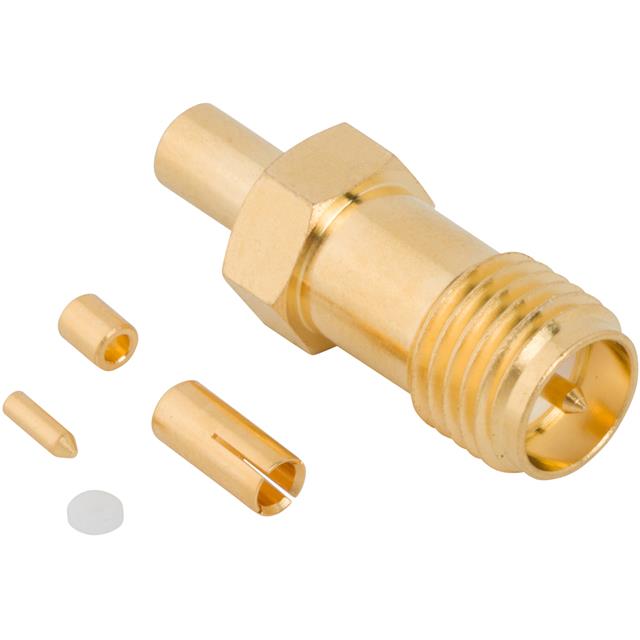

901-10777

Active

Amphenol RF

CONN SMA 0HZ TO 6GHZ 50OHM CRIMP/SOLDER ST CABLE MOUNT F GOLD BAG

Deep-Dive with AI

Search across all available documentation for this part.

901-10777

Active

Amphenol RF

CONN SMA 0HZ TO 6GHZ 50OHM CRIMP/SOLDER ST CABLE MOUNT F GOLD BAG

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	901-10777

Body Finish	Gold
Body Material	Brass
Cable Group	1.37mm Coaxial Cable
Center Contact Material	Beryllium Copper
Center Contact Plating	Gold
Connector Style	RP-SMA
Connector Type	Male Pin, Jack
Contact Termination	Solder
Dielectric Material	Polytetrafluoroethylene (PTFE)
Frequency - Max [Max]	6000 MHz
Housing Color	Gold
Impedance	50 Ohms
Mating Cycles	500
Mounting Type	Free Hanging (In-Line)
Number of Ports	1
Operating Temperature [Max]	165 °C
Operating Temperature [Min]	-65 ░C
Shield Termination	Crimp
Voltage Rating	335 V

901-10 Series

...

Part	Voltage Rating	Connector Type	Body Material	Shield Termination	Number of Ports	Center Contact Plating	Frequency - Max [Max]	Impedance	Dielectric Material	Connector Style	Housing Color	Mounting Type	Center Contact Material	Mating Cycles	Operating Temperature [Min]	Operating Temperature [Max]	Contact Termination	Cable Group	Body Finish	Mounting Feature	Cable Group [diameter]	Adapter Type	Style	Adapter Series	Fastening Type	Center Gender	Convert To (Adapter End)	Convert From (Adapter End)	Conversion Type	Ingress Protection	Includes	Cable Group	Insertion Loss	Includes
Amphenol RF 901-10784	335 V	Female Socket Plug	Brass	Crimp	1	Gold	7.1 GHz	50 Ohms	Polytetrafluoroethylene (PTFE)	RP-SMA	Gold	45° Angle Free Hanging (In-Line)	Beryllium Copper	500	-65 ░C	165 °C	Solder	1.13mm Coaxial Cable	Gold
Amphenol RF 901-10752	335 V	Female Socket Jack	Brass	Crimp	1	Gold	6000 MHz	50 Ohms	Polytetrafluoroethylene (PTFE)	SMA	Gold		Beryllium Copper	500	-65 ░C	165 °C	Solder		Gold	Bulkhead - Front Side Nut	0.81 mm
Amphenol RF 901-10007			Beryllium Copper Stainless Steel			Gold	4 GHz	50 Ohms	Polytetrafluoroethylene (PTFE)			Free Hanging (In-Line)	Brass		-40 °C	155 °C			Gold; Passivated			Plug to Plug	Straight	SMA to 1.0/2.3	Snap-On Threaded	Male to Male	1.0/2.3 Plug Male Pin	SMA Plug Male Pin	Between Series
Amphenol RF 901-10803	335 V	Jack Male Pin	Brass	Crimp	1	Gold	7.1 GHz	50 Ohms	Polytetrafluoroethylene (PTFE)	RP-SMA	Gold		Beryllium Copper	500	-65 ░C	165 °C	Solder	RG-178	Gold	Bulkhead - Front Side Nut										IP67 - Dust Tight Waterproof
Amphenol RF 901-10165		Female Socket Jack	Brass	Crimp	1	Gold	3 GHz	50 Ohms	Polytetrafluoroethylene (PTFE)	SMA	Gold		Beryllium Copper Brass	500	-65 ░C	165 °C	Solder	Coaxial Cable	Gold	Bulkhead - Front Side Nut											1 Connector 1 Contact 1 Nut 1 Sleeve 2 Insulators	1.32 mm
Amphenol RF 901-10416		Female Socket Jack	Zinc Die Cast	Solder	1	Gold	2 GHz	50 Ohms	Liquid Crystal Polymer (LCP)	SMA	Gold	Through Hole Right Angle	Beryllium Copper	1000	-65 ░C	165 °C	Solder		Tin														0.25 dB
Amphenol RF 901-10107		Male Pin Plug	Brass	Crimp	1	Gold	6000 MHz	50 Ohms	Polytetrafluoroethylene (PTFE)	SMA	Gold	Free Hanging (In-Line)	Brass	500	-65 ░C	165 °C	Solder	1.13mm Coaxial Cable	Gold															1 pcs 1 pcs 1 pcs 1 pcs 1 pcs
Amphenol RF 901-10769		Jack Male Pin	Brass	Crimp	1	Gold	6000 MHz	50 Ohms	Polytetrafluoroethylene (PTFE)	RP-SMA	Gold		Beryllium Copper	500	-65 ░C	165 °C	Solder		Gold	Bulkhead - Rear Side Nut	0.81 mm
Amphenol RF 901-10151		Female Socket Jack	Stainless Steel	Solder	1	Gold	6000 MHz	50 Ohms	Polytetrafluoroethylene (PTFE)	SMA	Silver		Beryllium Copper	500	-65 ░C	165 °C	Solder			Flange
Amphenol RF 901-10777	335 V	Jack Male Pin	Brass	Crimp	1	Gold	6000 MHz	50 Ohms	Polytetrafluoroethylene (PTFE)	RP-SMA	Gold	Free Hanging (In-Line)	Beryllium Copper	500	-65 ░C	165 °C	Solder	1.37mm Coaxial Cable	Gold

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Arrow	N/A	1	$ 6.85
Digikey	Bag	1	$ 12.44
		10	$ 11.03
		25	$ 10.60
		50	$ 10.18
		100	$ 9.62
		250	$ 8.77
		500	$ 8.20
		1000	$ 7.52

Description

General part information

901-10 Series

RP-SMA Connector Jack, Male Pin 50 Ohms Free Hanging (In-Line) Solder

Documents

Technical documentation and resources

No documents available
